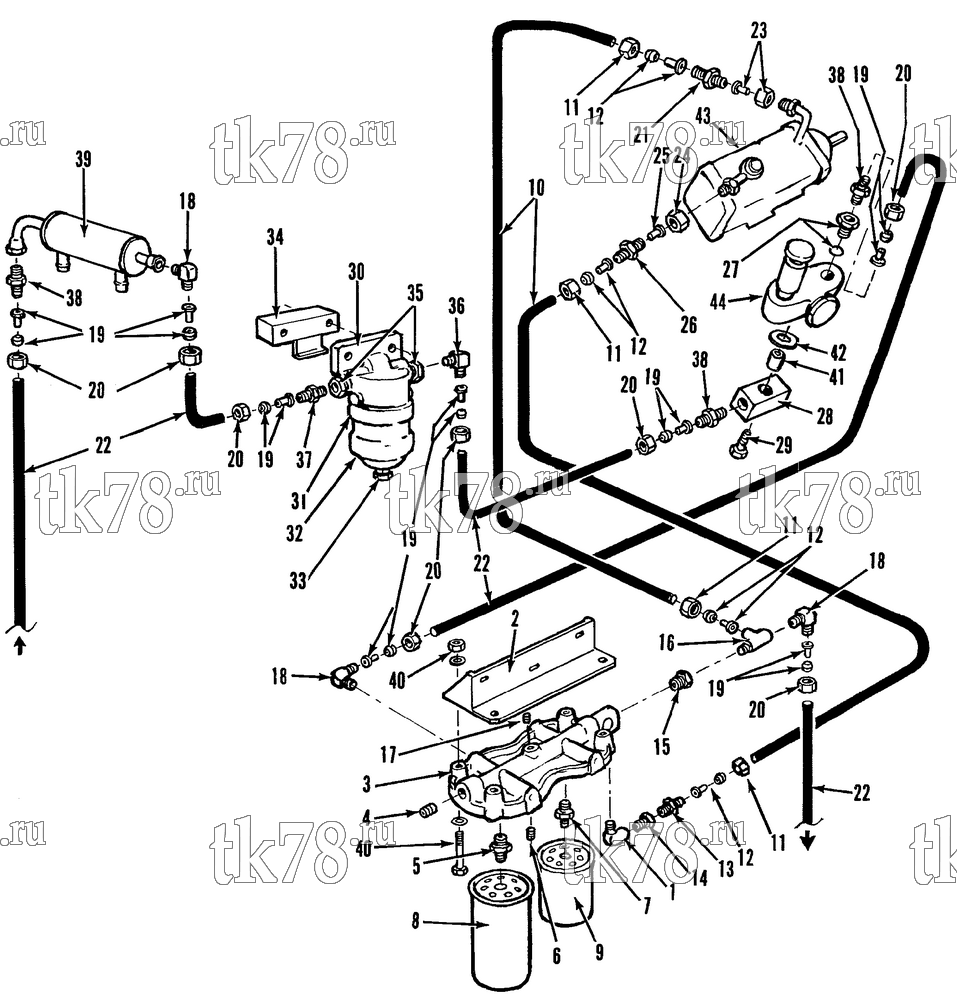

Установкa Thermo King CG-II M12 Prepared for Sea Container схема FUEL FILTERS, HOSES & HEATER – 84A13
Обновление от: 2/27/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-4244 | ELBOW | 1 | |
| 2 | 99-9759 | BRACKET - filter | 1 | |
| 55-1587 | SCREW - bracket (1/4-20 x 3/4) | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 3 | 11-5294 | BRACKET - fuel filter | 1 | |
| 4 | 55-193 | PLUG | 1 | |
| 5 | 55-3403 | ADAPTER - filter | 1 | |
| 6 | 55-1004 | PLUG - pipe | 1 | |
| 7 | 55-3168 | ADAPTER | 1 | |
| 8 | 11-9097 | FILTER - fuel (primary) | 1 | |
|
10-11-9097 | Топливный фильтр, Primary | 2 750 ₽ |
|
| 9 | 11-9098 | FILTER - fuel (secondary) | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 10 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 11 | 11-4841 | NUT - fuel hose (1/4) | 4 | |
| 12 | 10-243 | KIT - sleeve & eyelet (1/4) | 4 | |
| 13 | 11-4838 | CONNECTOR - hose fitting (1/4) | 1 | |
| 14 | 55-5023 | BUSHING - orifice | 1 | |
| 15 | 55-4799 | BUSHING - orifice | 1 | |
| 16 | 11-5321 | TEE - hose fitting (1/4) | 1 | |
| 17 | 55-433 | PLUG | 1 | |
| 18 | 11-4380 | ELBOW - hose fitting (3/8) | 3 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 19 | 10-242 | KIT - sleeve & eyelet (3/8) | 4 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 20 | 11-4941 | NUT - hose fitting (3/8) | 4 | |
| 21 | 11-5927 | CONNECTOR - hose fitting (1/4) | 1 | |
| 22 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 23 | 11-5926 | NUT (1/4) | 1 | |
| 11-5981 | SLEEVE (1/4) | 1 | ||
| 24 | 11-5319 | NUT - fitting (1/2) | 1 | |
| 25 | 11-5318 | SLEEVE | 1 | |
| 26 | 11-5317 | CONNECTOR - hose (3/16 x 1/4) | 1 | |
| 27 | 11-4381 | ADAPTER - engine | 2 | |
| 55-1922 | WASHER - adapter | 2 | ||
|
10-55-1922 | Уплотнтель WASHER, PIPE JOINT | 690 ₽ |
|
| 28 | 11-6321 | BLOCK - fuel | 1 | |
| 55-433 | PLUG - pipe | 1 | ||
| 29 | 55-2034 | BOLT - hollow (block) | 1 | |
| 30 | 11-4930 | FILTER - sedimenter | 1 | |
| 31 | 11-4976 | RING - sealing (top) | 1 | |
| 32 | 11-4975 | BOWL - glass | 1 | |
| 11-4977 | RING - sealing (bowl) | 2 | ||
| 33 | 11-4978 | SCREW - drain | 2 | |
| 55-3089 | SCREW | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-4954 | NUT (stop) | 2 | ||
| 34 | 99-9269 | BRACKET - sediment bowl | 1 | |
| 55-5406 | SCREW - bracket | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 35 | 55-452 | COUPLING | 2 | |
| 55-2528 | GASKET - coupling | 2 | ||
| 36 | 11-5607 | ELBOW (3/8) | 1 | |
| 37 | 11-5623 | FITTING (3/8) | 1 | |
| 38 | 55-4515 | CONNECTOR - hose (3/8) | 3 | |
| 55-6163 | CLAMP - fuel heater | 2 | ||
| 55-5090 | SCREW - clamp | 2 | ||
| 39 | 11-6246 | HEATER - fuel | 1 | |
| 40 | 55-3565 | SCREW - bracket | 4 | |
| 55-2958 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-2114 | NUT | 4 | ||
| 41 | 11-2854 | FILTER - screen | 1 | |
| 42 | 55-1922 | WASHER | 1 | |
|
|
10-55-1922 | Уплотнтель WASHER, PIPE JOINT | 690 ₽ |
|
