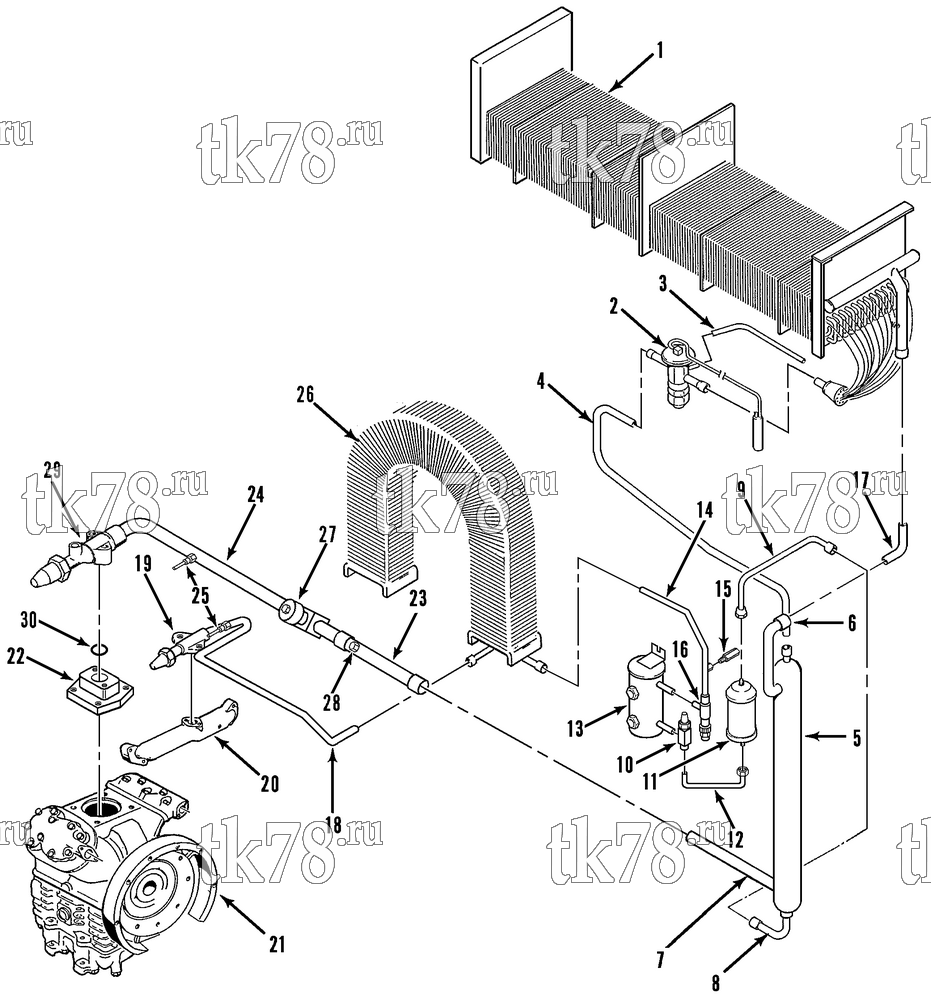

Установкa Thermo King CF-III M9, M9A, M9B & M9C Prepared for Hapag Lloyd схема REFRIGERATION COMPONENTS (M9B, M9C) – 111G5
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1272 | COIL - evaporator | 1 | |
| 2 | 66-5365 | VALVE - expansion | 1 | |
| 66-633 | ELEMENT - power | 1 | ||
| 66-9378 | SCREEN - inlet | 1 | ||
| 91-1874 | BRACKET - valve | 1 | ||
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-5211 | U-BOLT - valve | 1 | ||
| 55-2001 | FLATWASHER - U-bolt | 2 | ||
| 55-4560 | NUT - u-bolt | 2 | ||
| 3 | 66-5367 | TUBE - equalizer | 1 | |
| 4 | 66-5366 | TUBE - exchanger to expansion valve | 1 | |
| 5 | 67-1073 | HEAT EXCHANGER (complete, incl 6, 7, 8) | 1 | |
| 99-8949 | CLAMP - heat exchanger | 2 | ||
| 55-5639 | SCREW - clamp | 4 | ||
| 6 | 66-4537 | TUBE - exchanger to coil | 1 | |
| 7 | 66-6403 | TUBE - suction (exchanger to modulation) | 1 | |
| 8 | 66-4466 | TUBE - liquid | 1 | |
| 9 | 66-4589 | TUBE - dehydrator to exchanger | 1 | |
| 10 | 66-5747 | VALVE - dehydrator inlet | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 11 | 66-9015 | DEHYDRATOR | 1 | |
| 55-2070 | GASKET - flare nut | 2 | ||
| 55-4390 | HANGER - dehydrator | 1 | ||
| 55-1587 | SCREW - hanger | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 55-3121 | SCREW - dehydrator | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 12 | 66-5746 | TUBE - receiver to dehydrator | 1 | |
| 55-302 | NUT - flare | 1 | ||
| 13 | 67-1149 | TANK - receiver | 1 | |
| 66-6870 | INDICATOR - liquid | 2 | ||
| 203-393 | SEALER - thread | A/R | ||
| 55-1587 | SCREW - tank | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 14 | 66-7001 | TUBE - condenser to receiver tank | 1 | |
| 66-3295 | FITTING | 1 | ||
| 15 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 16 | 66-7002 | VALVE - receiver inlet | 1 | |
| 17 | 66-4538 | TUBE - exchanger to coil | 1 | |
| 18 | 66-7005 | TUBE - valve to coil | 1 | |
| 91-2455 | BRACKET - tube support | 1 | ||
| 55-4127 | CLAMP - tube | 1 | ||
| 19 | 66-3942 | VALVE - service (discharge, see 102C4) | 1 | |
| 20 | 22-782 | MANIFOLD - discharge (X430) | 1 | |
| 55-6822 | BOLT - manifold | 4 | ||
| 55-6804 | FLATWASHER - sealing | 4 | ||
| 21 | 102-918 | COMPRESSOR - X430 (see 242F6) | 1 | |
| 22 | 22-836 | ADAPTER - suction valve | 1 | |
| 23 | 66-6143 | TUBE - exchanger to modulating | 1 | |
| 66-3615 | FITTING - saddle | 1 | ||
| 24 | 66-7003 | TUBE - suction | 1 | |
| 66-5752 | FITTING - header | 1 | ||
| 25 | 66-7004 | TUBE - fitting to gauge | 2 | |
| 26 | 67-1392 | COIL - condenser | 1 | |
| 27 | 66-7793 | VALVE - modulation (assembly) | 1 | |
| 66-7789 | VALVE (see 123A8) | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 28 | 11-2886 | VALVE - pressure | 1 | |
| 55-5672 | CAP - valve | 1 | ||
| 11-7777 | CORE - valve | 1 | ||
| 29 | 66-5318 | VALVE - service (suction, see 112F3) | 1 | |
| 66-5318 OEM | Всасывающий клапан X426/430/640 | 42 100 ₽ |
|
|
|
10-66-5318 | Всасывающий клапан X426/430/640 | 28 770 ₽ |
|
| 30 | 33-230 | O-RING - suction valve (1.875 id) | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
