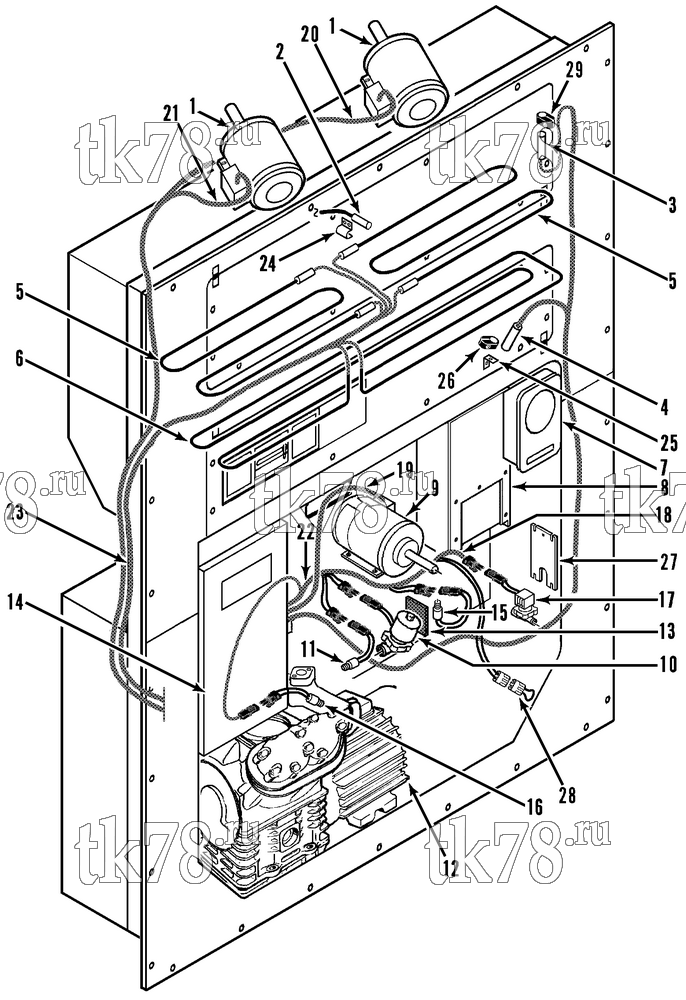

Установкa Thermo King CF-III M7E схема ELECTRICAL COMPONENTS – 124G11
Обновление от: 8/2/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-623 | MOTOR - evaporator fan (see 124G4) | 2 | |
| 2 | 44-9655 | SENSOR - defrost | 1 | |
| 3 | 44-9655 | SENSOR - return air | 1 | |
| 4 | 44-9655 | SENSOR - discharge air | 1 | |
| 5 | 45-1682 | HEATER - evaporator coil (see 124G5) | 2 | |
| 6 | 45-1683 | HEATER - drip pan (see 124G5) | 1 | |
| 7 | 45-1422 | THERMOMETER - recording (see 93F10) | 1 | |
| 8 | 45-1303 | TRANSFORMER (see 115E4) | 1 | |
| 9 | 104-613 | MOTOR - condenser fan (see 124G3) | 1 | |
| 10 | 66-7793 | VALVE - modulation (see 124G6) | 1 | |
| 11 | 41-1626 | SWITCH - hpco (see 120C6) | 1 | |
| 12 | 104-515 | MOTOR - compressor drive (see 119E3) | 1 | |
| 13 | 91-5660 | PAD - insulating (thermostat switch) | 1 | |
| 55-2977 | SCREW - pad | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 14 | NSS | BOX - control (see 124G8) | 1 | |
| 15 | 41-309 | SWITCH - thermostat | 1 | |
| 16 | 44-5840 | SWITCH - 2 speed condenser fan (see 120C6) | 1 | |
| 17 | 66-6384 | VALVE - solenoid (liquid/refrigeration, see 116G10) | 1 | |
| 10-66-6384 | Соленоид, MD/RD-II / SB-III/ SMX/SMX-II/V-Series | 13 550 ₽ |
|
|
| 18 | 41-596 | HARNESS - liquid injection (for connectors see 115D14) | 1 | |
| 19 | 44-8850 | HARNESS - condenser motor | 1 | |
| 20 | 44-8838 | HARNESS - evaporator motor (#1) | 1 | |
| 21 | 44-8839 | HARNESS - evaporator motor (#2) | 1 | |
| 22 | 44-9285 | HARNESS - main (for connectors see 115D14) | 1 | |
| 23 | 44-8844 | HARNESS - heater | 1 | |
| 24 | 91-4234 | BRACKET - sensor | 1 | |
| 55-5639 | SCREW - bracket | 2 | ||
| 25 | 91-2203 | BRACKET - sensor | 1 | |
| 26 | 55-6389 | CLAMP - sensor | 2 | |
| 55-3031 | SCREW - clamp | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 27 | 91-2462 | BRACKET - sensor | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 28 | 44-8197 | CONNECTOR - jumper (water pressure switch) | 1 |
