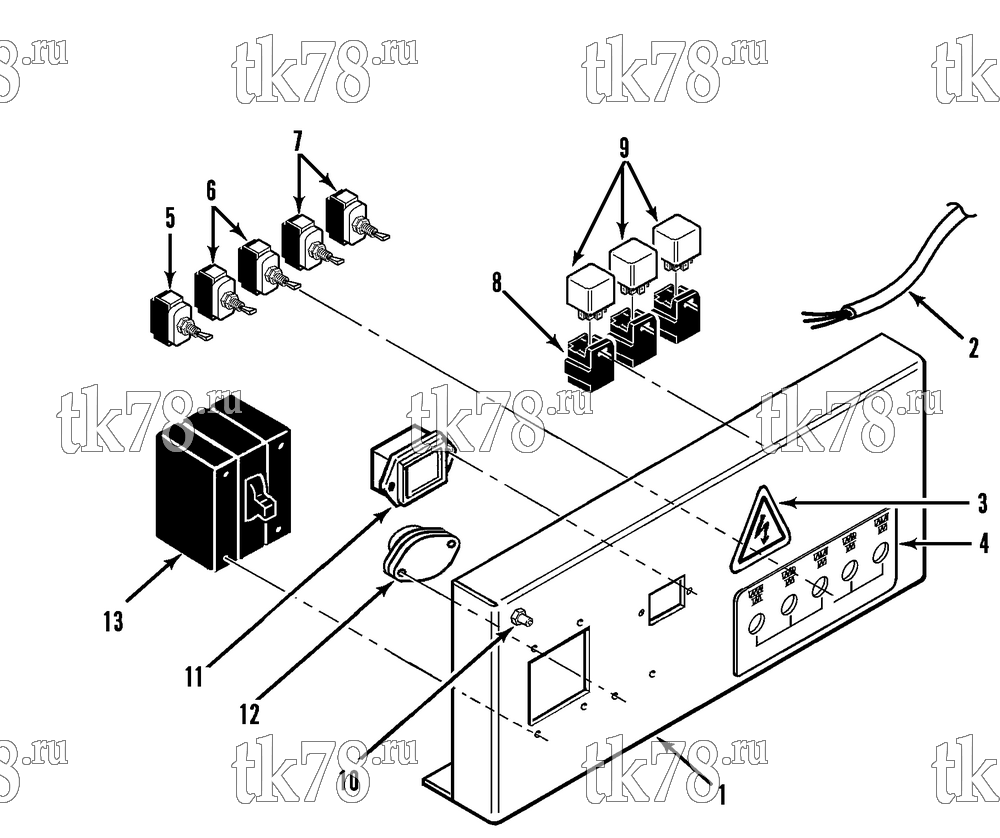

Установкa Thermo King CF-III M5 Series схема CIRCUIT BREAKER GROUP – 84G13
Обновление от: 10/6/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-711 | BRACKET - circuit breaker | 1 | |
| 55-2991 | SCREW - bracket | 3 | ||
| 55-3008 | WASHER - sealing | 3 | ||
| 2 | 44-7805 | HARNESS - circuit breaker (before 1/91) | 1 | |
| 44-8965 | HARNESS - circuit breaker (after 1/91) | 1 | ||
| 3 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 4 | 91-227 | NAMEPLATE - circuit breakers | 1 | |
| 5 | 44-6558 | BREAKER - circuit (CB1) | 1 | |
| 6 | 44-5996 | BREAKER - circuit (CB2, CB3) | 2 | |
| 7 | 44-6180 | BREAKER - circuit (CB4, CB5) | 2 | |
| 8 | 44-5537 | SOCKET - relay | 3 | |
| 55-3015 | SCREW - socket | 2 | ||
| 55-2964 | LOCKWASHER (#10) | 2 | ||
| 55-2001 | FLATWASHER (#10) | 2 | ||
| 9 | 44-9111 | RELAY | 3 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 10 | 44-5114 | POST - binding | 1 | |
| 11 | 44-5453 | HOURMETER | 1 | |
| 12 | 44-3280 | RECTIFIER - bridge | 1 | |
| 55-3256 | SCREW - hourmeter & rectifier | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 55-3013 | FLATWASHER (#6) | 4 | ||
| 55-2999 | NUT | 4 | ||
| 13 | 44-6949 | BREAKER - circuit (460V) | 1 | |
| 55-2997 | SCREW - breaker | 4 | ||
| 55-3014 | FLATWASHER | 4 | ||
| 55-3013 | LOCKWASHER | 4 |
