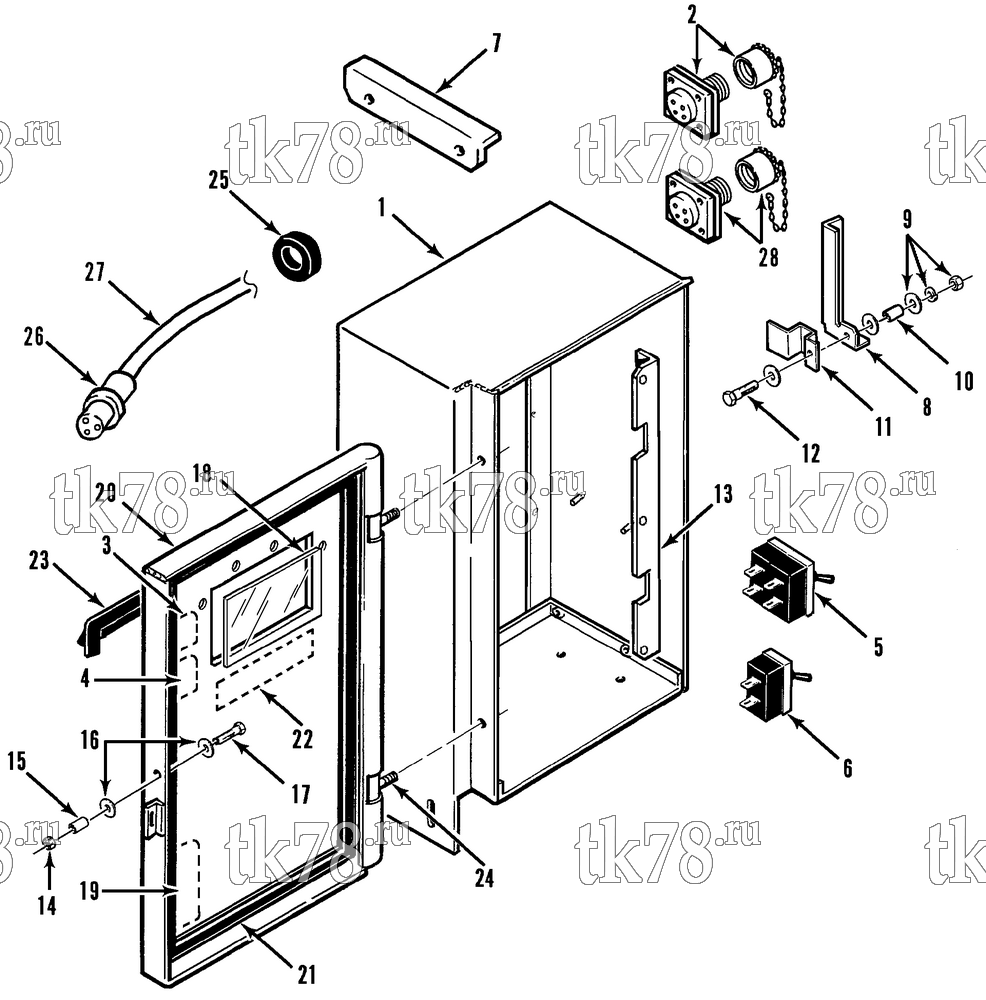

Установкa Thermo King CF-III M5 Series схема CONTROL BOX – 84G11
Обновление от: 1/11/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3331 | BOX - control (M5, M5A, M5B, M5C) | 1 | |
| 98-3764 | BOX - control (M5D) | 1 | ||
| 55-2996 | LOCKWASHER | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 2 | 44-6822 | SOCKET - monitoring (w/ cap) | 1 | |
| 204-209 | LEAD - thermistor | 1 | ||
| 55-4437 | SCREW | 4 | ||
| 55-2359 | FLATWASHER | 8 | ||
| 55-2360 | LOCKWASHER | 4 | ||
| 55-2361 | NUT | 4 | ||
| 3 | 91-1845 | NAMEPLATE - remote monitor connector | 1 | |
| 4 | 91-1846 | NAMEPLATE - discharge air connector | 1 | |
| 5 | 44-2368 | SWITCH - on/off (2pdt, before 1/91) | 1 | |
| 44-6560 | SWITCH - on/off (4pdt, after 1/91) | 1 | ||
| 6 | 44-2099 | SWITCH - defrost (1p) | 1 | |
| 44-739 | BOOT - switch | 2 | ||
| 7 | 99-8981 | ANGLE - control box | 1 | |
| 55-1587 | SCREW - box | 2 | ||
| 55-3028 | WASHER - sealing | 2 | ||
| 55-4953 | NUT | 2 | ||
| 8 | 99-8149 | LATCH - door | 1 | |
| 9 | 55-4953 | NUT | 1 | |
| 55-2086 | FLATWASHER | 3 | ||
| 55-2363 | LOCKWASHER | 1 | ||
| 10 | 99-8994 | SPACER - door latch | 1 | |
| 11 | 99-8993 | BRACKET - latch (door) | 1 | |
| 55-2991 | SCREW - bracket | 2 | ||
| 55-3008 | WASHER - sealing | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 12 | 55-2957 | SCREW - latch | 1 | |
| 13 | 91-180 | ANGLE - microcontroller | 1 | |
| 55-3059 | NUT - speed | 3 | ||
| 55-2991 | SCREW - angle | 2 | ||
| 55-3008 | WASHER - sealing | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUTSTRIP | 2 | ||
| 91-719 | COVER - control box (all except D, incl 14 thru 24) | 1 | ||
| 91-1847 | COVER - control box (M5D, incl 3, 4 & 14 thru 24) | 1 | ||
| 14 | 55-4953 | NUT | 1 | |
| 15 | 99-8162 | ROLLER - door latch | 1 | |
| 99-8151 | SPACER - door latch | 1 | ||
| 16 | 55-2086 | FLATWASHER | 2 | |
| 17 | 55-2977 | SCREW | 1 | |
| 18 | 91-178 | WINDOW - cover | 1 | |
| 19 | 99-9171 | NAMEPLATE - defrost on/off | 1 | |
| 20 | 91-177 | COVER - only (control box) | 1 | |
| 21 | 99-8986 | STRIP - gasket (25 ft) | A/R | |
| 22 | 99-9401 | NAMEPLATE - Lights Display | 1 | |
| 23 | 91-179 | SHIELD - light | 1 | |
| 55-3099 | SCREW - shield | 4 | ||
| 55-3008 | WASHER - sealing | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 24 | 99-7900 | ROD - cover | 2 | |
| 55-3473 | PIN - hinge | 2 | ||
| 55-4954 | NUT - cover | 2 | ||
| 55-2114 | NUT - cover | 2 | ||
| 55-3034 | WASHER - sealing | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 25 | 33-2749 | BUSHING - cable | 1 | |
| 26 | 44-4051 | PLUG - power (MIPCO) | 1 | |
| 41-1976 | PLUG - power (Minnekes) | 1 | ||
| 41-2820 | PLUG - power (ESL) | 1 | ||
| 44-9891 | TERMINAL - pin (cable end) | 3 | ||
| 44-6310 | TERMINAL - pin (plug end) | 4 | ||
| 27 | 45-1320 | CABLE - power (yellow) | 1 | |
| 28 | 44-6822 | SOCKET - monitoring (w/ cap, discharge air sensor, before 1/91) | 1 | |
| 44-2411 | SOCKET - monitoring (w/ cap, discharge air sensor, after 1/91) | 1 | ||
| 55-4437 | SCREW | 4 | ||
| 55-2359 | FLATWASHER | 8 | ||
| 55-2360 | LOCKWASHER | 4 | ||
| 55-2361 | NUT | 4 |
