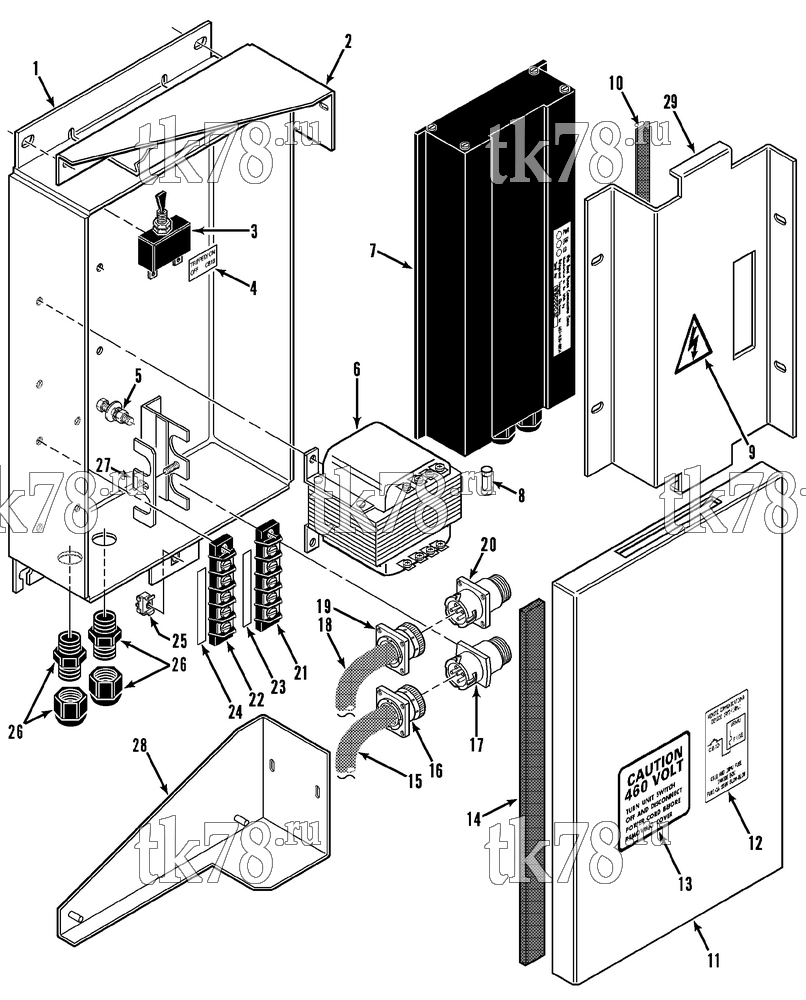

Установкa Thermo King CF-II M48.1 Prepared for Matson схема REMOTE MONITOR BOX – 134B11
Обновление от: 1/18/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-6806 | BOX - remote monitor | 1 | |
| 55-1587 | SCREW - box | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4953 | LOCKNUT | 4 | ||
| 2 | 91-6983 | BRACKET - box (upper) | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4953 | LOCKNUT | 2 | ||
| 3 | 44-6557 | BREAKER - circuit | 1 | |
| 4 | 91-6812 | NAMEPLATE - CB10 | 1 | |
| 5 | 55-2977 | SCREW - ground | 1 | |
| 55-2086 | FLATWASHER | 2 | ||
| 55-2993 | LOCKWASHER | 2 | ||
| 55-1801 | NUT | 2 | ||
| 6 | 41-1262 | TRANSFORMER | 1 | |
| 55-2989 | SCREW - transformer | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 7 | 41-1261 | MONITOR - remote | 1 | |
| 8 | 41-4643 | FUSE (2 amp) | 1 | |
| 9 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 10 | 99-7115 | STRIP - gasket (door, 25 ft) | A/R | |
| 11 | 91-6807 | COVER - box | 1 | |
| 55-2977 | SCREW - cover | 1 | ||
| 55-3319 | WASHER - sealing | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 12 | 91-6808 | NAMEPLATE - remote communications | 1 | |
| 13 | 99-5454 | NAMEPLATE - Caution 460 Volt | 1 | |
| 14 | 99-8986 | STRIP - gasket (25 ft) | A/R | |
| 15 | 41-1265 | HARNESS - low voltage (assembly) | 1 | |
| 16 | 41-1267 | FLANGE - mounting | 1 | |
| 17 | 41-1266 | PLUG - circular | 1 | |
| 18 | 41-1268 | HARNESS - high voltage | 1 | |
| 19 | 41-1267 | FLANGE - mounting | 1 | |
| 20 | 41-1269 | PLUG - circular | 1 | |
| 21 | 41-1264 | BOARD - terminal (6 terminal) | 1 | |
| 55-4487 | SCREW - board | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 22 | 41-1263 | BOARD - terminal (5 terminal) | 1 | |
| 23 | 91-6811 | MARKSTRIP | 1 | |
| 24 | 91-6810 | MARKSTRIP | 1 | |
| 25 | 55-3059 | NUT - captive | 1 | |
| 26 | 55-5111 | CONNECTOR - liquid tite | 2 | |
| 27 | 91-6809 | BRACKET - connector retaining | 1 | |
| 55-4953 | LOCKNUT - bracket | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 28 | 91-6984 | BRACKET - box (lower) | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4953 | LOCKNUT | 2 | ||
| 29 | 91-6805 | BRACKET - monitor | 1 | |
| 55-4953 | LOCKNUT - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 |
