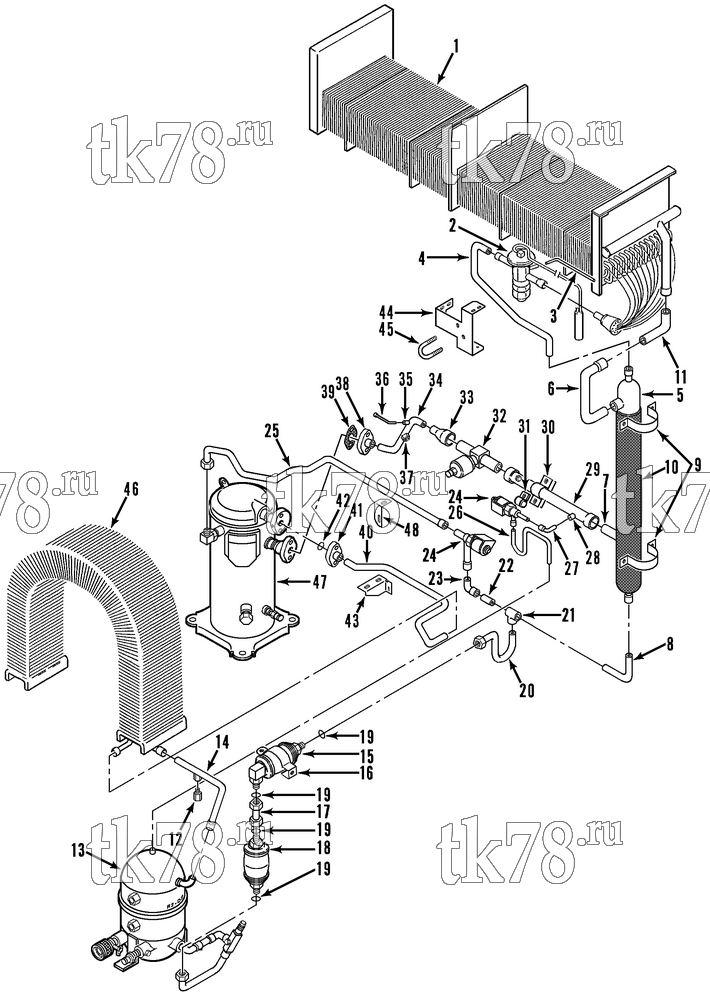

Установкa Thermo King CF-II M48.1 Prepared for Matson схема REFRIGERATION COMPONENTS – 133E10
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1272 | COIL - evaporator | 1 | |
| 2 | 66-7968 | VALVE - expansion | 1 | |
| 66-9378 | SCREEN - inlet | 1 | ||
| 66-3650 | ELEMENT - power | 1 | ||
| 3 | 66-5367 | TUBE - equalizer | 1 | |
| 4 | 66-5366 | TUBE - exchanger to expansion valve | 1 | |
| 5 | 67-1073 | HEAT EXCHANGER (incl 6, 7, 8) | 1 | |
| 6 | 66-4537 | TUBE - exchanger to coil | 1 | |
| 7 | 66-6403 | TUBE - suction | 1 | |
| 8 | 66-4466 | TUBE - liquid | 1 | |
| 91-6624 | CLAMP - exchanger | 2 | ||
| 55-3101 | RIVET - clamp | 4 | ||
| 10 | 91-6962 | INSULATION - exchanger | 1 | |
| 11 | 66-4538 | TUBE - exchanger to coil | 1 | |
| 66-7392 | VALVE - relief | 1 | ||
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 13 | 67-1026 | TANK - water cooled condenser (see 128C8) | 1 | |
| 14 | 66-6088 | TUBE - condenser to tank | 1 | |
| 15 | 66-8373 | DEHYDRATOR | 1 | |
| 16 | 55-4390 | HANGER - dehydrator | 1 | |
| 55-1587 | SCREW - hanger | 1 | ||
| 55-3121 | SCREW - dehydrator | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-4953 | LOCKNUT | 1 | ||
| 17 | 66-8375 | TUBE - filter to dehydrator | 1 | |
| 18 | 66-8374 | FILTER | 1 | |
| 19 | 33-1015 | O-RING (3/8) | 4 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 20 | 66-8372 | TUBE - dehydrator to tee | 1 | |
| 21 | 66-622 | TEE | 1 | |
| 22 | 66-8371 | TUBE - tee to elbow | 1 | |
| 23 | 55-2876 | ELBOW | 1 | |
| 24 | 60-327 | VALVE - solenoid (for connectors see 115D14) | 2 | |
| 41-767 | COIL - valve | 2 | ||
| 25 | 66-8370 | TUBE - liquid injection | 1 | |
| 26 | 66-8361 | TUBE - condenser to solenoid | 1 | |
| 27 | 55-3250 | ELBOW | 1 | |
| 28 | 66-4341 | COUPLING - reducing | 1 | |
| 29 | 66-8366 | TUBE - exchanger to valve | 1 | |
| 30 | 91-6554 | CLAMP - suction tube (plastic) | 1 | |
| 91-5790 | SPACER - clamp | 1 | ||
| 91-1779 | CLAMP - suction tube (stainless steel) | 1 | ||
| 55-4811 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1806 | LOCKWASHER | 2 | ||
| 31 | 55-6388 | CLAMP - tube (liquid injection) | 4 | |
| 55-2979 | SCREW - clamp | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4953 | LOCKNUT | 4 | ||
| 32 | 66-7789 | VALVE - modulating (see 123A8) | 1 | |
| 33 | 66-8365 | COUPLING - reducing | 1 | |
| 34 | 66-8363 | TUBE - coupling to flange | 1 | |
| 35 | 66-8364 | COUPLING - reducing | 1 | |
| 36 | 66-7359 | TUBE - gauge to fitting | 1 | |
| 37 | 66-4553 | FITTING - saddle | 1 | |
| 38 | 66-8362 | FLANGE - suction | 1 | |
| 55-3149 | SCREW - flange | 1 | ||
| 55-7469 | WASHER - belleville | 2 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-2640 | NUT | 2 | ||
| 39 | 33-2805 | GASKET - flange | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 40 | 66-8368 | TUBE - discharge to coil | 1 | |
| 41 | 66-266 | FLANGE - discharge | 2 | |
| 42 | 33-728 | O-RING - flange | 1 | |
| 33-728 OEM | Прокладка фланца компрессора, SB/URD-III / UT-800/1200 | 300 ₽ |
|
|
| 43 | 91-2455 | BRACKET - discharge tube | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4128 | CLAMP - tube | 1 | ||
| 44 | 91-1874 | BRACKET - expansion valve | 1 | |
| 45 | 55-5211 | U-BOLT - valve | 1 | |
| 55-4560 | NUT - u-bolt | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 46 | 67-1383 | COIL - condenser (see 134B4) | 1 | |
| 47 | 102-796 | COMPRESSOR - scroll (see 134B3) | 1 | |
| 48 | 91-7537 | BRACKET - injection tube | 1 | |
| 55-7013 | CLAMP | 1 | ||
| 55-3121 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | LOCKWASHER | 1 |
