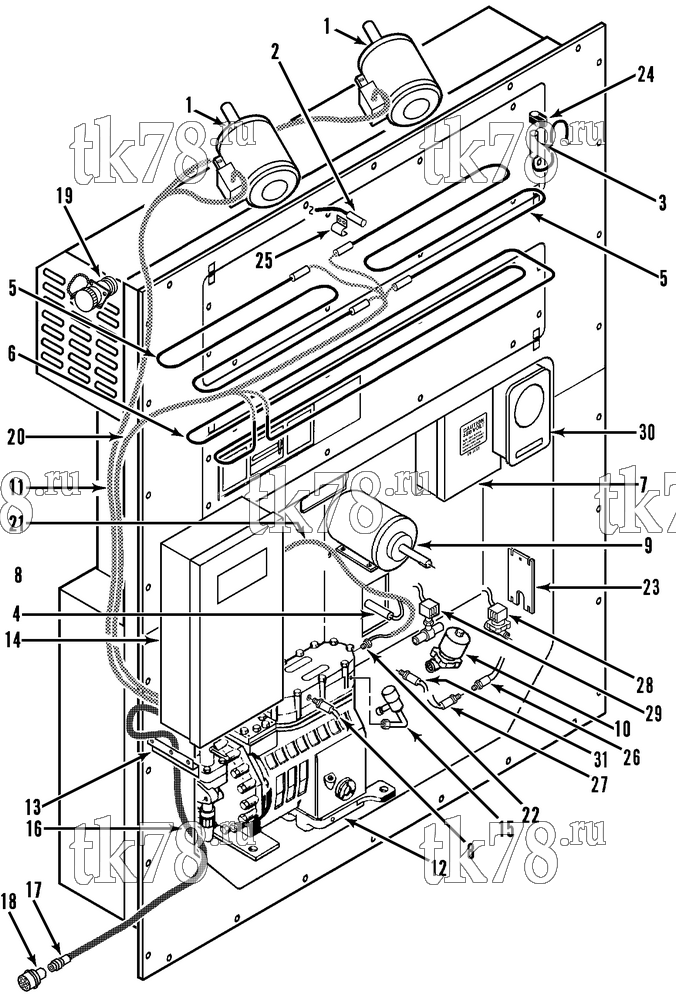

Установкa Thermo King CF-II M40 & M40.1 схема ELECTRICAL COMPONENTS – 126C5
Обновление от: 7/29/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-623 | MOTOR - evaporator fan (M40 see 126C9; M40.1 see 128C3) | 2 | |
| 2 | 44-6565 | SENSOR - defrost | 1 | |
| 3 | 41-1099 | SENSOR - return air | 1 | |
| 4 | 41-806 | SENSOR - discharge air | 1 | |
| 5 | 45-1682 | HEATER - evaporator coil (see 102B10) | 2 | |
| 6 | 45-1683 | HEATER - drip pan (see 102B10) | 1 | |
| 7 | 91-6806 | BOX - remote monitor (see 126C14) | 1 | |
| 8 | 41-1626 | SWITCH - hpco (see 126C7) | 1 | |
| 9 | 104-607 | MOTOR - condenser fan (see 126C10) | 1 | |
| 10 | 66-7865 | VALVE - modulation (for connectors see 115D14) | 1 | |
| 66-7981 | VALVE & COIL (see 123A8) | 1 | ||
| 11 | 44-8838 | HARNESS - evaporator motor (#1) | 1 | |
| 44-8839 | HARNESS - evaporator motor (#2) | 1 | ||
| 12 | 8102-743 | COMPRESSOR - service (see 133D7) | 1 | |
| 13 | 91-3238 | BRACKET - cable restraint | 1 | |
| 55-2977 | SCREW - bracket | 3 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 3 | ||
| 14 | NSS | BOX - control (see 126C4) | 1 | |
| 15 | 66-7798 | VALVE - solenoid (liquid refrigerant, for connectors see 115D14) | 1 | |
| 41-767 | COIL | 1 | ||
| 16 | 45-1320 | CABLE - power (69 ft) | 1 | |
| 17 | 33-2749 | BUSHING - cable | 1 | |
| 18 | 44-4051 | PLUG - power cable (MIPCO) | 1 | |
| 41-1976 | PLUG - power (Minnekes) | 1 | ||
| 41-2820 | PLUG - power (ESL) | 1 | ||
| 44-9891 | TERMINAL - pin (cable end) | 3 | ||
| 44-6310 | TERMINAL - pin (plug end) | 4 | ||
| 19 | 44-9249 | HARNESS - sensor (see 126E1) | 1 | |
| 20 | 44-8844 | HARNESS - heater | 1 | |
| 21 | 41-757 | HARNESS - main (for connectors see 115D14) | 1 | |
| 22 | 41-2447 | SENSOR - head temperature | 1 | |
| 23 | 91-2462 | BRACKET - sensor | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 24 | 55-6388 | CLAMP - sensor | 2 | |
| 55-2979 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 25 | 91-2197 | BRACKET - sensor | 1 | |
| 55-5639 | SCREW - bracket | 2 | ||
| 26 | 66-4687 | SWITCH - water valve (see 125G3) | 1 | |
| 27 | 44-6930 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 44-4258 | SWITCH - only | 1 | ||
| 28 | 66-7622 | VALVE - solenoid (see 124E2) | 1 | |
| 29 | 66-7750 | VALVE - solenoid | 1 | |
| 66-7725 | VALVE - solenoid (see 125B11) | 1 | ||
| 30 | 45-1673 | THERMOMETER - recording (see 56G6) | 1 | |
| 31 | 44-5840 | SWITCH - hpco | 1 | |
| 44-5841 | SWITCH - only | 1 |
