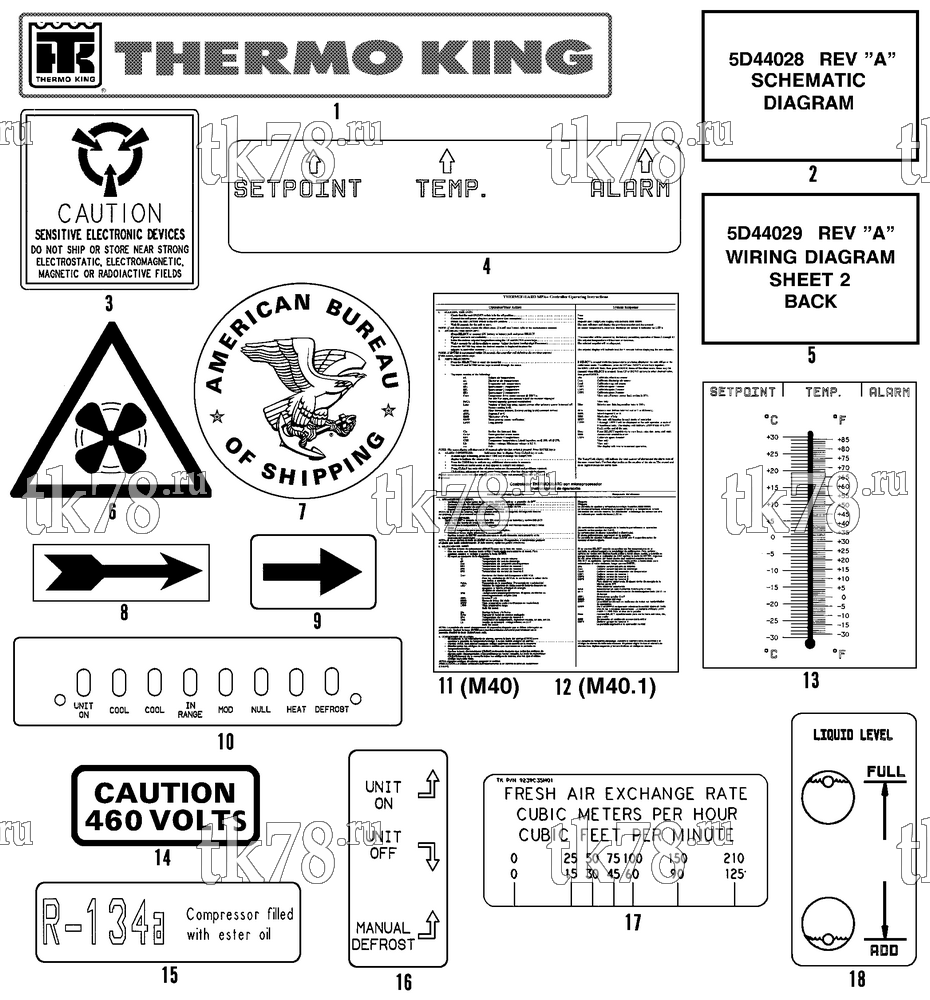

Установкa Thermo King CF-II M40 & M40.1 схема NAMEPLATES – 126C13
Обновление от: 3/12/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-5634 | NAMEPLATE - Thermo King | 1 | |
| 2 | 91-6447 | NAMEPLATE - Schematic diagram | 1 | |
| 3 | 91-4019 | NAMEPLATE - Caution, Sensitive Electronic Devices | 1 | |
| 4 | 99-9401 | NAMEPLATE - Lights Display | 1 | |
| 5 | 91-6448 | NAMEPLATE - Wiring Diagram | 1 | |
| 6 | 99-9234 | NAMEPLATE - Fan Universal | 1 | |
| 7 | 99-9534 | NAMEPLATE - American Bureau of Shipping | 1 | |
| 8 | 99-9084 | NAMEPLATE - arrow | 1 | |
| 9 | 91-5637 | NAMEPLATE - arrow | 1 | |
| 10 | 91-3254 | NAMEPLATE - Mode Lite Indicator | 1 | |
| 11 | 91-6904 | NAMEPLATE - Operating instructions (M40) | 1 | |
| 12 | 91-6918 | NAMEPLATE - Operating instructions (M40.1) | 1 | |
| 13 | 91-5635 | NAMEPLATE - Setpoint Temperature Alarm | 1 | |
| 14 | 99-3522 | NAMEPLATE - Caution 460 Volts | 1 | |
| 15 | 91-5640 | NAMEPLATE - R134a Compressor | 1 | |
| 16 | 91-5638 | NAMEPLATE - Unit On/Off | 1 | |
| 17 | 91-6672 | NAMEPLATE - Fresh air exchange | 1 | |
| 18 | 91-5636 | NAMEPLATE - Liquid Level | 1 |
