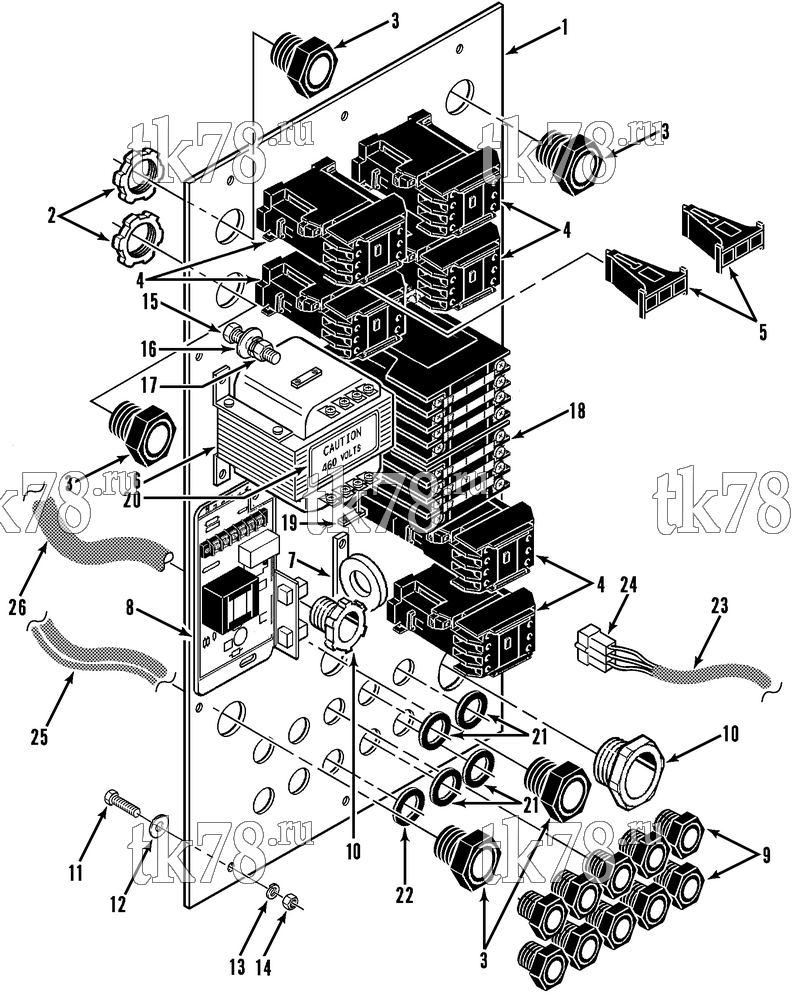

Установкa Thermo King CF-II M37, M37.1, M37.2, M37.3, M37.5, M37.6, M37.7 & M37.9 схема HIGH VOLTAGE TRAY (M37, M37.1, M37.2) – 117F7
Обновление от: 6/12/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-5623 | PANEL - high voltage | 1 | |
| 99-8982 | SEALER - tape (roll) | A/R | ||
| 2 | 55-5018 | NUT | 5 | |
| 3 | 55-2788 | FITTING - barb | 5 | |
| 4 | 44-8812 | CONTACTOR | 6 | |
| 55-3842 | SCREW - contactor | 12 | ||
| 55-2964 | LOCKWASHER | 12 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 5 | 44-8813 | INTERLOCK - contactor | 2 | |
| 6 | 44-8811 | TRANSFORMER | 1 | |
| 7 | 44-8832 | TRANSFORMER - current | 1 | |
| 55-3022 | SCREW - transformer | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 8 | 41-442 | MODULE - control (liquid injection) | 1 | |
| 55-3842 | SCREW - relay | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 9 | 55-5111 | CONNECTOR - cable | 10 | |
| 10 | 55-5885 | CONNECTOR - cable | 2 | |
| 11 | 55-1587 | SCREW - panel to box | 12 | |
| 12 | 55-3028 | WASHER - sealing | 12 | |
| 13 | 55-2086 | FLATWASHER | 12 | |
| 14 | 55-4953 | NUT (stop) | 12 | |
| 15 | 55-3000 | SCREW - ground | 3 | |
| 55-3008 | WASHER - sealing | 3 | ||
| 16 | 55-2996 | LOCKWASHER | 6 | |
| 55-2001 | FLATWASHER | 6 | ||
| 17 | 55-2965 | NUT (stop) | 6 | |
| 18 | 41-1971 | CONTACTOR - phase correction (see 119G3) | 1 | |
| 55-3842 | SCREW - contactor | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 19 | 44-3710 | JUMPER | 1 | |
| 20 | 99-3522 | NAMEPLATE - Caution 460 Volts | 1 | |
| 55-3842 | SCREW - transformer | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 21 | 33-1435 | GROMMET - connector | 4 | |
| 22 | 33-285 | GROMMET | 1 | |
| 23 | 41-452 | HARNESS - high voltage tray to microprocessor | 1 | |
| 24 | 41-453 | PLUG - 3 circuit (liquid injection module) | 1 | |
| 25 | 41-455 | HARNESS - main (for connectors see 115D14) | 1 | |
| 204-209 | LEAD - thermistor | 1 | ||
| 26 | 44-8844 | HARNESS - heater | 1 | |
| 11-3305 | SLEEVING - hose (25 ft, pvc) | A/R |
