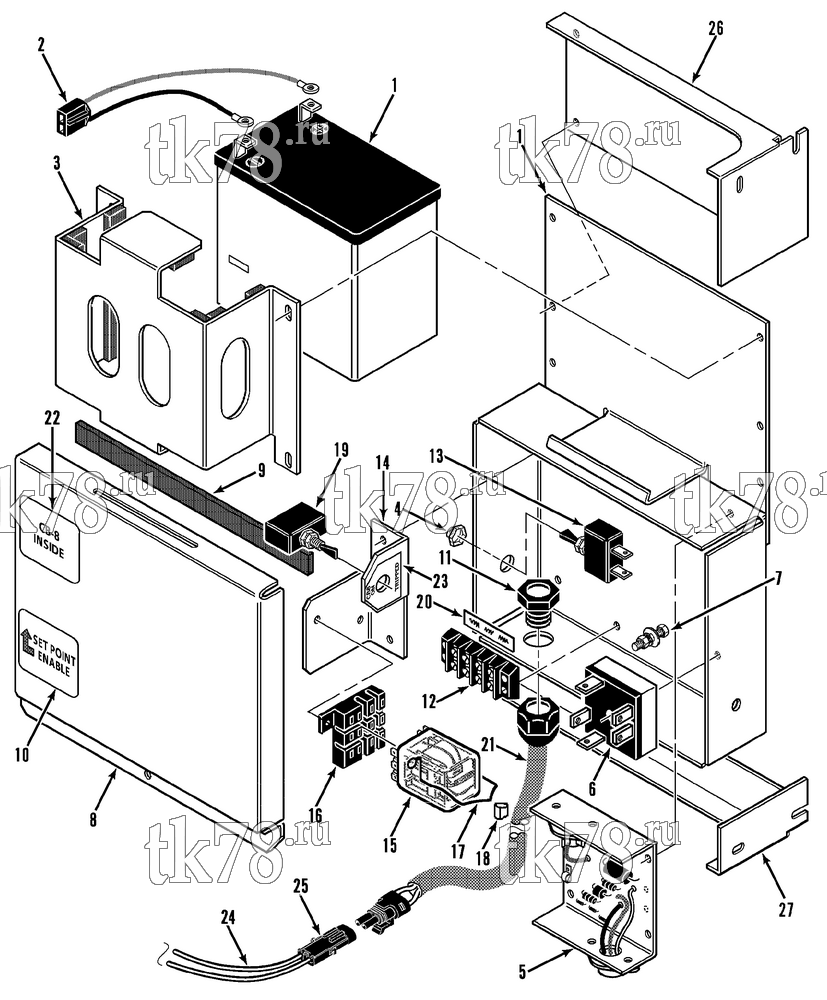

Установкa Thermo King CF-II M35 & M35A Prepared for Matson схема BATTERY GROUP (M35 & M35A) – 121G4
Обновление от: 2/4/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 203-525 | BATTERY & HARNESS | 1 | |
| 203-438 | BATTERY - lithium | 1 | ||
| 2 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 3 | 91-1264 | HOLDER - battery | 1 | |
| 99-5966 | STRIP (neoprene, 1.0 in wide x 50 ft) | A/R | ||
| 55-2977 | SCREW - holder | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 4 | 44-739 | BOOT - switch | 1 | |
| 5 | 44-6591 | CHARGER - battery | 1 | |
| 6 | 44-6553 | TIMER - solid state | 1 | |
| 55-4148 | SCREW - timer | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-3008 | WASHER - sealing | 1 | ||
| 55-4560 | NUT | 1 | ||
| 7 | 55-3000 | SCREW - ground | 1 | |
| 55-3008 | WASHER - sealing | 4 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 2 | ||
| 8 | 91-2492 | COVER - box | 1 | |
| 55-7470 | SCREW - cover | 1 | ||
| 55-3319 | WASHER - sealing | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-3059 | NUT - captive | 1 | ||
| 9 | 99-8986 | STRIP - gasket (0.75 in wide x 25 ft) | A/R | |
| 99-2221 | STRIP - gasket (1.5 in wide x 50 ft) | A/R | ||
| 10 | 91-2493 | NAMEPLATE - setpoint enable | 1 | |
| 11 | 55-5111 | CONNECTOR - liquid tite | 1 | |
| 12 | 44-5534 | BOARD - terminal | 1 | |
| 55-5070 | SCREW - terminal board | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-4156 | WASHER - sealing | 2 | ||
| 55-5754 | NUT | 2 | ||
| 13 | 44-6559 | SWITCH - setpoint enable | 1 | |
| 14 | 91-2491 | ANGLE - relay | 1 | |
| 55-2269 | SCREW - angle | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-3008 | WASHER - sealing | 2 | ||
| 55-4560 | NUT | 2 | ||
| 15 | 44-3186 | RELAY (3pdt) | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 16 | 44-3184 | SOCKET - relay | 1 | |
| 17 | 99-2027 | SPRING - holddown | 1 | |
| 18 | 55-2771 | CLAMP - speednut | 1 | |
| 19 | 44-6557 | BREAKER - circuit | 1 | |
| 91-3241 | NAMEPLATE - CB-8 on/tripped | 1 | ||
| 20 | 91-3240 | MARKSTRIP | 1 | |
| 21 | 41-734 | HARNESS - battery charger | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 22 | 91-3253 | NAMEPLATE - CB-8 inside | 1 | |
| 23 | 91-3241 | NAMEPLATE - circuit breaker | 1 | |
| 24 | 91-6146 | HARNESS - battery | 1 | |
| 25 | 44-5835 | CONNECTOR (male) | 1 | |
| 44-5883 | TERMINAL - male (18-20 ga) | 1 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 1 | ||
| 26 | 91-6147 | BRACKET - charger (top) | 1 | |
| 27 | 91-6148 | BRACKET - charger (bottom) | 1 | |
| 55-4953 | NUT - bracket | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 28 | 91-3239 | BRACKET & BOX - battery | 1 |
