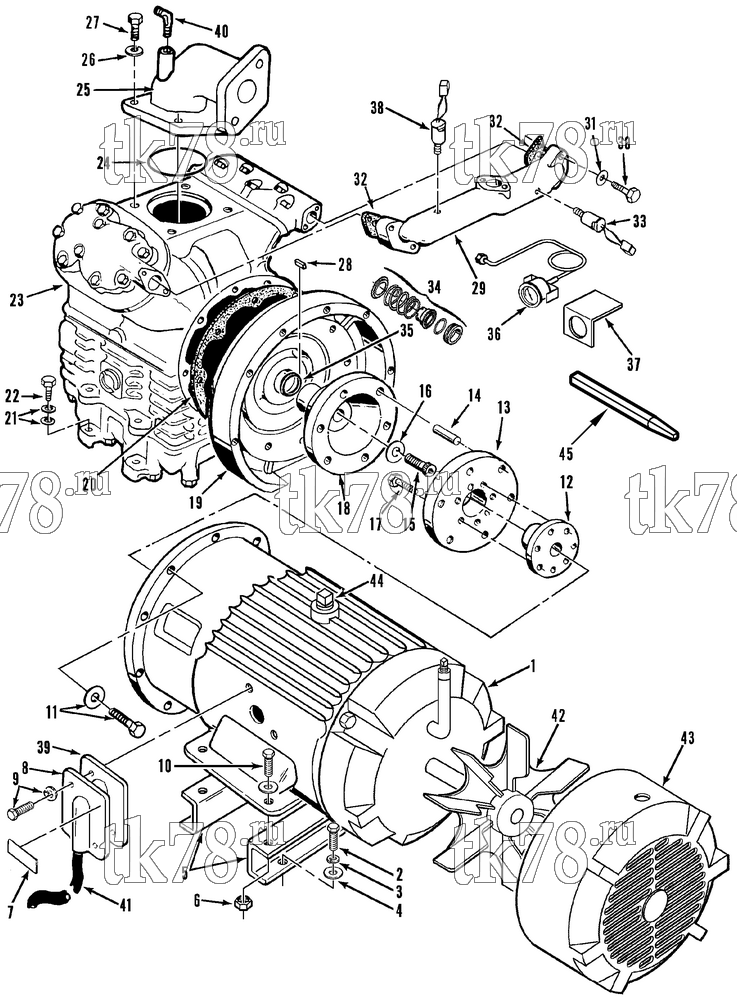

Установкa Thermo King CF-II M35 & M35A Prepared for Matson схема POWER TRAY GROUP & GAUGES – 102B5
Обновление от: 2/25/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-515 | MOTOR - compressor drive (10hp, incl 39, 42, 43, 44) | 1 | |
| 77-1895 | BEARING (drive end) | 1 | ||
| 77-1896 | BEARING (opposite drive end) | 1 | ||
| 2 | 55-3089 | SCREW - bracket to frame | 4 | |
| 3 | 55-2959 | LOCKWASHER | 4 | |
| 4 | 55-4727 | FLATWASHER | 4 | |
| 5 | 91-4076 | BRACKET - motor | 2 | |
| 6 | 55-4955 | NUT - motor | 4 | |
| 7 | 99-6908 | NAMEPLATE - Voltage (220/230) | 1 | |
| 8 | 91-1340 | PLATE - cover | 1 | |
| 9 | 55-3021 | SCREW - plate | 2 | |
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2993 | LOCKWASHER - internal threaded | 1 | ||
| 10 | 55-2961 | SCREW - motor | 4 | |
| 55-2641 | FLATWASHER | 8 | ||
| 11 | 55-2683 | SCREW - motor to compressor | 6 | |
| 55-2363 | LOCKWASHER | 6 | ||
| 12 | 77-1002 | HUB | 1 | |
| 13 | 77-1286 | PLATE - drive coupling | 1 | |
| 14 | 55-1123 | PIN - dowel | 6 | |
| 55-1123 OEM | Палец втулки муфты сцепления | 1 900 ₽ |
|
|
| 15 | 55-4316 | SCREW - coupling to compressor | 1 | |
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 16 | 77-2498 | SPACER | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 17 | 55-3675 | SCREW - plate to motor | 3 | |
| 55-1800 | LOCKWASHER | 3 | ||
| 18 | 77-809 | COUPLING - compressor drive | 1 | |
| 77-2856 | BUSHING - coupling | 6 | ||
|
10-77-2856 | Втулка муфты сцепления | 1 080 ₽ |
|
|
PP-77-2856 | Втулка муфты сцепления | 490 ₽ |
|
| 19 | 22-693 | HOUSING - drive coupling | 1 | |
| 55-878 | SCREW - housing | 9 | ||
| 30-55-878 | Болт головки цилиндров компрессора | 680 ₽ |
|
|
| 55-896 | FLATWASHER | 9 | ||
| 20 | 33-2513 | GASKET - housing to compressor | 1 | |
|
10-33-2513 | Прокладка передней крышки, X418/426/430/640 | 1 450 ₽ |
|
| PP-33-2513 | Прокладка передней крышки, X418/426/430/640 | 500 ₽ |
|
|
| 21 | 55-2959 | LOCKWASHER | 4 | |
| 55-4727 | FLATWASHER | 4 | ||
| 22 | 55-2969 | SCREW - compressor | 4 | |
| 23 | 102-514 | COMPRESSOR - X430 (complete, ASQ) | 1 | |
| 102-518 | COMPRESSOR - X430 (complete, ASQ) | 1 | ||
| 102-918 | COMPRESSOR - X430 (see 242F6) | 1 | ||
| 24 | 33-1221 | O-RING | 1 | |
|
10-33-1221 | О-ринг под клапан - регулятор давления | 280 ₽ |
|
| 25 | 22-711 | ADAPTER - compressor suction | 1 | |
| 26 | 55-2641 | FLATWASHER | 4 | |
| 27 | 55-2683 | SCREW - adapter | 4 | |
| 28 | 55-9024 | KEY - crankshaft | 1 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 29 | 22-782 | MANIFOLD - discharge | 1 | |
| 30 | 55-6822 | SCREW - manifold | 4 | |
| 31 | 55-6804 | WASHER - sealing | 4 | |
| 32 | 33-2805 | GASKET - manifold | 2 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 33 | 44-5833 | SWITCH - hpco | 1 | |
| 44-5834 | SWITCH - only | 1 | ||
| 34 | 22-1100 | SEAL - crankshaft | 1 | |
| US-22-1100 | Сальник коленвала, X426/X430/X640/Scroll T-Series (R404A) | 46 220 ₽ |
|
|
|
10-22-1100 | Сальник коленвала, X426/X430/X640/Scroll T-Series (R404A) | 16 400 ₽ |
|
|
PP-22-1100 | Сальник коленвала, X426/X430/X640/Scroll T-Series (R404A) | 8 700 ₽ |
|
| 35 | 33-2120 | SEAL - oil | 1 | |
| 10-33-2120 | Сальник крышки компрессора X426/430/640 | 1 690 ₽ |
|
|
| PP-33-2120 | Сальник крышки компрессора X426/430/640 | 480 ₽ |
|
|
| 36 | 66-5755 | GAUGE - compound | 1 | |
| 37 | 99-9402 | BRACKET - gauge | 1 | |
| 55-2991 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 38 | 44-5840 | SWITCH - condenser fan (2 speed) | 1 | |
| 44-5841 | SWITCH - only | 1 | ||
| 39 | 33-2446 | GASKET - cover plate | 1 | |
| 40 | 11-5513 | VALVE | 1 | |
| 55-1983 | CAP - valve | 1 | ||
| 11-7777 | CORE - valve | 1 | ||
| 33-768 | GASKET - flare | 1 | ||
| 41 | 91-3552 | HOSE - pvc | 1 | |
| 42 | 77-2156 | FAN - motor | 1 | |
| 43 | 77-2226 | COVER - motor | 1 | |
| 44 | 55-3505 | SCREW | 1 | |
| 45 | 204-972 | TOOL - keyway alignment | 1 |
