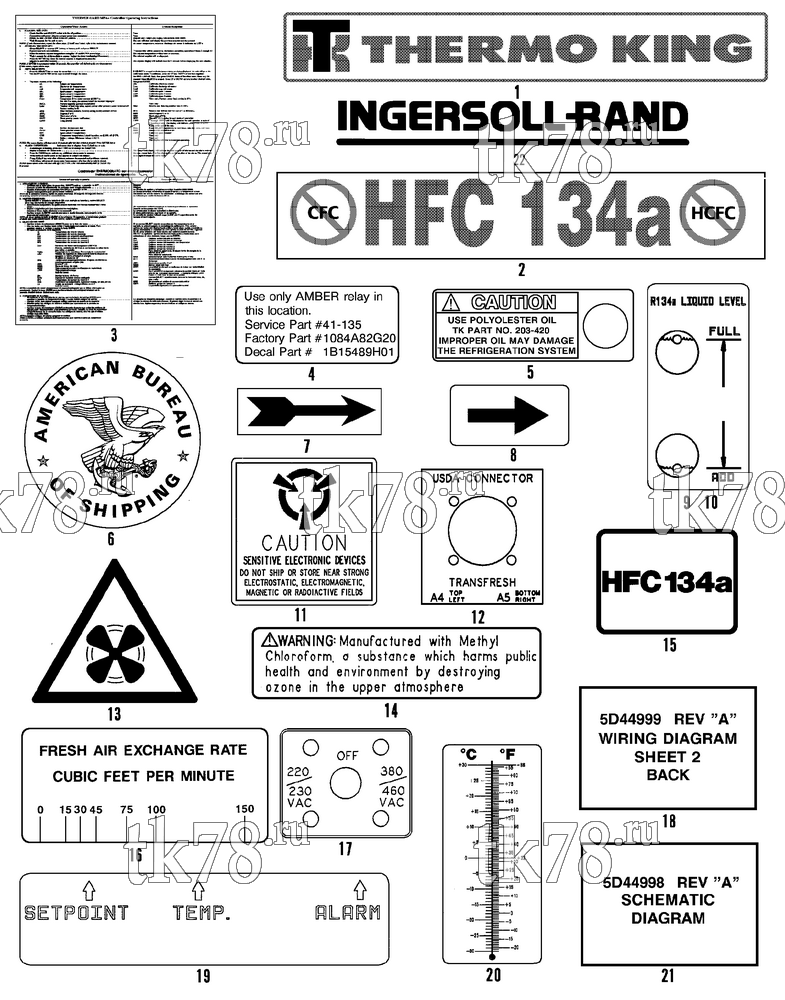

Установкa Thermo King CF-II M32E, M32F, M32G & M32H схема NAMEPLATES – 126G14
Обновление от: 8/5/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-7104 | NAMEPLATE - Thermo King | 1 | |
| 2 | 91-4250 | NAMEPLATE - HFC 134a | 1 | |
| 3 | 91-6671 | NAMEPLATE - Operating instructions | 1 | |
| 4 | 91-5624 | NAMEPLATE - Amber Relay | 1 | |
| 5 | 91-5464 | NAMEPLATE - Caution, Use polyol ester oil 203-420 | 1 | |
| 6 | 99-9534 | NAMEPLATE - American Bureau of Shipping | 1 | |
| 7 | 99-9084 | NAMEPLATE - arrow | 1 | |
| 8 | 99-6783 | NAMEPLATE - arrow | 1 | |
| 9 | 91-5316 | NAMEPLATE - R134a liquid level | 1 | |
| 10 | 99-9358 | NAMEPLATE - R12 Liquid Level | 1 | |
| 11 | 91-4019 | NAMEPLATE - Caution, Sensitive Electronic Devices | 1 | |
| 12 | 91-5547 | NAMEPLATE - USDA connectors | 1 | |
| 13 | 99-9234 | NAMEPLATE - Fan Universal | 1 | |
| 14 | 91-5294 | NAMEPLATE - Warning, Methyl Chloroform | 1 | |
| 15 | 91-4249 | NAMEPLATE - HFC 134a | 1 | |
| 16 | 91-4086 | NAMEPLATE - Fresh Air Exchange | 1 | |
| 17 | 99-9241 | NAMEPLATE - Rotary switch | 1 | |
| 18 | 91-6708 | NAMEPLATE - Wiring Diagram (Rev A) | 1 | |
| 19 | 99-9401 | NAMEPLATE - Lights Display | 1 | |
| 20 | 91-8755 | NAMEPLATE - Temperature Conversion | 1 | |
| 21 | 91-6707 | NAMEPLATE - Schematic diagram | 1 | |
| 22 | 91-8746 | NAMEPLATE - Ingersoll Rand | 1 |
