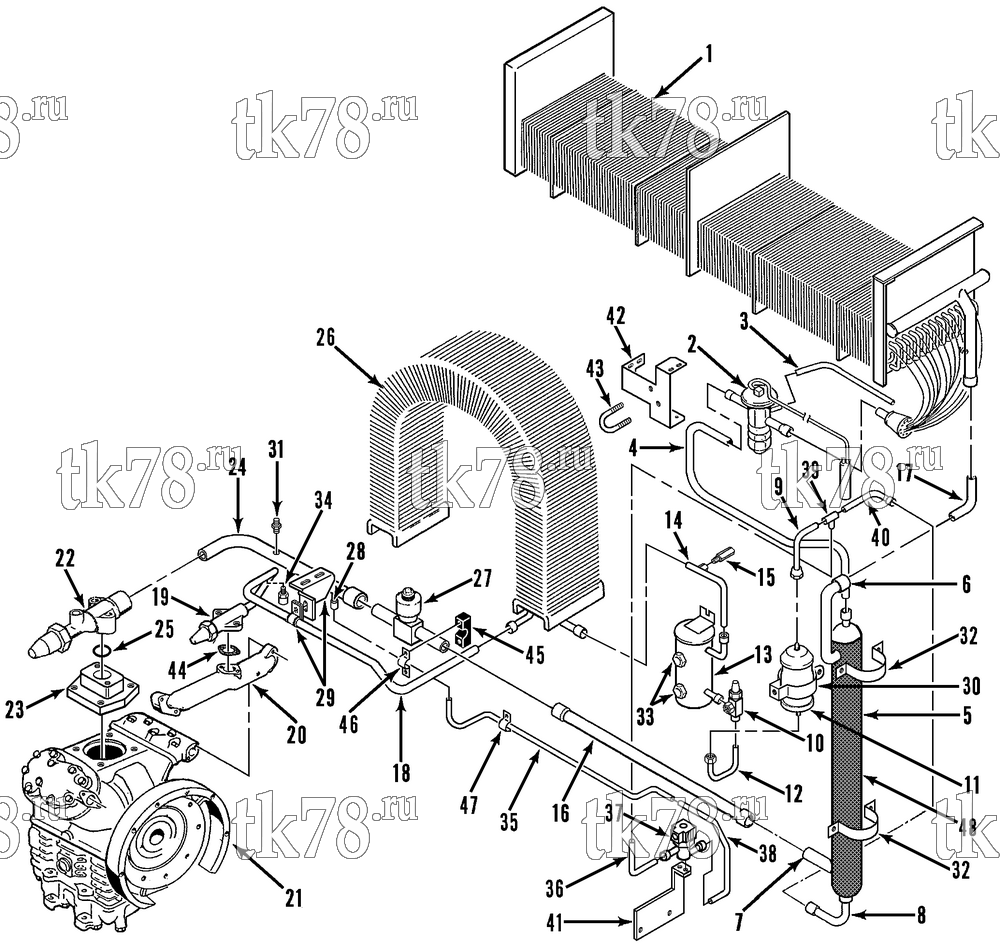

Установкa Thermo King CF-II M32E, M32F, M32G & M32H схема REFRIGERATION COMPONENTS – 126G1
Обновление от: 11/20/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1272 | COIL - evaporator (see 126G5) | 1 | |
| 2 | 66-6601 | VALVE - expansion | 1 | |
| 66-9378 | HOSE - engine to radiator | 1 | ||
| 66-6567 | ELEMENT - power | 1 | ||
| 55-2684 | CLAMP - element | 2 | ||
| 3 | 66-5367 | TUBE - equalizer | 1 | |
| 4 | 66-5366 | TUBE - exchanger to expansion valve | 1 | |
| 5 | 67-1073 | HEAT EXCHANGER | 1 | |
| 6 | 66-4537 | TUBE - exchanger to coil | 1 | |
| 7 | 66-6403 | TUBE - suction | 1 | |
| 8 | 66-4466 | TUBE - liquid | 1 | |
| 9 | 66-6834 | TUBE - dehydrator to tee | 1 | |
| 10 | 66-5747 | VALVE - dehydrator inlet | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 11 | 66-9015 | DEHYDRATOR | 1 | |
| 55-2070 | GASKET - flare nut | 2 | ||
| 12 | 66-7422 | TUBE - receiver to dehydrator | 1 | |
| 55-302 | NUT (hex flare) | 1 | ||
| 13 | 67-1336 | TANK - receiver | 1 | |
| 55-1587 | SCREW - tank | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 14 | 66-8742 | TUBE - condenser to receiver tank | 1 | |
| 55-3295 | FITTING | 1 | ||
| 15 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 16 | 66-7123 | TUBE - exchanger to modulator | 1 | |
| 17 | 66-4538 | TUBE - exchanger to coil | 1 | |
| 18 | 66-7389 | TUBE - valve to coil | 1 | |
| 19 | 66-3942 | VALVE - service (discharge, see 102C4) | 1 | |
| 20 | 22-782 | MANIFOLD - discharge (see 126G2) | 1 | |
| 21 | 102-918 | COMPRESSOR - X430 C5 (CF, see 242F6) | 1 | |
| 22 | 66-5318 | VALVE - suction (see 126G3) | 1 | |
| 66-5318 OEM | Всасывающий клапан X426/430/640 | 42 100 ₽ |
|
|
|
10-66-5318 | Всасывающий клапан X426/430/640 | 28 770 ₽ |
|
| 23 | 22-836 | ADAPTER - suction valve (see 126G2) | 1 | |
| 24 | 66-7423 | TUBE - suction (M32E & M32F) | 1 | |
| 66-8743 | TUBE - suction (M32G & M32H) | 1 | ||
| 25 | 33-230 | O-RING - suction (1.875 id) | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 26 | 67-1383 | COIL - condenser (see 126G6) | 1 | |
| 27 | 66-7793 | VALVE - modulating (for connectors see 115D14) | 1 | |
| 66-7789 | VALVE & COIL (see 123A8) | 1 | ||
| 28 | 66-6844 | FITTING - tube | 1 | |
| 66-7124 | TUBE - standoff | 1 | ||
| 29 | 91-2455 | BRACKET - tube support | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4127 | CLAMP - tube | 1 | ||
| 55-2991 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 30 | 55-4390 | HANGER - dehydrator | 1 | |
| 55-3121 | SCREW - dehydrator | 1 | ||
| 55-1587 | SCREW - hanger | 1 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 99-1754 | PAD (plastic) | 1 | ||
| 31 | 66-5752 | FITTING - header | 1 | |
| 32 | 91-6624 | CLAMP - exchanger | 2 | |
| 55-3101 | RIVET - clamp | 4 | ||
| 33 | 66-7420 | INDICATOR - liquid | 2 | |
| 203-393 | SEALER - thread | A/R | ||
| 34 | 41-309 | SWITCH - thermostat (see 126G4) | 1 | |
| 66-7125 | FITTING - switch | 1 | ||
| 35 | 66-7424 | TUBE - liquid injector | 1 | |
| 36 | 66-6835 | TUBE - tee to solenoid | 1 | |
| 37 | 66-6384 | VALVE - solenoid (see 116G10, for connectors see 115D14) | 1 | |
| 10-66-6384 | Соленоид, MD/RD-II / SB-III/ SMX/SMX-II/V-Series | 13 550 ₽ |
|
|
| 38 | 66-7425 | TUBE - solenoid valve to tube | 1 | |
| 39 | 55-2181 | TEE (1/2 x 1/2 x 3/8) | 1 | |
| 40 | 66-6833 | TUBE - tee to exchanger | 1 | |
| 41 | 91-8023 | BRACKET - valve | 1 | |
| 55-4523 | SCREW - bracket | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 42 | 91-1874 | BRACKET - valve | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 43 | 55-5211 | U-BOLT - valve | 1 | |
| 55-2001 | FLATWASHER - U-bolt | 2 | ||
| 55-4560 | NUT - u-bolt | 2 | ||
| 44 | 33-2805 | GASKET - discharge valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 45 | 55-8022 | CLAMP - suction tube | 1 | |
| 91-5790 | SPACER - clamp | 1 | ||
| 46 | 91-1779 | CLAMP - suction tube (stainless steel) | 5 | |
| 55-3095 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 47 | 55-6388 | CLAMP - tube (liquid injection) | 2 | |
| 55-2979 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 48 | 91-6962 | INSULATION - heat exchanger | 1 |
