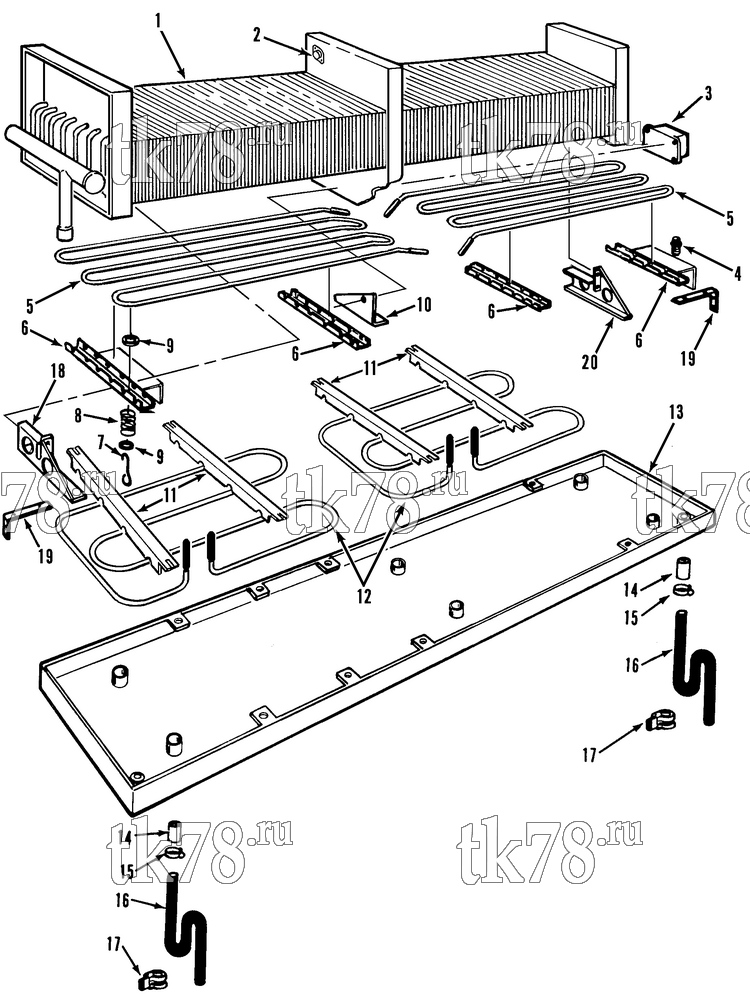

Установкa Thermo King CF-II M1C схема HEATER & DEFROST GROUP – 83F9
Обновление от: 2/16/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-840 | COIL - evaporator (see 83E14) | 1 | |
| 2 | 44-3627 | SWITCH - high temperature cutout | 1 | |
| 55-5636 | SCREW - switches | 4 | ||
| 55-5050 | LOCKWASHER | 4 | ||
| 3 | 99-9705 | BOX - junction (evaporator, see 83F10) | 1 | |
| 4 | 44-5316 | CONNECTOR - barb | 1 | |
| 5 | 45-1391 | HEATER - evaporator coil | 2 | |
| 44-5984 | CABLE - heater | 1 | ||
| 6 | 99-8224 | CHANNEL - heaters (w/ angle) | 2 | |
| 99-6770 | CHANNEL - heaters (w/o angle) | 2 | ||
| 7 | 99-7831 | KEEPER - heater hanger (assembly) | 8 | |
| 8 | 99-7831 | SPRING - hook | 8 | |
| 9 | 55-2001 | FLATWASHER | 8 | |
| 10 | 99-6772 | BRACKET - holddown | 1 | |
| 55-2963 | SCREW - bracket to evaporator | 2 | ||
| 55-4954 | NUT | 2 | ||
| 11 | 99-7101 | BRACKET - heater | 4 | |
| 55-2991 | SCREW - bracket | 8 | ||
| 99-7476 | BRACKET - heater holddown | 2 | ||
| 55-1587 | SCREW - bracket | 2 | ||
| 55-4953 | NUT | 2 | ||
| 12 | 45-1369 | HEATER - drip pan | 2 | |
| 13 | 98-2482 | PAN - drip | 1 | |
| 55-3344 | SCREW - pan | 6 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 14 | 99-3091 | PIPE - drain | 2 | |
| 15 | 55-2686 | CLAMP - hose | 2 | |
| 16 | 99-7103 | HOSE - drain trap | 2 | |
| 17 | 55-3359 | CLAMP - tube | 2 | |
| 55-5639 | SCREW - clamp | 2 | ||
| 18 | 99-7097 | BRACKET - expansion valve | 1 | |
| 19 | 99-7453 | ANGLE - coil support | 2 | |
| 55-3834 | SCREW - angle | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 20 | 99-7114 | BRACKET - air exchanger | 1 |
