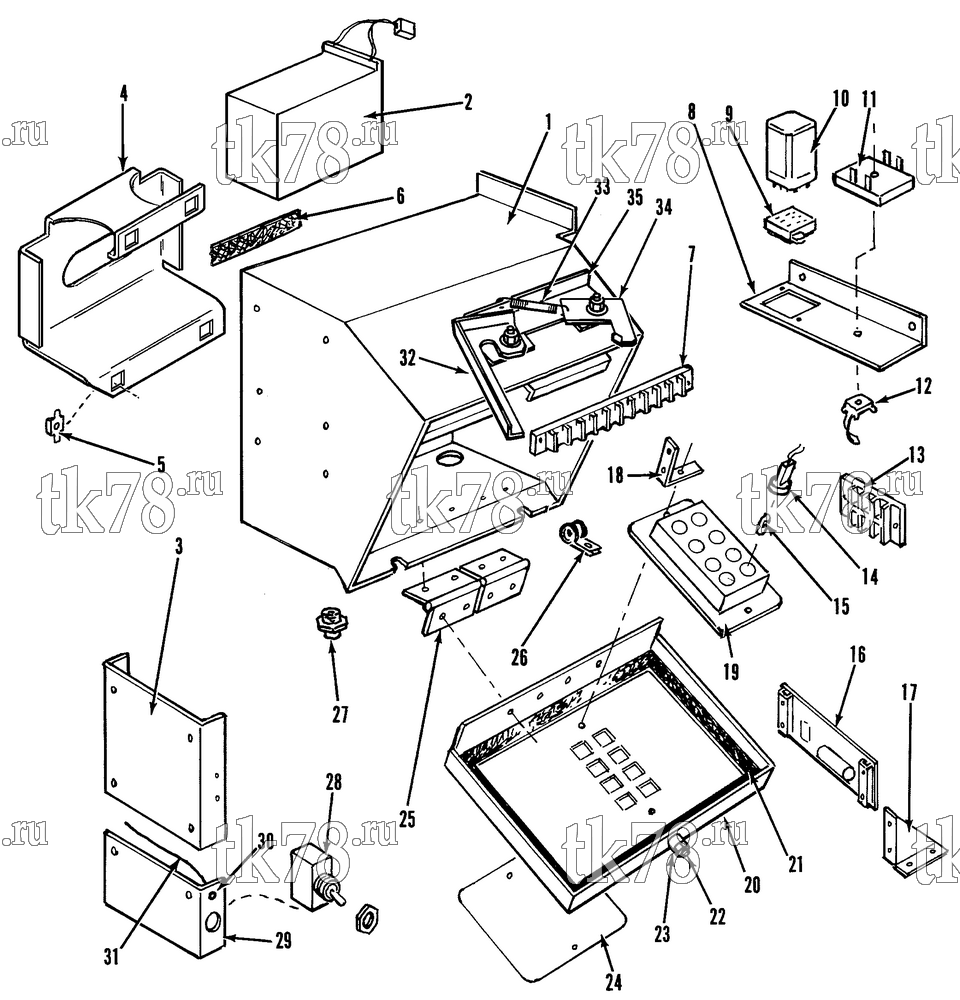

Установкa Thermo King CF-II M1C схема INDICATOR LIGHT & BATTERY BOX (Before UPGRADE) – 83F8
Обновление от: 2/4/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1368 | BOX (complete) | 1 | ||
| 1 | 98-3439 | BOX - only | 1 | |
| 2 | 203-525 | BATTERY & HARNESS | 1 | |
| 3 | 44-6591 | CHARGER - battery | 1 | |
| 4 | 99-8142 | TRAY - battery holder | 1 | |
| 5 | 55-3059 | NUT - captive | 4 | |
| 6 | 99-7246 | STRIP (neoprene, 1/2 wide x 1/4 thk x 50 ft) | A/R | |
| 99-5966 | STRIP (neoprene, 1 in wide x 1/4 thk x 50 ft) | A/R | ||
| 7 | 44-6190 | BOARD - terminal | 1 | |
| 55-5416 | SCREW - board | 2 | ||
| 55-4156 | WASHER - sealing | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 99-8175 | MARKSTRIP | 1 | ||
| 8 | 99-8144 | BRACKET - relay & timer | 1 | |
| 9 | 44-3184 | SOCKET | 1 | |
| 55-2270 | RIVET | 2 | ||
| 99-2027 | SPRING - holddown (relay) | 1 | ||
| 10 | 44-3186 | RELAY | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 55-2771 | CLAMP - speednut | 1 | ||
| 11 | 44-6553 | TIMER - solid state | 1 | |
| 12 | 99-4403 | MOUNT - cable tie | 1 | |
| 55-5279 | SCREW - timer | 1 | ||
| 55-3013 | FLATWASHER | 1 | ||
| 55-3014 | LOCKWASHER | 1 | ||
| 55-2999 | NUT | 1 | ||
| 13 | 44-5534 | BOARD - terminal | 1 | |
| 99-8145 | MARKSTRIP | 1 | ||
| 14 | 44-6462 | SOCKET - light | 8 | |
| 15 | 44-3711 | BULB - light | 8 | |
| 16 | 44-6554 | BOARD - driver lamp (incl 14, 17, 18) | 1 | |
| 17 | 99-8170 | BRACKET - board | 1 | |
| 18 | 99-8171 | BRACKET - board | 1 | |
| 19 | 99-8172 | HOUSING - board assembly | 1 | |
| 33-1606 | GASKET - lamp housing | 1 | ||
| 55-3027 | SCREW - housing | 2 | ||
| 55-3008 | WASHER - sealing | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 20 | 91-592 | COVER | 1 | |
| 21 | 33-1616 | GASKET - cover | 1 | |
| 22 | 55-3098 | SCREW - roller | 1 | |
| 55-2086 | FLATWASHER | 1 | ||
| 55-4953 | NUT | 1 | ||
| 23 | 99-8162 | ROLLER - door latch | 1 | |
| 99-8151 | SPACER | 1 | ||
| 24 | 99-8174 | NAMEPLATE - light mode | 1 | |
| 25 | 99-2392 | HINGE - door | 2 | |
| 55-3024 | SCREW - hinge | 6 | ||
| 55-3008 | WASHER - sealing | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-2965 | NUT | 6 | ||
| 26 | 55-547 | CLAMP | 1 | |
| 27 | 44-3712 | GRIP - cable | 1 | |
| 55-2635 | NUT | 1 | ||
| 28 | 44-6557 | BREAKER - circuit | 1 | |
| 29 | 99-8176 | BRACKET - circuit breaker | 1 | |
| 99-8177 | NAMEPLATE - circuit breaker | 1 | ||
| 55-3027 | SCREW - bracket | 2 | ||
| 55-3008 | WASHER - sealing | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 30 | 44-5114 | POST - binding | 1 | |
| 31 | 204-209 | LEAD - thermistor | 1 | |
| 99-8148 | LATCH (incl 32, 33, 34, 35) | 1 | ||
| 32 | 99-8149 | LATCH - door | 1 | |
| 55-2957 | SCREW - latch | 1 | ||
| 99-8994 | SPACER | 1 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-2363 | LOCKWASHER | 1 | ||
| 55-4953 | NUT | 1 | ||
| 33 | 99-317 | SPRING | 1 | |
|
10-99-317 | Пружина | 500 ₽ |
|
| 34 | 99-8152 | BRACKET - latch | 1 | |
| 55-1587 | SCREW - bracket | 1 | ||
| 99-8153 | SPACER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-2641 | FLATWASHER | 3 | ||
| 55-4953 | NUT | 1 | ||
| 35 | 99-8150 | BRACKET - latch | 1 | |
| 55-4953 | NUT - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 |
