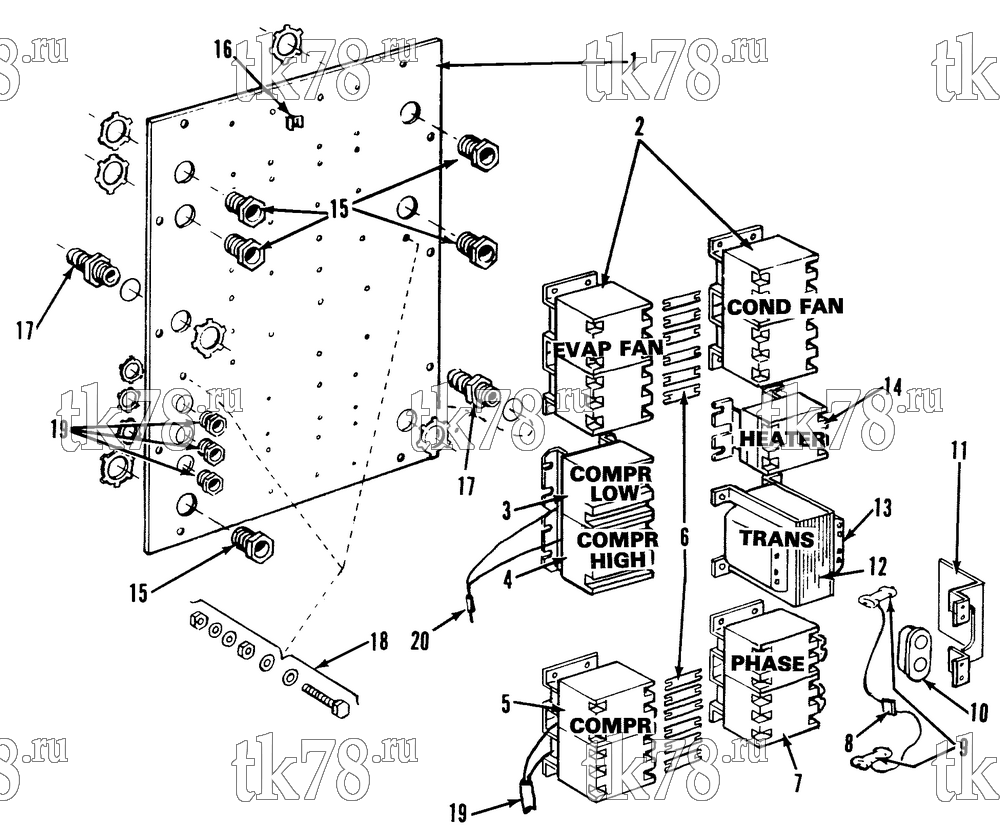

Установкa Thermo King CF-II M1C схема HIGH VOLTAGE TRAY – 83F6
Обновление от: 8/29/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1367 | TRAY - high voltage (incl 1 thru 22) | 1 | ||
| 1 | 99-9707 | TRAY - only | 1 | |
| 2 | 44-5294 | CONTACTOR - evaporator fan & condenser fans | 2 | |
| 44-4286 | COIL | 2 | ||
| 40-287 | KIT - points | 2 | ||
| 55-3511 | SCREW - contactor | 8 | ||
| 55-2202 | LOCKWASHER | 8 | ||
| 3 | 44-6092 | RELAY - compressor overload (low speed) | 1 | |
| 4 | 44-6092 | RELAY - compressor overload (high speed) | 1 | |
| 55-2989 | SCREW - relay | 6 | ||
| 55-2202 | LOCKWASHER | 6 | ||
| 55-2201 | FLATWASHER | 6 | ||
| 5 | 44-6164 | CONTACTOR - compressor | 1 | |
| 44-4286 | COIL - contactor | 1 | ||
| 55-3511 | SCREW - contactor | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 6 | 44-5845 | JUMPER | 12 | |
| 7 | 44-5753 | CONTACTOR - phase correction | 1 | |
| 44-5752 | CONTACTOR - only | 1 | ||
| 44-4889 | COIL | 1 | ||
| 40-333 | KIT - points | 1 | ||
| 8 | 44-6002 | BOARD - phase correction | 1 | |
| 44-5149 | BOARD - circuit | 1 | ||
| 44-3832 | RECTIFIER | 2 | ||
| 9 | 44-4298 | RESISTOR | 2 | |
| 99-6511 | BRACKET - resistor | 2 | ||
| 10 | 44-4299 | CAPACITOR | 1 | |
| 99-5226 | BRACKET - capacitor & circuit board | 1 | ||
| 11 | 99-5225 | BRACKET - capacitor | 1 | |
| 55-3511 | SCREW - contactor | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 12 | 44-5521 | TRANSFORMER | 1 | |
| 55-3842 | SCREW - transformer | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 13 | 44-3710 | JUMPER - strip | 2 | |
| 14 | 44-5300 | CONTACTOR - evaporator heater | 1 | |
| 44-4286 | COIL | 1 | ||
| 40-287 | KIT - points | 1 | ||
| 55-3025 | SCREW - contactor | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 15 | 55-2788 | FITTING - connector | 4 | |
| 55-5018 | NUT | 5 | ||
| 16 | 99-3281 | MOUNT - cable tie | 3 | |
| 55-2330 | BANDWRAP | A/R | ||
| 17 | 55-2789 | FITTING - barb | 2 | |
| 55-5018 | LOCKNUT | 2 | ||
| 33-144 | O-RING - fitting | 2 | ||
| 18 | 55-3000 | SCREW - ground | 3 | |
| 55-3008 | WASHER - sealing | 3 | ||
| 55-2996 | LOCKWASHER | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2965 | NUT | 6 | ||
| 19 | 55-5111 | CONNECTOR - liquid tite | 3 | |
| 33-1435 | GROMMET - bumper | 1 | ||
| 20 | 44-7725 | DIODE - assembly | 1 | |
| 44-2756 | DIODE - only | 2 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 21 | 44-7415 | HARNESS - microprocessor | 1 | |
| 22 | 55-3539 | CONNECTOR | 1 | |
| 55-6127 | LOCKNUT | 1 | ||
| 33-1056 | O-RING | 1 |
