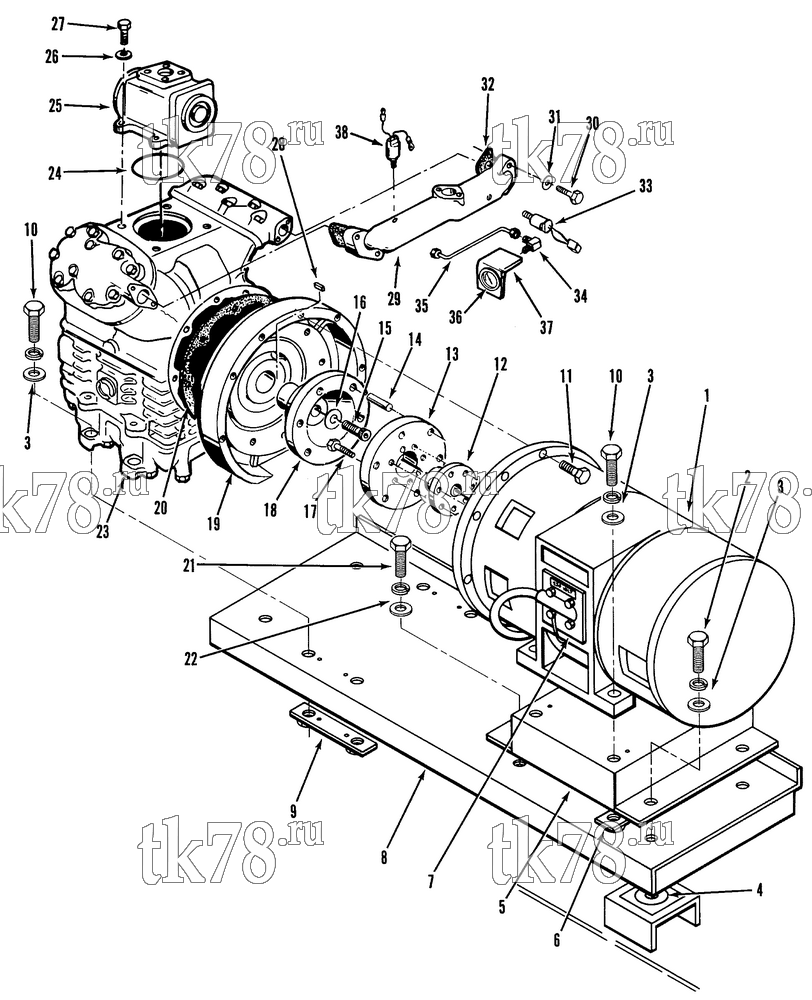

Установкa Thermo King CF-II M1C схема POWER TRAY GROUP & COMPOUND GAUGE – 83F11
Обновление от: 2/4/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-457 | MOTOR - compressor drive (11.2 hp) | 1 | |
| 77-928 | BEARING (drive end) | 1 | ||
| 77-686 | BEARING (opposite drive end) | 1 | ||
| 2 | 55-5214 | SCREW - tray to frame | 4 | |
| 3 | 55-2363 | LOCKWASHER | 12 | |
| 55-2641 | FLATWASHER | 12 | ||
| 4 | 99-7095 | MOUNT - tray | 4 | |
| 55-2963 | SCREW - mount | 8 | ||
| 55-4954 | NUT | 8 | ||
| 5 | 99-7093 | BRACKET - motor | 1 | |
| 6 | 99-7094 | NUTSTRIP - motor | 2 | |
| 55-5047 | RIVET - strip | 4 | ||
| 7 | 99-6447 | PLATE - cover | 1 | |
| 99-1949 | NAMEPLATE - 230 Volt | 1 | ||
| 55-3021 | SCREW - plate | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER - spring | 4 | ||
| 55-2993 | LOCKWASHER (internal tooth) | 4 | ||
| 8 | 98-2470 | TRAY - power pack | 1 | |
| 9 | 99-7173 | NUTSTRIP - compressor | 2 | |
| 55-5047 | RIVET - strip | 4 | ||
| 10 | 55-2961 | SCREW - motor & compressor | 8 | |
| 11 | 55-2683 | SCREW - motor to compressor | 6 | |
| 55-2363 | LOCKWASHER | 6 | ||
| 12 | 77-1002 | HUB | 1 | |
| 13 | 77-1286 | PLATE - drive coupling | 1 | |
| 14 | 55-1123 | PIN - dowel | 6 | |
| 55-1123 OEM | Палец втулки муфты сцепления | 1 900 ₽ |
|
|
| 15 | 55-4316 | SCREW - coupling to compressor | 1 | |
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 16 | 77-2498 | SPACER | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 17 | 55-3675 | SCREW - plate to motor | 3 | |
| 55-1800 | LOCKWASHER | 3 | ||
| 18 | 77-809 | COUPLING - compressor drive | 1 | |
| 77-2856 | BUSHING - coupling | 6 | ||
|
10-77-2856 | Втулка муфты сцепления | 1 080 ₽ |
|
|
PP-77-2856 | Втулка муфты сцепления | 490 ₽ |
|
| 19 | 22-693 | HOUSING - drive coupling | 1 | |
| 55-878 | SCREW - housing | 9 | ||
| 30-55-878 | Болт головки цилиндров компрессора | 680 ₽ |
|
|
| 55-896 | FLATWASHER | 9 | ||
| 22-778 | SEAL - compressor crankshaft | 1 | ||
| 22-778 OEM | Сальник коленвала, X418/X426/X430 | 14 860 ₽ |
|
|
|
10-22-778 | Сальник коленвала, X418/X426/X430 | 11 920 ₽ |
|
|
PP-22-778 | Сальник коленвала, X418/X426/X430 | 2 720 ₽ |
|
| 20 | 33-2513 | GASKET - housing to compressor | 1 | |
|
10-33-2513 | Прокладка передней крышки, X418/426/430/640 | 1 450 ₽ |
|
| PP-33-2513 | Прокладка передней крышки, X418/426/430/640 | 500 ₽ |
|
|
| 21 | 55-3089 | SCREW - bracket | 2 | |
| 22 | 55-2363 | LOCKWASHER | 4 | |
| 55-2958 | FLATWASHER | 4 | ||
| 23 | NSS | COMPRESSOR - assembly (see 83F12) | 1 | |
| 24 | 33-1221 | O-RING | 1 | |
|
10-33-1221 | О-ринг под клапан - регулятор давления | 280 ₽ |
|
| 25 | 66-3826 | VALVE - throttling | 1 | |
| 26 | 55-2641 | FLATWASHER | 4 | |
| 27 | 55-2683 | SCREW - valve | 4 | |
| 28 | 55-9024 | KEY - crankshaft | 1 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 29 | 22-750 | MANIFOLD - discharge | 1 | |
| 30 | 55-183 | SCREW - manifold | 4 | |
| 10-55-183 | Болт масляного насоса компрессора 3/8-16 x 1/4 lg | 550 ₽ |
|
|
| 31 | 55-896 | FLATWASHER | 4 | |
| 32 | 33-2805 | GASKET - manifold | 2 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 33 | 41-1626 | SWITCH - hpco | 1 | |
| 34 | 55-1253 | COUPLING | 2 | |
| 35 | 66-3694 | TUBE - gauge | 2 | |
| 36 | 66-3688 | GAUGE - compound | 1 | |
| 37 | 99-7096 | BRACKET - gauge | 1 | |
| 55-3098 | SCREW - bracket | 2 | ||
| 55-4953 | NUT | 2 | ||
| 38 | 44-5840 | SWITCH - 2 speed condenser fan | 1 | |
| 44-5841 | SWITCH - only | 1 |
