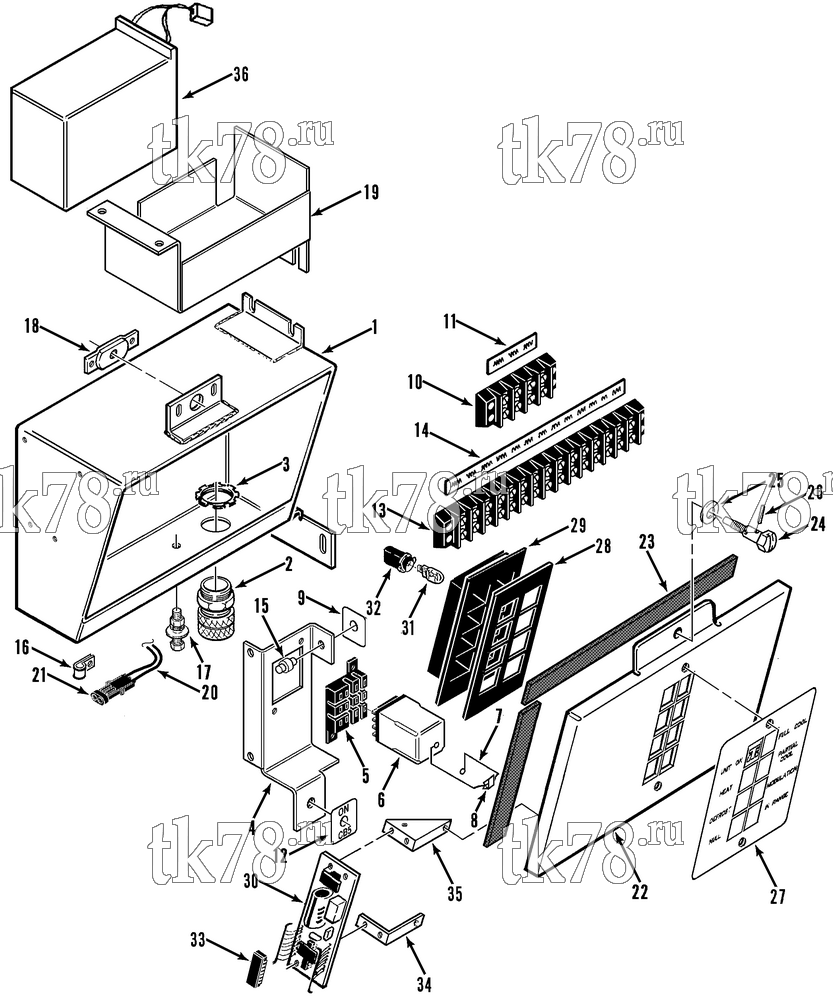

Установкa Thermo King CF-II M1C схема BATTERY CHARGER – 121G3
Обновление от: 2/4/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-6140 | BOX - light | 1 | |
| 2 | 44-3712 | GRIP - cable | 1 | |
| 3 | 55-2635 | NUT | 1 | |
| 4 | 91-6141 | BRACKET - relay | 1 | |
| 55-2995 | SCREW - bracket | 2 | ||
| 55-3008 | WASHER - sealing | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 5 | 44-3184 | SOCKET - relay | 1 | |
| 6 | 44-3186 | RELAY (3pdt) | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 7 | 99-2027 | SPRING - holddown | 2 | |
| 55-2270 | RIVET - spring | 2 | ||
| 8 | 55-2771 | CLAMP - speednut | 1 | |
| 9 | 91-6142 | NAMEPLATE - thermometer receptacle | 1 | |
| 10 | 44-5534 | BOARD - terminal | 1 | |
| 55-3296 | SCREW - board | 2 | ||
| 55-4156 | WASHER - sealing | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 11 | 99-8145 | MARKSTRIP | 1 | |
| 12 | 91-6143 | NAMEPLATE - on/CB5 | 1 | |
| 13 | 44-6190 | BOARD - terminal | 1 | |
| 55-5070 | SCREW - board | 2 | ||
| 55-4156 | WASHER - sealing | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 14 | 99-8175 | MARKSTRIP | 1 | |
| 15 | 44-5114 | POST - binding | 1 | |
| 16 | 55-3065 | CLAMP | 1 | |
| 17 | 55-3000 | SCREW - ground | 1 | |
| 55-3008 | WASHER - sealing | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 2 | ||
| 55-2965 | NUT | 4 | ||
| 18 | 99-8143 | NUTSTRIP | 1 | |
| 55-3027 | SCREW - nutstrip | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 19 | 91-6144 | BRACKET - battery | 2 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-5691 | INSERT | 2 | ||
| 20 | 41-733 | HARNESS - battery | 1 | |
| 21 | 44-5835 | CONNECTOR (2 terminal) | 1 | |
| 44-5883 | TERMINAL - male (18-20 ga) | 1 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 1 | ||
| 22 | 91-6145 | COVER - box | 1 | |
| 23 | 99-7246 | STRIP - sealing | A/R | |
| 24 | 55-3392 | SCREW - cover | 1 | |
| 25 | 55-2641 | FLATWASHER | 1 | |
| 26 | 55-5216 | PIN - spring | 1 | |
| 27 | 99-8174 | NAMEPLATE - indicator lights | 1 | |
| 28 | 33-1606 | GASKET - lamp housing | 1 | |
| 29 | 99-8172 | HOUSING - lamp | 1 | |
| 55-3027 | SCREW - housing | 3 | ||
| 55-3008 | WASHER - sealing | 3 | ||
| 55-2001 | FLATWASHER | 5 | ||
| 55-4560 | NUT | 3 | ||
| 30 | 44-6554 | BOARD - circuit (complete) | 1 | |
| 44-6554 | BOARD - circuit | 1 | ||
| 31 | 44-3711 | BULB - light | 8 | |
| 32 | 44-6462 | SOCKET - light | 8 | |
| 33 | 44-6869 | CIRCUIT - integrated | 1 | |
| 34 | 99-8171 | BRACKET - board | 1 | |
| 35 | 99-8170 | BRACKET - board | 1 | |
| 36 | 203-525 | BATTERY & HARNESS | 1 |
