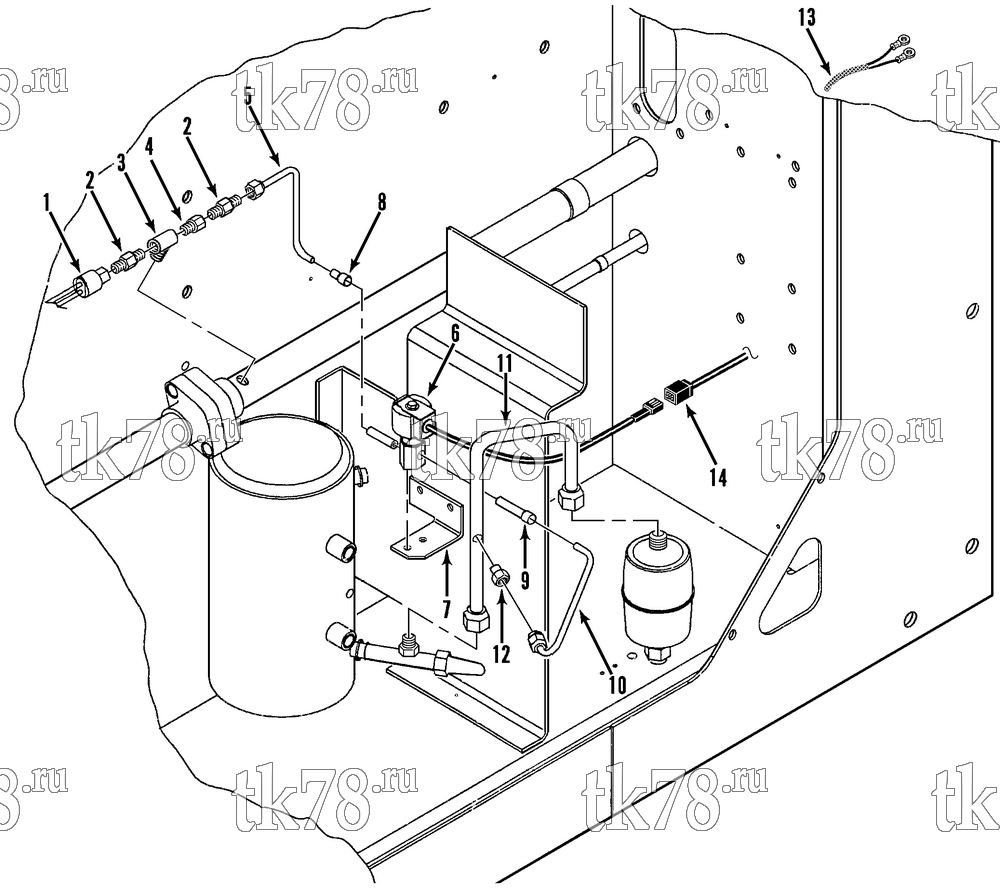

Установкa Thermo King CF-II M1C схема LIQUID INJECTION KIT – 121G2
Обновление от: 9/23/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-6930 | SWITCH - lpco | 1 | |
| 44-4258 | SWITCH - only | 1 | ||
| 2 | 55-459 | COUPLING | 2 | |
| 3 | 55-1654 | TEE | 1 | |
| 4 | 55-7561 | ADAPTER | 1 | |
| 5 | 66-7584 | TUBE - solenoid valve to suction tube | 1 | |
| 6 | 66-6384 | VALVE - solenoid (liquid/refrigeration, see 116G10) | 1 | |
|
10-66-6384 | Соленоид, MD/RD-II / SB-III/ SMX/SMX-II/V-Series | 13 550 ₽ |
|
| 55-4523 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 7 | 91-5588 | BRACKET - solenoid | 1 | |
| 55-2991 | SCREW - bracket | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 8 | 55-7560 | BUSHING (3/8 ftg, 1/4 sld) | 1 | |
| 9 | 66-4341 | COUPLING (red, 3/8 solder, 1/4 solder) | 1 | |
| 10 | 66-6930 | TUBE - valve to receiver tank | 1 | |
| 11 | 66-7354 | TUBE - receiver tank to drier | 1 | |
| 12 | 66-874 | FITTING (1/4 flare) | 1 | |
| 13 | 41-432 | HARNESS - valve to liquid injection | 1 | |
| 14 | 44-5835 | CONNECTOR (2-pin, male) | 1 |
