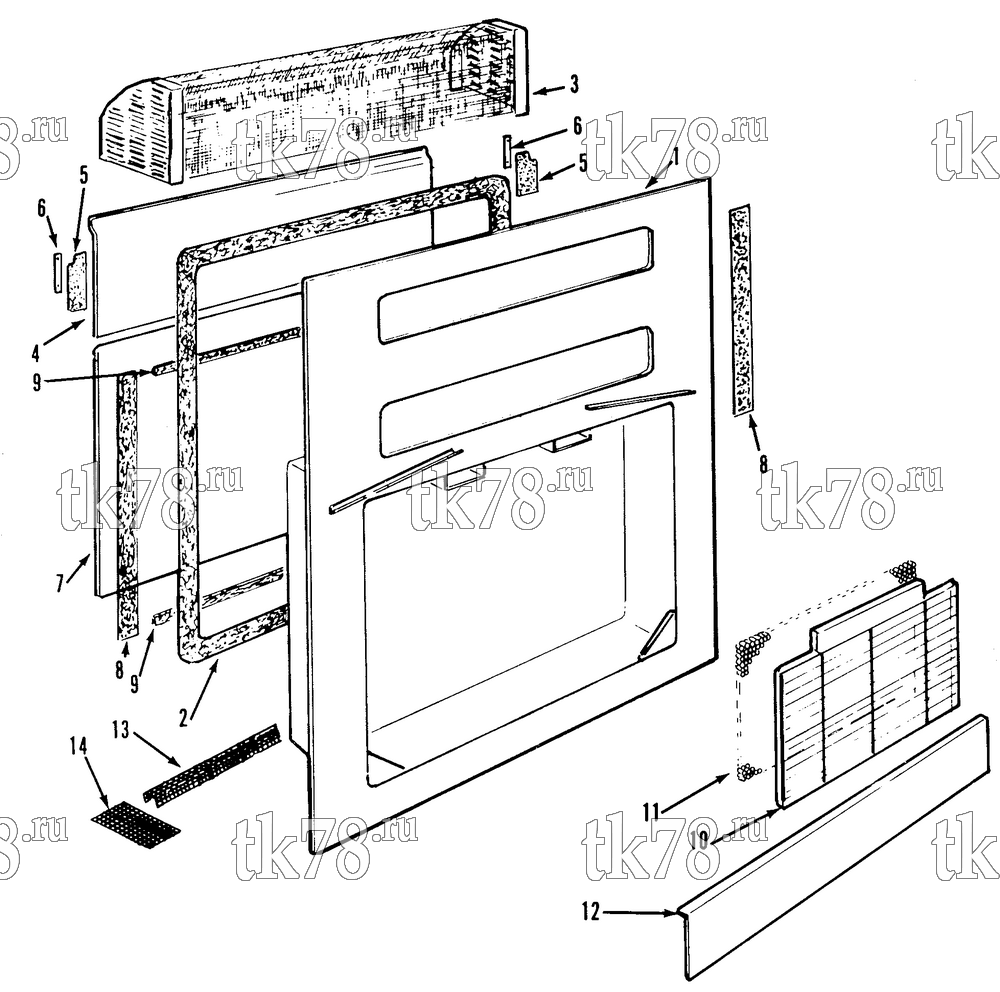

Установкa Thermo King CF-II M19 Prepared for Sea-Land схема STRUCTURAL COMPONENTS - NAMEPLATES – 76E13
Обновление от: 10/14/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5222 | FRAME | 1 | |
| 2 | 99-9251 | STRIP - sealing (top & bottom, 25 ft) | A/R | |
| 99-9252 | STRIP - sealing (sides, 25 ft) | A/R | ||
| 3 | 98-2991 | SCREEN - air | 1 | |
| 33-1725 | GASKET - screen | 2 | ||
| 55-3010 | RIVET | 6 | ||
| 4 | 98-3038 | PANEL - upper rear | 1 | |
| 5 | 33-1693 | GASKET - panel | 2 | |
| 6 | 99-8967 | STRIP - gasket support | 2 | |
| 55-3010 | RIVET - strip | 6 | ||
| 7 | 98-3039 | PANEL - lower rear | 1 | |
| 55-2977 | SCREW - panels | 25 | ||
| 55-5223 | WASHER - special | 25 | ||
| 55-3059 | NUT - captive | 21 | ||
| 8 | 33-1694 | GASKET - panel (vertical) | 2 | |
| 9 | 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | |
| 10 | 98-3202 | GRILLE | 1 | |
| 11 | 98-2989 | GRILLE - honeycomb | 1 | |
| 12 | 98-3095 | PANEL - compressor | 1 | |
| 55-1587 | SCREW - panel | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 13 | 98-3056 | SCREEN - evaporator (rear) | 1 | |
| 14 | 99-9233 | SCREEN - evaporator (side) | 2 | |
| 55-2840 | RIVET - TIR | 10 | ||
| 55-2001 | FLATWASHER | 10 | ||
| 55-3101 | RIVET | 8 | ||
| 15 | 99-7104 | NAMEPLATE - Thermo King | 1 | |
| 99-3523 | NAMEPLATE - R12 | 1 | ||
| 16 | 99-9234 | NAMEPLATE - Fan Universal | 1 |
