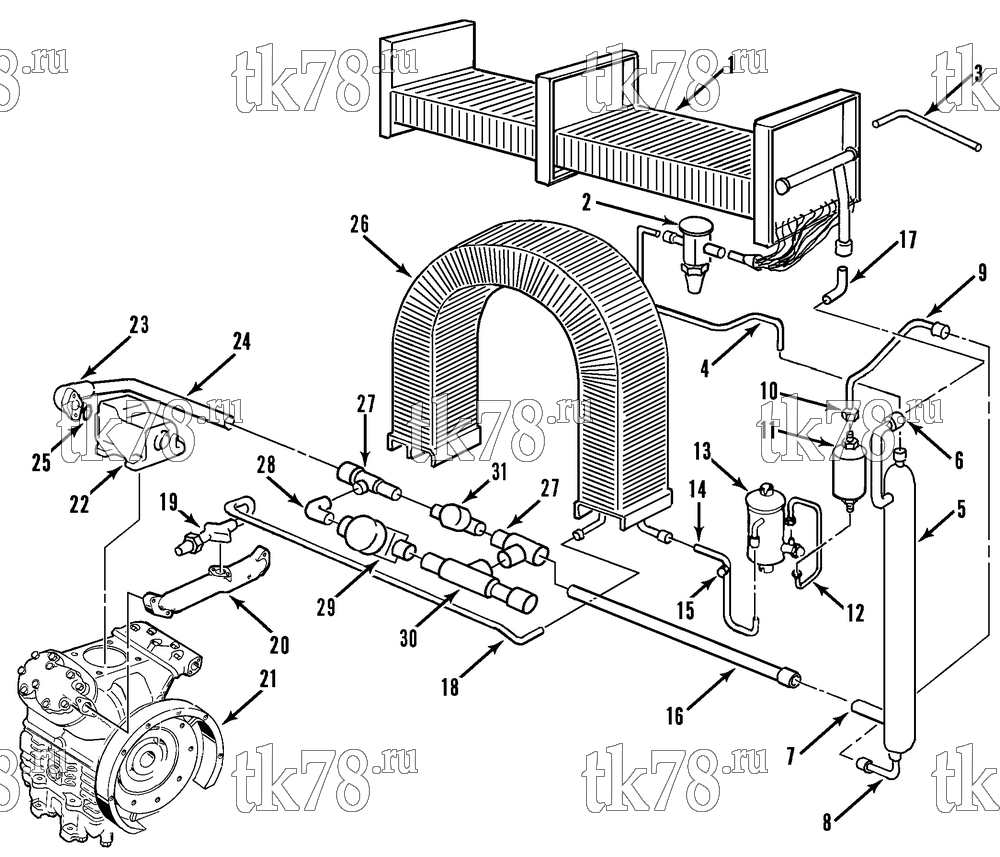

Установкa Thermo King CF-II M14G схема REFRIGERATION COMPONENTS – 89B5
Обновление от: 9/25/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1272 | COIL - evaporator | 1 | |
| 2 | 66-5365 | VALVE - expansion | 1 | |
| 66-633 | ELEMENT - power | 1 | ||
| 66-9378 | SCREEN - inlet | 1 | ||
| 99-8948 | BRACKET - valve | 1 | ||
| 55-3049 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-5211 | U-BOLT - valve | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 3 | 66-5367 | TUBE - equalizer | 1 | |
| 4 | 66-5366 | TUBE - exchanger to expansion valve | 1 | |
| 5 | 67-799 | HEAT EXCHANGER (incl 6, 7, 8) | 1 | |
| 99-8949 | CLAMP - heat exchanger | 2 | ||
| 55-3049 | SCREW - clamp | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 6 | 66-4537 | TUBE - heat exchanger to evaporator | 1 | |
| 7 | 66-4465 | TUBE - exchanger to modulating (suction) | 1 | |
| 8 | 66-4466 | TUBE - liquid | 1 | |
| 9 | 66-4589 | TUBE | 1 | |
| 10 | 55-302 | NUT | 1 | |
| 11 | 66-9015 | DEHYDRATOR | 1 | |
| 55-2070 | GASKET | 2 | ||
| 55-4390 | HANGER - dehydrator | 1 | ||
| 55-1587 | SCREW - hanger | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | LOCKNUT | 1 | ||
| 55-3121 | SCREW - dehydrator | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 12 | 66-4468 | TUBE - condenser to dehydrator | 1 | |
| 13 | 67-809 | TANK - receiver | 1 | |
| 66-6870 | INDICATOR - liquid | 2 | ||
| 66-594 | VALVE - angle | 1 | ||
| 99-9358 | NAMEPLATE - Liquid Level | 1 | ||
| 55-1587 | SCREW - tank | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 14 | 66-4469 | TUBE - condenser to receiver | 1 | |
| 55-3295 | FITTING - valve | 1 | ||
| 15 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 16 | 66-4567 | TUBE - valve modulating to heat exchanger | 1 | |
| 66-3615 | FITTING - saddle | 1 | ||
| 66-2886 | VALVE (Schrader) | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 99-9229 | BRACKET - tube support | 1 | ||
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-3234 | CLAMP (1-1/8) | 1 | ||
| 55-4127 | CLAMP (3/4) | 1 | ||
| 55-2991 | SCREW - clamp | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 17 | 66-4538 | TUBE - heat exchanger to evaporator | 1 | |
| 18 | 66-4520 | TUBE - valve to coil | 1 | |
| 19 | 66-129 | VALVE - service (discharge, see 76B3) | 1 | |
|
10-66-129 | Сервисный вентиль, X426/430 | 22 340 ₽ |
|
| 20 | 22-750 | MANIFOLD - discharge | 1 | |
| 55-183 | SCREW - manifold | 4 | ||
| 10-55-183 | Болт масляного насоса компрессора 3/8-16 x 1/4 lg | 550 ₽ |
|
|
| 55-896 | FLATWASHER - manifold | 4 | ||
| 21 | 102-919 | COMPRESSOR - X426 (see 231C3) | 1 | |
| 22 | 66-4509 | VALVE - throttling (see 76B3) | 1 | |
| 33-1221 | O-RING - valve | 1 | ||
|
10-33-1221 | О-ринг под клапан - регулятор давления | 280 ₽ |
|
| 55-2683 | SCREW - valve | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 23 | 66-4473 | FLANGE & ELBOW | 1 | |
| 55-2961 | SCREW - flange | 2 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-6395 | FLATWASHER | 2 | ||
| 24 | 66-4521 | TUBE - suction | 1 | |
| 25 | 33-920 | O-RING - suction | 1 | |
| 26 | 67-1383 | COIL - condenser (complete, see 74F2) | 1 | |
| 67-807 | VALVE - suction modulating (incl 27 thru 31) | 1 | ||
| 27 | 55-4308 | TEE | 2 | |
| 28 | 66-3941 | ELBOW - valve modulating | 1 | |
| 29 | 66-3943 | VALVE - modulation | 1 | |
| 66-3943 | VALVE - only | 1 | ||
| 44-5175 | COIL | 1 | ||
| 30 | 66-3860 | VALVE - pressure regulator | 1 | |
| 66-3937 | TUBE | 2 | ||
| 31 | 66-4707 | VALVE - solenoid (only, see 138A3) | 1 | |
| 60-183 | KIT - repair | 1 |
