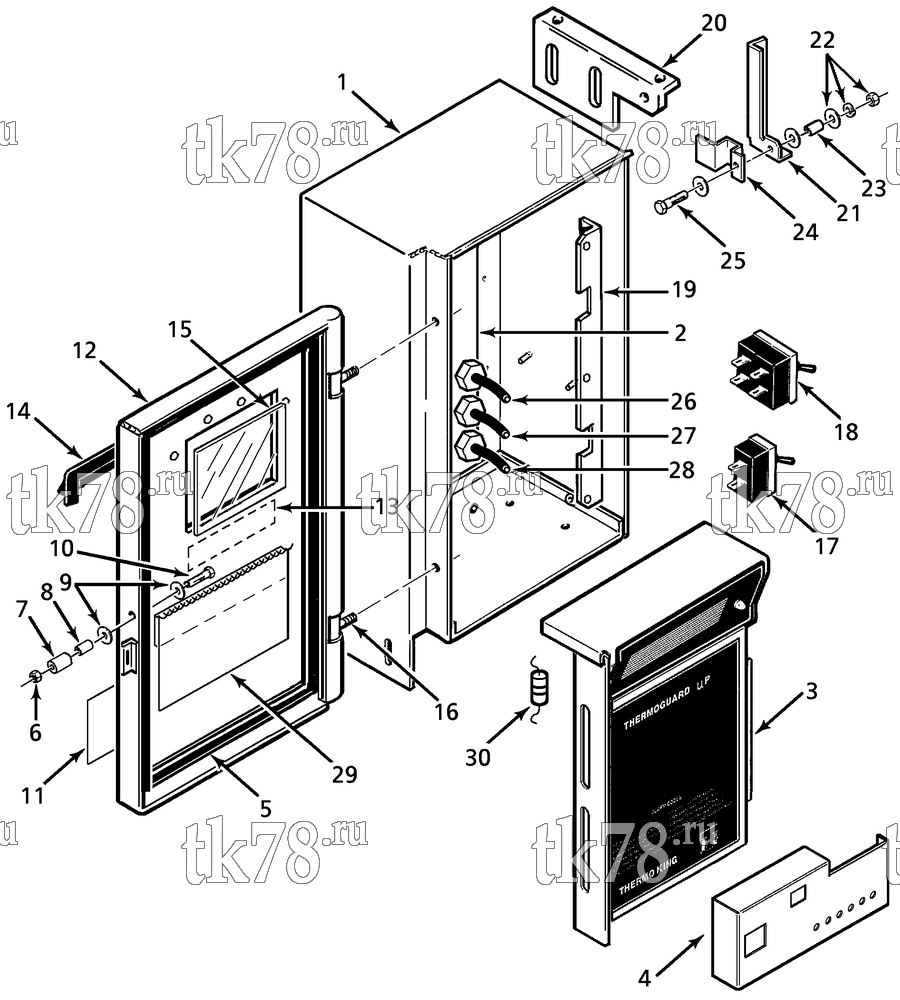

Установкa Thermo King CF-II M14B Prepared for OOCL схема CONTROL BOX ASSEMBLY – 77B6
Обновление от: 2/12/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3058 | BOX - control | 1 | |
| 2 | 99-9236 | PANEL - high voltage (see 77B7) | 1 | |
| 33-1435 | GROMMET | 2 | ||
| 3 | 45-1746 | CONTROLLER - microprocessor (MPA+, see 74F11) | 1 | |
| 4 | 99-9237 | BRACKET - circuit breaker (see 77B8) | 1 | |
| 5 | 99-8986 | STRIP - gasket (rubber) | A/R | |
| 6 | 55-4953 | NUT | 1 | |
| 7 | 99-8162 | ROLLER - door latch | 1 | |
| 8 | 99-8151 | SPACER - door latch | 1 | |
| 9 | 55-2086 | FLATWASHER | 2 | |
| 10 | 55-2977 | SCREW | 1 | |
| 11 | 99-9171 | NAMEPLATE - defrost on/off | 1 | |
| 12 | 91-701 | COVER - control box (incl 5 thru 16) | 1 | |
| 99-9238 | COVER - only | 1 | ||
| 13 | 99-9239 | NAMEPLATE - lights display | 1 | |
| 14 | 99-8161 | SHIELD - light | 1 | |
| 55-3099 | SCREW | 4 | ||
| 55-4560 | NUT | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-3008 | WASHER - sealing | 4 | ||
| 15 | 99-8164 | WINDOW - control box cover | 1 | |
| 16 | 55-3473 | PIN - hinge | 2 | |
| 99-7900 | ROD - hinge | 2 | ||
| 44-7254 | HARNESS - circuit breakers | 1 | ||
| 17 | 44-2099 | SWITCH - defrost | 1 | |
| 18 | 44-6560 | SWITCH - on/off | 1 | |
| 44-739 | BOOT - switch | 2 | ||
| 19 | 99-9240 | ANGLE - microprocessor | 1 | |
| 55-3059 | NUT - speed | 3 | ||
| 55-2991 | SCREW - angle | 2 | ||
| 55-3008 | WASHER - sealing | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 20 | 99-8981 | ANGLE - box | 1 | |
| 55-1587 | SCREW | 2 | ||
| 55-3028 | WASHER - sealing | 2 | ||
| 55-4953 | NUT | 2 | ||
| 21 | 99-8149 | LATCH - door | 1 | |
| 22 | 55-4953 | NUT | 1 | |
| 55-2086 | FLATWASHER | 1 | ||
| 55-2363 | LOCKWASHER | 1 | ||
| 23 | 99-8994 | SPACER - door latch | 1 | |
| 24 | 99-8993 | BRACKET - door latch | 1 | |
| 25 | 55-2957 | SCREW | 1 | |
| 26 | 44-6565 | SENSOR - defrost (18 ft, black band) | 1 | |
| 27 | 44-5568 | SENSOR - return air (15 ft, yellow) | 1 | |
| 28 | 44-5448 | SENSOR - discharge air (12 ft, red band) | 1 | |
| 33-1764 | SEAL - sensor | 1 | ||
| 29 | 99-9385 | BRACKET - nameplate (see 79B11) | 1 | |
| 55-4953 | NUT | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 30 | 44-7250 | RESISTOR - compressor oil switch | 1 |
