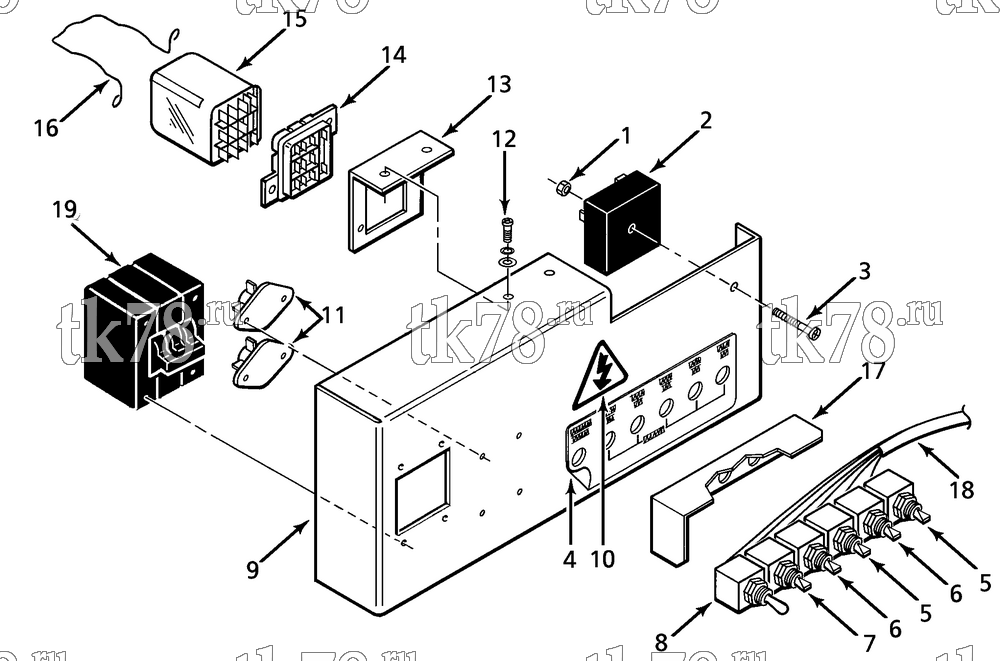

Установкa Thermo King CF-II M14A схема CIRCUIT BREAKER GROUP – 78E10
Обновление от: 3/15/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-4560 | NUT - timer | 1 | |
| 2 | 44-6553 | TIMER - solid state | 1 | |
| 3 | 55-4148 | SCREW - timer | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 4 | 99-9243 | NAMEPLATE - circuit breaker | 1 | |
| 5 | 44-5996 | BREAKER - circuit (5.0 amp) | 2 | |
| 6 | 44-6557 | BREAKER - circuit (3.0 amp) | 2 | |
| 7 | 44-6558 | BREAKER - circuit (1.5 amp) | 1 | |
| 8 | 44-6559 | SWITCH - setpoint enable | 1 | |
| 9 | 99-9237 | BRACKET - circuit breaker | 1 | |
| 10 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 11 | 44-3280 | RECTIFIER | 2 | |
| 55-3256 | SCREW (items 11 & 19) | 8 | ||
| 55-3013 | FLATWASHER | 8 | ||
| 55-3014 | LOCKWASHER | 8 | ||
| 55-2999 | NUT | 4 | ||
| 12 | 55-3025 | SCREW - relay bracket | 2 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 13 | 99-9245 | BRACKET - relay | 1 | |
| 14 | 44-3184 | SOCKET - relay | 1 | |
| 15 | 44-3186 | RELAY | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 55-2771 | CLAMP | 1 | ||
| 16 | 99-2027 | SPRING | 1 | |
| 55-2270 | RIVET | 2 | ||
| 17 | 99-9342 | BRACKET - switch protector | 1 | |
| 18 | 44-7115 | HARNESS - circuit breaker | 1 | |
| 44-2099 | SWITCH - defrost | 1 | ||
| 44-6560 | SWITCH - on/off | 1 | ||
| 19 | 44-6977 | BREAKER - circuit | 1 |
