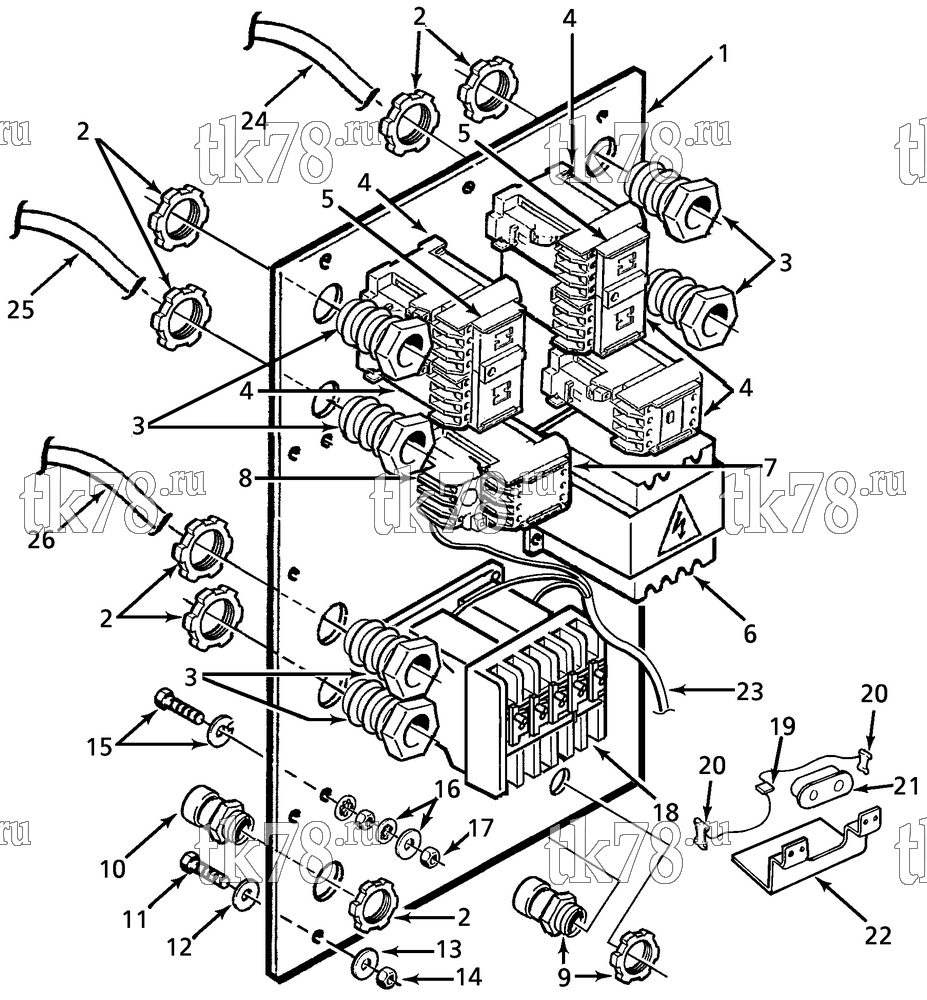

Установкa Thermo King CF-II M14A схема HIGH VOLTAGE TRAY – 74F10
Обновление от: 4/20/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-9236 | PANEL - high voltage | 1 | |
| 55-1587 | SCREW - panel to box | 12 | ||
| 55-3028 | WASHER - sealing | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-4953 | NUT | 12 | ||
| 2 | 55-5018 | NUT (3/4 in id) | 6 | |
| 55-6127 | NUT (1.0 in id) | 1 | ||
| 3 | 55-2788 | FITTING - barb | 5 | |
| 55-2789 | FITTING - barb | 1 | ||
| 33-144 | O-RING | 1 | ||
| 55-3539 | CONNECTOR - barb | 1 | ||
| 33-1056 | O-RING | 1 | ||
| 4 | 40-490 | KIT - contactor (see 188C1) | 5 | |
| 91-4940 | PLATE - contactor | 1 | ||
| 55-6840 | SCREW - plate | 6 | ||
| 44-8812 | CONTACTOR - 24V | 2 | ||
| 55-3150 | SCREW - contactor | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 44-8813 | INTERLOCK - contactor | 1 | ||
| 44-6946 | COIL | 5 | ||
| 55-3511 | SCREW - contactor | 10 | ||
| 55-2202 | LOCKWASHER | 10 | ||
| 55-2201 | FLATWASHER | 10 | ||
| 5 | 44-6922 | INTERLOCK - contactor | 2 | |
| 6 | 44-6919 | TRANSFORMER | 1 | |
| 44-3710 | JUMPER | 2 | ||
| 99-3407 | NAMEPLATE - Caution 230 Volts | 1 | ||
| 55-3842 | SCREW - transformer | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 7 | 40-489 | KIT - contactor | 1 | |
| 44-8812 | CONTACTOR | 1 | ||
| 44-8892 | CONTACTOR - auxiliary | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-3150 | SCREW - contactor | 2 | ||
| 55-6840 | SCREW & WASHER | 3 | ||
| 91-4939 | PLATE - adapter | 1 | ||
| 8 | 40-863 | KIT - overload replacement | 1 | |
| 9 | 55-5111 | CONNECTOR - cable | 5 | |
| 33-1435 | GROMMET - connector | 2 | ||
| 10 | 55-5112 | CONNECTOR - cable | 1 | |
| 11 | 55-1587 | SCREW - panel | 12 | |
| 12 | 55-3028 | WASHER - sealing | 12 | |
| 13 | 55-2086 | FLATWASHER | 12 | |
| 14 | 55-4953 | NUT | 12 | |
| 15 | 55-3000 | SCREW - ground | 3 | |
| 55-3008 | WASHER - sealing | 3 | ||
| 16 | 55-2996 | LOCKWASHER | 6 | |
| 55-2001 | FLATWASHER | 6 | ||
| 17 | 55-2965 | NUT | 6 | |
| 18 | 44-5753 | CONTACTOR - phase correction | 1 | |
| 44-5752 | CONTACTOR - only (phase) | 1 | ||
| 44-4889 | COIL - contactor | 1 | ||
| 40-333 | KIT - points | 1 | ||
| 19 | 44-6002 | BOARD - phase correction | 1 | |
| 44-5149 | BOARD - circuit | 1 | ||
| 44-3832 | RECTIFIER | 2 | ||
| 20 | 44-4298 | RESISTOR | 2 | |
| 21 | 44-4299 | CAPACITOR | 1 | |
| 22 | 99-5226 | BRACKET - capacitor | 1 | |
| 55-3511 | SCREW - contactor | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 23 | 44-7116 | HARNESS - high voltage tray to microprocessor | 1 | |
| 24 | 44-7117 | HARNESS - heater | 1 | |
| 25 | 44-7118 | HARNESS - main | 1 | |
| 26 | 44-7119 | HARNESS - lights | 1 |
