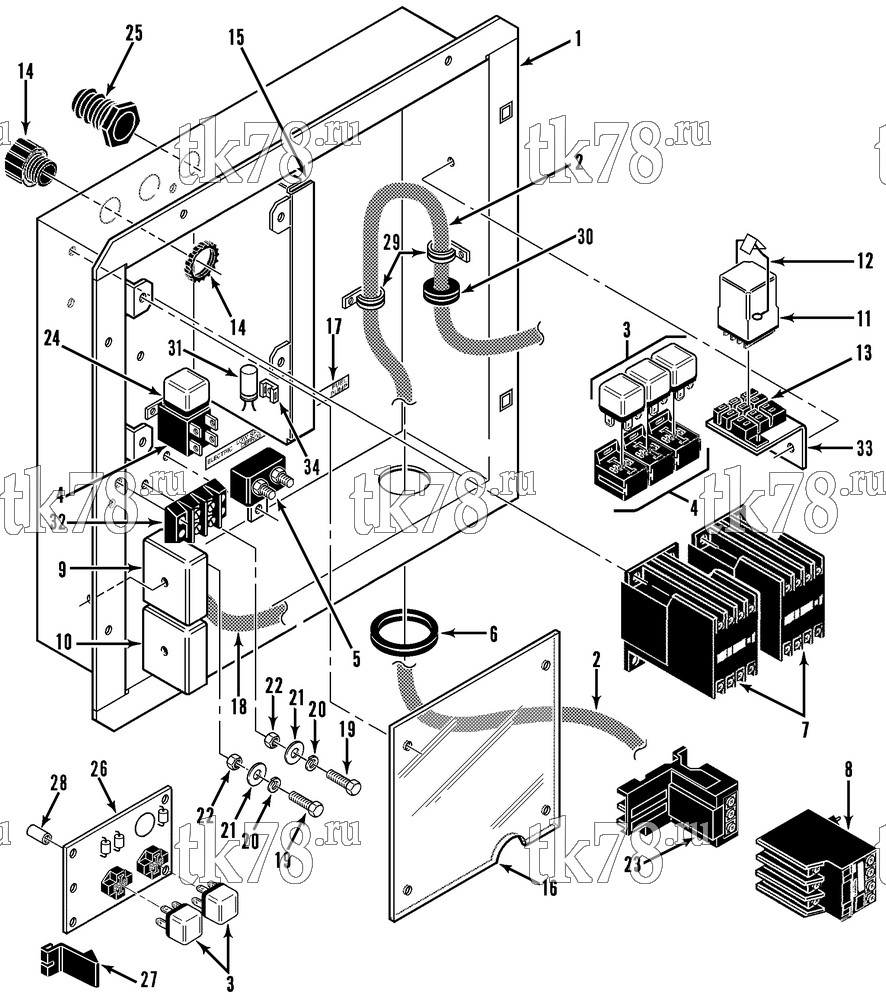

Установкa Thermo King CD-II MAX & CD-II MAX EMEIA схема CONTROL BOX ASSEMBLY (1 PHASE) – 138F5
Обновление от: 7/8/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5029 | BOX - control | 1 | |
| 55-2977 | SCREW - box | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-3059 | NUT - captive | 8 | ||
| 2 | 41-2005 | HARNESS - main (see 138F2) | 1 | |
| 3 | 41-895 | RELAY (1pdt) | 4 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 4 | 44-5537 | SOCKET - relay | 4 | |
| 55-2989 | SCREW - socket | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-6743 | INSERT - threaded | 4 | ||
| 5 | 44-5512 | BREAKER - circuit | 1 | |
|
10-44-5512 | Автоматический выключатель, 30A | 2 260 ₽ |
|
| 55-2989 | SCREW - breaker | 1 | ||
| 55-3800 | LOCKWASHER | 1 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 6 | 33-628 | GROMMET | 1 | |
| 7 | 44-2853 | CONTACTOR - motor (1 phase) | 2 | |
| 8 | 41-5621 | RELAY - overload | 1 | |
| 9 | 41-2006 | TIMER - clutch | 1 | |
| 55-2330 | BANDWRAP | A/R | ||
| 10 | 41-414 | TIMER - unloading | 1 | |
| 55-5215 | SCREW - timer | 1 | ||
| 55-2202 | LOCKWASHER | 1 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 44-6453 | TERMINAL | 2 | ||
| 44-5573 | CONNECTOR | 1 | ||
| 11 | 44-3186 | RELAY - unloading | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 12 | 99-2027 | SPRING - holddown | 1 | |
| 55-2270 | RIVET - spring | 2 | ||
| 55-2771 | CLAMP - speednut | 1 | ||
| 13 | 44-3184 | SOCKET - relay | 1 | |
| 14 | 55-6141 | CONNECTOR (liquid tite) | 1 | |
| 55-2635 | NUT - conduit | 1 | ||
| 15 | 91-4820 | BRACKET - HV & optional | 1 | |
| 55-2989 | SCREW - bracket | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 16 | 91-4744 | SHIELD - high voltage | 1 | |
| 55-3443 | SCREW - shield | 4 | ||
| 55-3800 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-6743 | INSERT - threaded | 4 | ||
| 99-7834 | NAMEPLATE - Caution | 1 | ||
| 17 | 91-7558 | MARKSTRIP | 1 | |
| 18 | 44-9971 | HARNESS - electric relay | 1 | |
| 19 | 55-3000 | SCREW - ground | 3 | |
| 20 | 55-2996 | LOCKWASHER | 9 | |
| 21 | 55-2001 | FLATWASHER | 6 | |
| 22 | 55-2965 | NUT | 6 | |
| 55-2964 | LOCKWASHER | 2 | ||
| 23 | 41-6096 | ADAPTER - relay | 1 | |
| 55-2989 | SCREW - adapter | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 24 | 44-8755 | RELAY - current | 1 | |
| 55-2989 | SCREW - relay | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 25 | 55-2788 | FITTING - barb | 1 | |
| 55-2635 | NUT - fitting | 1 | ||
| 26 | 41-2190 | BOARD - pc (fuel solenoid timer) | 1 | |
| 27 | 91-1277 | RETAINER - harness connector | 1 | |
| 55-2262 | RIVET - retainer | 1 | ||
| 55-3550 | FLATWASHER | 1 | ||
| 28 | 55-8430 | SPACER | 3 | |
| 55-3511 | SCREW - pc board | 3 | ||
| 55-3800 | LOCKWASHER | 3 | ||
| 55-2201 | FLATWASHER | 3 | ||
| 29 | 99-3281 | MOUNT - cable tie | 2 | |
| 30 | 91-6923 | CLIP - sleeving | 3 | |
| 31 | 44-8759 | CAPACITOR | 1 | |
| 55-2270 | RIVET | 2 | ||
| 32 | 44-3610 | BOARD - terminal | 1 | |
| 55-3511 | SCREW - board | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 33 | 99-4268 | BRACKET - relay | 1 | |
| 34 | 99-3427 | MOUNT - capacitor | 2 |
