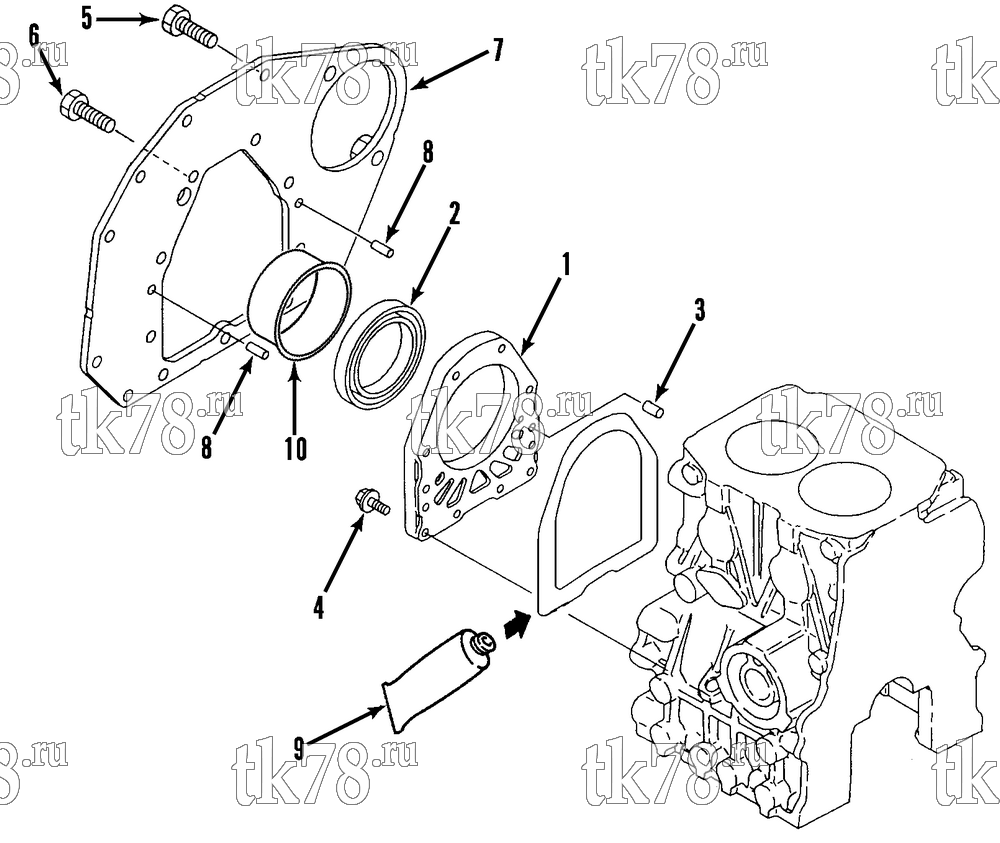

Установкa Thermo King CD-II MAX & CD-II MAX EMEIA схема MOUNTING FLANGE & OIL SEAL GROUP (TK 2.49) – 132F7
Обновление от: 1/21/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-6032 | HOUSING - seal | 1 | |
| 2 | 33-1506 | SEAL - oil | 1 | |
|
10-33-1506 | Сальник коленвала задний, Yanmar, кроме 4XX / 370 / 376 | 4 830 ₽ |
|
|
PP-33-1506 | Сальник коленвала задний, Yanmar, кроме 4XX / 370 / 376 | 3 690 ₽ |
|
| 3 | 55-5795 | PIN - dowel | 2 | |
| 4 | 55-5849 | SCREW - housing | 10 | |
| 5 | 55-6537 | SCREW - flange (25 mm lg) | 3 | |
| 6 | 55-5848 | SCREW - flange (20 mm lg) | 8 | |
| 7 | 11-7248 | FLANGE - mounting | 1 | |
| 8 | 55-5816 | PIN - dowel | 2 | |
| 9 | 203-348 | GASKET - adhesive (RTV silicone) | A/R | |
| 10 | 11-5967 | SLEEVE - repair | 1 | |
|
10-11-5967 | Втулка задняя, Yanmar 235, 249, 353 | 6 950 ₽ |
|
| 30-237 | GASKET SET - engine overhaul (see 132F13) | 1 | ||
|
10-30-237 | Набор прокладок, Yanmar 249 | 27 490 ₽ |
|
