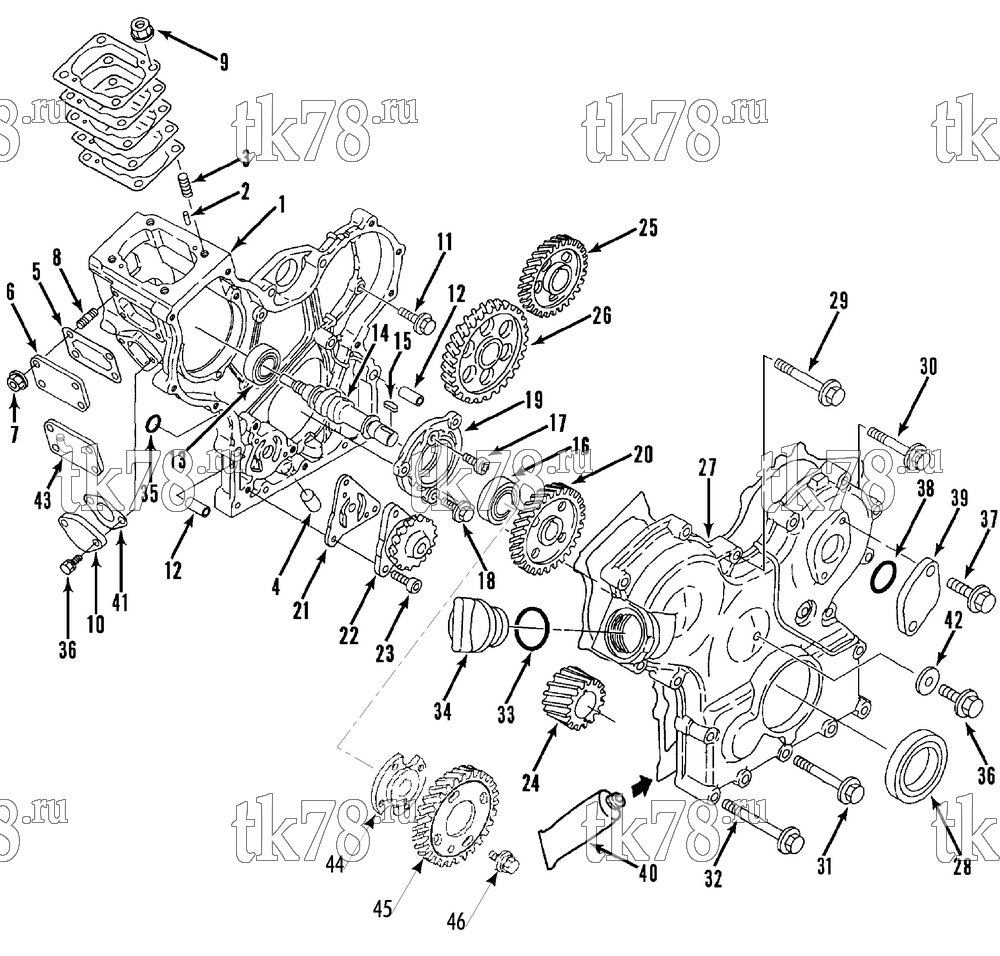

Установкa Thermo King CD-II MAX & CD-II MAX EMEIA схема GEAR HOUSING (TK 2.49 & TK 2.49E) – 132F6
Обновление от: 12/8/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-8810 | HOUSING - gear | 1 | |
| 2 | 55-5834 | PIN - roll | 2 | |
| 3 | 55-5784 | STUD - injection pump | 4 | |
| 4 | 55-5783 | PLUG | 1 | |
| 5 | 33-1754 | GASKET - cover | 1 | |
| 6 | 11-6135 | COVER - fuel pump (before TK2.49 K01613 & TK2.49E K019717) | 1 | |
| 7 | 55-5792 | NUT - cover | 4 | |
| 8 | 55-5859 | STUD - fuel pump cover | 4 | |
| 9 | 55-5791 | NUT - injection pump | 4 | |
| 10 | 11-5084 | COVER | 1 | |
| 11 | 55-5786 | SCREW - gear housing | 5 | |
| 12 | 55-5785 | PIN - alignment | 4 | |
| 13 | 11-6060 | BEARING - injection pump | 1 | |
| 14 | 11-6258 | CAMSHAFT - injection pump | 1 | |
| 15 | 55-5813 | KEY - shaft | 1 | |
| 16 | 11-6595 | BEARING - injection pump | 1 | |
| 17 | 55-4635 | SCREW (8 mm) | 1 | |
| 18 | 55-5786 | SCREW (6 mm) | 3 | |
| 19 | 11-6062 | CASE - bearing | 1 | |
| 20 | 11-6063 | GEAR - injection pump | 1 | |
| 21 | 33-1740 | GASKET - oil pump | 1 | |
| 10-33-1740 | Прокладка масляного насоса, Yanmar 366, 388 | 590 ₽ |
|
|
| 22 | 11-6133 | PUMP - oil | 1 | |
|
10-11-6133 | Масляный насос, Yanmar 249, 366, 374 | 31 060 ₽ |
|
| 23 | 55-6187 | SCREW - pump | 3 | |
| 24 | 11-6065 | GEAR - crankshaft | 1 | |
| 25 | 11-6056 | GEAR - camshaft | 1 | |
| 26 | 11-6082 | GEAR - idler (w/ bushing) | 1 | |
| 27 | 11-8647 | COVER - gear | 1 | |
| 28 | 33-1727 | SEAL - oil | 1 | |
| 33-1727 OEM | Сальник коленвала передний | 3 020 ₽ |
|
|
| PP-33-1727 | Сальник коленвала передний | 990 ₽ |
|
|
| 29 | 55-5789 | SCREW - cover (50 mm) | 4 | |
| 30 | 55-5787 | SCREW - cover (30 mm) | 5 | |
| 31 | 55-5788 | SCREW - cover (40 mm) | 3 | |
| 32 | 55-5790 | SCREW - cover (65 mm) | 6 | |
| 33 | 33-1954 | O-RING | 1 | |
| 34 | 11-5091 | CAP - oil fill | 1 | |
| 11-5091 OEM | Крышка маслозаливной горловины, Yanmar 353 / 366 / 374 / 388 / 395 / 482 / 486 / 486V | 3 500 ₽ |
|
|
| 35 | 33-3512 | O-RING | 2 | |
| 36 | 55-5786 | SCREW - cover | 3 | |
| 37 | 55-5826 | SCREW - cover | 2 | |
| 38 | 33-2814 | O-RING - cover | 1 | |
| 39 | 13-933 | COVER | 1 | |
| 40 | 203-348 | GASKET - adhesive (RTV silicone) | A/R | |
| 41 | 33-1542 | GASKET - cover | 1 | |
| 42 | 55-8613 | WASHER - sealing | 1 | |
| 43 | 11-9564 | COVER - fuel pump (TK 2.49 K01613 & TK2.49E K01917 & after) | 1 | |
| 44 | 11-9930 | FLANGE (use with gear 11-9932) | 1 | |
| 45 | 11-9932 | GEAR - injection pump | 1 | |
| 46 | 51-805 | SCREW - gear (use with gear 11-9932) | 4 | |
| 30-237 | GASKET SET - engine overhaul (see 132F13) | 1 | ||
|
10-30-237 | Набор прокладок, Yanmar 249 | 27 490 ₽ |
|
