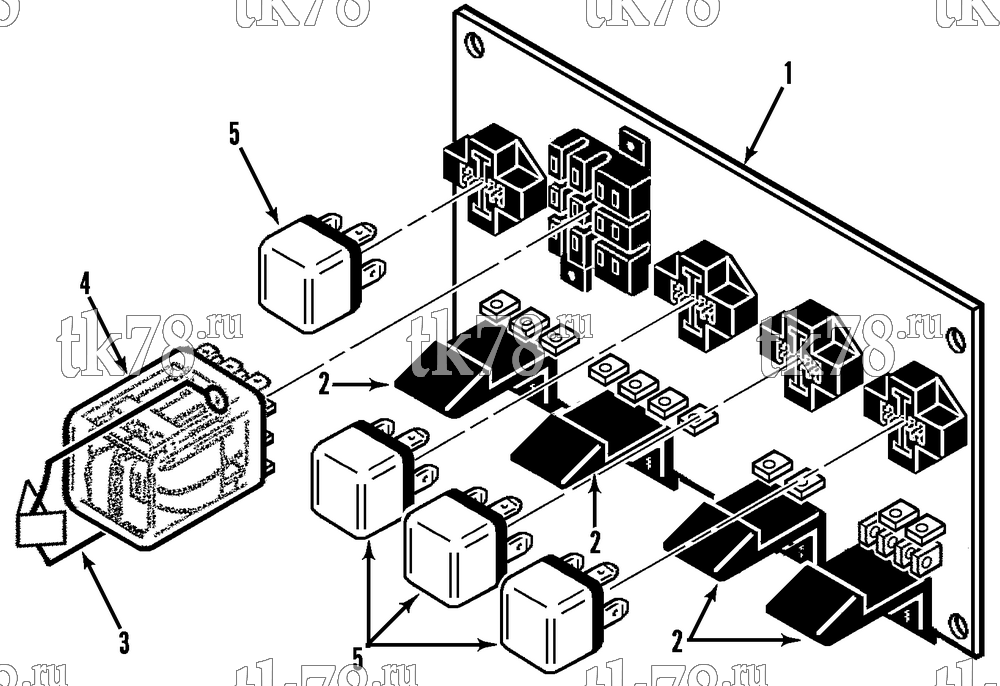

Установкa Thermo King CD-II MAX & CD-II MAX EMEIA схема RELAY BOARD ASSEMBLY (5/95 & After) – 129F3
Обновление от: 2/26/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-290 | BOARD - relay | 1 | |
| 2 | 91-1277 | RETAINER - harness connector | 4 | |
| 55-2262 | RIVET - retainer | 4 | ||
| 55-3550 | FLATWASHER | 4 | ||
| 3 | 99-2027 | SPRING - holddown | 1 | |
| 55-2771 | CLAMP - holddown | 1 | ||
| 55-2262 | RIVET - spring | 2 | ||
| 4 | 44-3186 | RELAY - defrost | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 5 | 41-895 | RELAY - mini | 4 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
