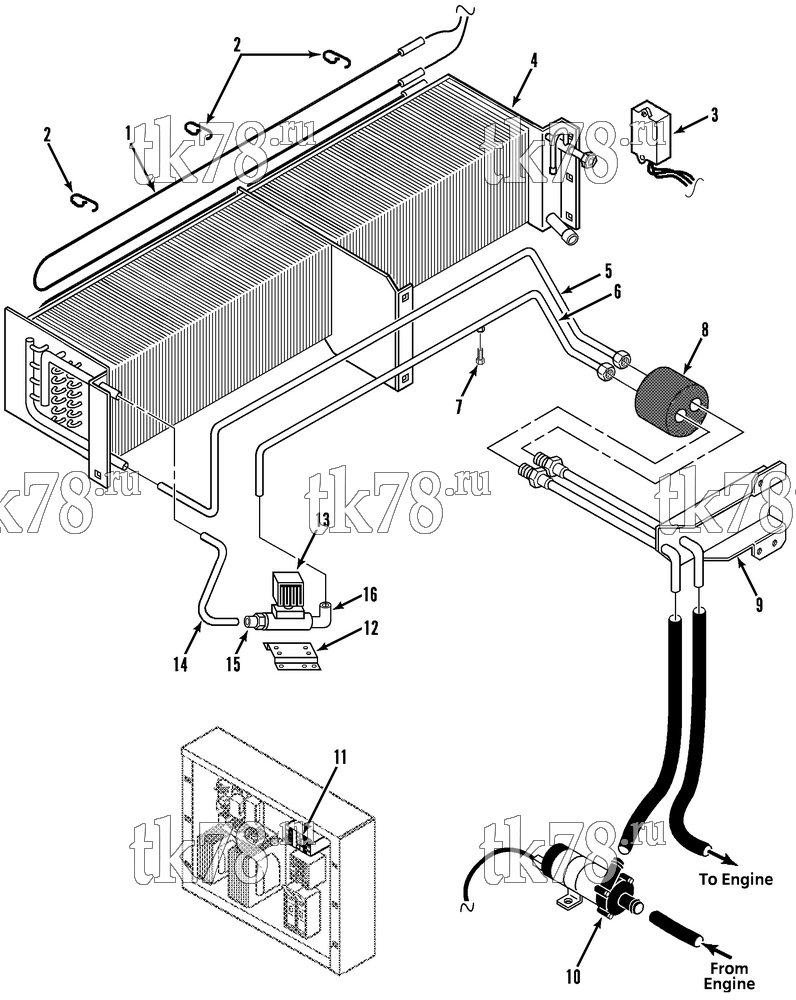

Установкa Thermo King CBci2 & CB MAX схема HEATER GROUP – 109B2
Обновление от: 11/23/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-1374 | HEATER (230 VAC) | 2 | |
| 2 | 91-240 | RETAINER - heater | 8 | |
| 3 | 44-7354 | BOX - junction | 1 | |
| 4 | 67-1117 | COIL - evaporator | 1 | |
| 55-3059 | NUT - captive (1/4-20) | 4 | ||
| 55-1587 | SCREW - coil | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 5 | 66-6734 | TUBE - coil to outlet tube | 1 | |
| 6 | 66-6736 | TUBE - water (inlet) | 1 | |
| 66-3571 | FITTING - saddle | 1 | ||
| 7 | 11-2886 | VALVE - air bleed | 1 | |
| 55-5672 | CAP - valve | 1 | ||
| 8 | 91-2366 | INSULATOR - truck wall | 1 | |
| 9 | 66-6737 | ANCHOR - water tube | 1 | |
| 55-3213 | ADAPTER - tube | 2 | ||
| 91-4499 | STRAP - tube holder | 1 | ||
| 55-1587 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 10 | 41-2233 | PUMP - water (12V) | 1 | |
| 41-9326 | HARNESS - pump | 1 | ||
| 41-2234 | PUMP - water (24V) | 1 | ||
| 41-9326 | HARNESS - pump | 1 | ||
| 11 | 41-5629 | CONTACTOR - heater (12V, in control box) | 1 | |
| 41-361 | CONTACTOR - heater (24V, in control box) | 1 | ||
| 44-9389 | DIODE - contactor | 1 | ||
| 44-2756 | DIODE - contactor | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 44-9391 | RELAY (12V, 1pst) | 1 | ||
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 44-9392 | RELAY (24V, 1pst) | 1 | ||
| 12 | 91-2363 | BRACKET - valve | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 13 | 41-7598 | VALVE - solenoid (12V, see 147A1) | 1 | |
| 41-7599 | VALVE - solenoid (water, 24V, see 147A1) | 1 | ||
| 55-6788 | U-BOLT - valve | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 14 | 66-6735 | TUBE - valve to coil | 1 | |
| 15 | 55-7491 | ADAPTER (1/2 sld, 3/4 mpt) | 1 | |
| 16 | 55-6787 | ELBOW | 1 |
