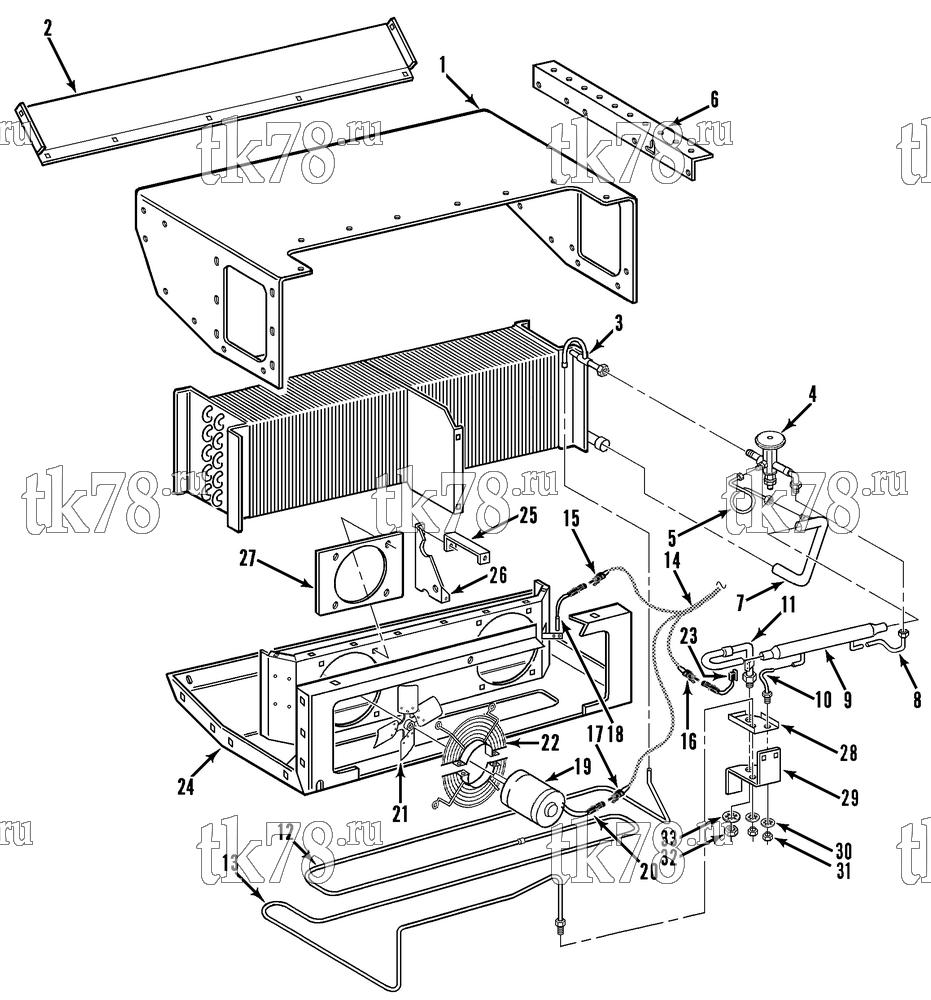

Установкa Thermo King CBci2 & CB MAX схема EVAPORATOR GROUP (6/92 to 6/95) – 109B1
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4304 | HOUSING - evaporator | 1 | |
| 55-1587 | SCREW - housing | 22 | ||
| 55-1800 | LOCKWASHER | 22 | ||
| 55-2086 | FLATWASHER | 22 | ||
| 55-3059 | NUT - captive | 22 | ||
| 2 | 98-4305 | COVER - access (rear) | 1 | |
| 3 | 67-841 | COIL - evaporator | 1 | |
| 55-3059 | NUT - captive | 4 | ||
| 33-1084 | GROMMET - distributor | 1 | ||
| 55-1587 | SCREW - coil | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 4 | 66-5016 | VALVE - expansion | 1 | |
| 66-5335 | ELEMENT - power | 1 | ||
| 61-811 | SCREEN - inlet | 1 | ||
| 203-534 | TAPE - insulating | A/R | ||
| 5 | 66-5823 | TUBE - equalizer | 1 | |
| 6 | 91-4497 | BRACKET - evaporator (curbside) | 1 | |
| 91-4498 | BRACKET - evaporator (roadside) | 1 | ||
| 55-1587 | SCREW - bracket | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 8 | ||
| 7 | 66-5989 | TUBE - evaporator to exchanger | 1 | |
| 66-874 | FITTING - flare | 1 | ||
| 8 | 66-5988 | TUBE - exchanger to expansion valve | 1 | |
| 9 | 67-351 | HEAT EXCHANGER | 1 | |
| 10 | 66-5990 | TUBE - liquid (inlet) | 1 | |
| 55-6036 | ADAPTER - bulkhead | 1 | ||
| 11 | 66-6731 | TUBE - suction | 1 | |
| 55-6810 | ADAPTER - bulkhead | 1 | ||
| 12 | 66-4614 | TUBE - defrost (roadside) | 1 | |
| 13 | 66-6732 | TUBE - defrost (curbside) | 1 | |
| 66-6036 | ADAPTER - bulkhead | 1 | ||
| 14 | 44-9840 | HARNESS (evaporator to undermount condenser) | 1 | |
| 15 | 44-9569 | CONNECTOR - shroud (3-pin) | 1 | |
| 16 | 44-7327 | CONNECTOR - tower (1-pin) | 1 | |
| 17 | 44-5838 | CONNECTOR (2-pin, female) | 1 | |
| 18 | 44-8469 | SENSOR - thermometer (F) | 1 | |
| 44-8468 | SENSOR - thermometer (C) | 1 | ||
| 55-547 | CLAMP - sensor | 2 | ||
| 55-2991 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 19 | 41-436 | MOTOR - fan (24V, see 87D1) | 2 | |
| 44-8526 | MOTOR - fan (12V see 87D1) | 2 | ||
|
10-44-8526 | Электромотор вентилятора 12V | 29 070 ₽ |
|
| 55-2979 | SCREW - motor | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 20 | 44-5835 | CONNECTOR (2-pin) | 2 | |
| 44-5139 | TERMINAL - fingrip (14-16 gauge) | 4 | ||
| 21 | 78-808 | FAN | 2 | |
| 91-4388 | BUSHING (adapts 3/8 bore fan to 5/16 shaft motor) | 1 | ||
| 22 | 91-628 | MOUNT & SCREEN - motor | 4 | |
| 99-4520 | STRIP (neoprene) | 4 | ||
| 23 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-1844 | SCREW - switch | 2 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2990 | NUT | 2 | ||
| 24 | 98-4891 | BASE - evaporator drain pan | 1 | |
| 25 | 91-3154 | BRACKET - evaporator (horizontal) | 1 | |
| 26 | 91-3153 | BRACKET - evaporator (vertical) | 1 | |
| 27 | 98-3123 | ORIFICE - fan | 2 | |
| 55-2957 | SCREW - orifice | 8 | ||
| 55-3045 | WASHER - dome | 8 | ||
| 28 | 91-3032 | PLATE - locking | 1 | |
| 29 | 91-3031 | BRACKET - tube | 1 | |
| 30 | 55-6843 | LOCKWASHER | 2 | |
| 31 | 55-6780 | NUT - bulkhead adapter (liquid/defrost) | 2 | |
| 32 | 55-6781 | NUT - bulkhead adapter (suction) | 1 | |
| 33 | 55-7045 | LOCKWASHER | 1 | |
| 33-1015 | O-RING (3/8) | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 33-2115 | O-RING (5/8) | 1 |
