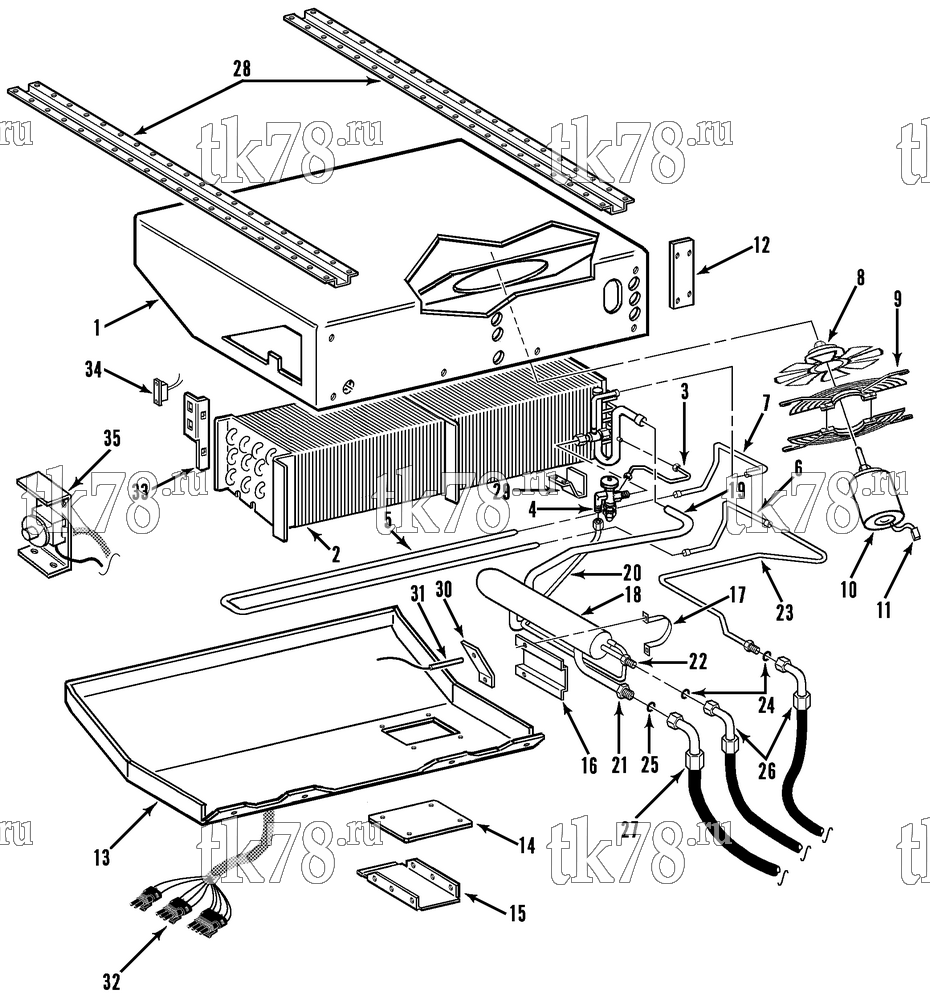

Установкa Thermo King CBci, CBci2 & CB схема EVAPORATOR COMPONENTS (CEILING MOUNT) – 95B9
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3617 | HOUSING - evaporator | 1 | |
| 33-810 | GROMMET (3/4 id) | 1 | ||
| 33-452 | GROMMET (7/8 id) | 1 | ||
| 33-572 | GROMMET (3/4 id) | 1 | ||
| 33-428 | GROMMET (1/2 id) | 1 | ||
| 33-451 | GROMMET (3/8 id) | 1 | ||
| 2 | 67-908 | COIL - evaporator | 1 | |
| 55-3059 | NUT - captive | 6 | ||
| 33-314 | GROMMET | 2 | ||
| 3 | 66-5282 | TUBE - equalizer | 1 | |
| 4 | 66-5281 | VALVE - expansion (R12) | 1 | |
| 61-811 | SCREEN - inlet | 1 | ||
| 66-5335 | ELEMENT - power | 1 | ||
| 203-534 | TAPE - insulating | A/R | ||
| 5 | 66-5553 | TUBE - defrost | 1 | |
| 99-3612 | CLAMP - defrost tube | 1 | ||
| 55-1587 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 6 | 66-5552 | TUBE - defrost | 1 | |
| 7 | 66-5551 | TUBE - defrost | 1 | |
| 33-428 | GROMMET - defrost tube | 6 | ||
| 8 | 78-762 | FAN - evaporator | 2 | |
| 55-2899 | SCREW - fan (set) | 2 | ||
| 91-4388 | BUSHING (adapts 3/8 bore fan to 5/16 shaft motor) | 1 | ||
| 99-4520 | STRIP (neoprene) | 2 | ||
| 9 | 91-1296 | GUARD - fan | 2 | |
| 55-2977 | SCREW - guard | 8 | ||
| 55-2945 | WASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 10 | 44-8526 | MOTOR - fan (12V, see 87D1) | 2 | |
|
10-44-8526 | Электромотор вентилятора 12V | 29 070 ₽ |
|
| 41-436 | MOTOR - fan (24V, see 87D1) | 2 | ||
| 55-1587 | SCREW - motor | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT (hexstop) | 4 | ||
| 11 | 44-5573 | CONNECTOR - motor (2-pin, female) | 2 | |
| 44-5139 | TERMINAL - fingrip (14-16 gauge) | 4 | ||
| 12 | 91-2396 | PLATE - blockoff | 1 | |
| 55-2991 | SCREW - plate | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT (hexstop) | 4 | ||
| 13 | 98-3618 | PAN - drain | 1 | |
| 55-1587 | SCREW - drain pan | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-3570 | NUT - captive | 4 | ||
| 14 | 91-1291 | COVER - access | 1 | |
| 55-5636 | SCREW - cover | 4 | ||
| 15 | 91-1294 | PAN - housing | 1 | |
| 55-1587 | SCREW - pan | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 16 | 91-2398 | BRACKET - heat exchanger | 1 | |
| 17 | 91-2399 | CLAMP - heat exchanger | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-3059 | NUT - captive | 2 | ||
| 18 | 67-928 | HEAT EXCHANGER | 1 | |
| 19 | 66-5726 | TUBE - header to exchanger | 1 | |
| 20 | 66-5724 | TUBE - exchanger to expansion valve | 1 | |
| 21 | 66-5725 | TUBE - exchanger to suction adapter | 1 | |
| 55-6810 | ADAPTER - bulkhead (suction) | 1 | ||
| 55-6811 | NUT - adapter | 1 | ||
| 22 | 66-5727 | TUBE - exchanger to liquid line adapter | 1 | |
| 55-3036 | ADAPTER - bulkhead (liquid) | 1 | ||
| 55-6780 | NUT - adapter | 1 | ||
| 23 | 66-5723 | TUBE - defrost to bulkhead | 1 | |
| 55-6809 | ADAPTER - bulkhead (defrost) | 1 | ||
| 55-6780 | NUT - adapter | 1 | ||
| 24 | 33-1015 | O-RING - liquid/defrost | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 25 | 33-2115 | O-RING - suction | 1 | |
| 26 | 66-5718 | HOSE - liquid/defrost | 2 | |
| 55-6724 | FITTING - hose | 2 | ||
| 27 | 66-5728 | HOSE - suction | 1 | |
| 55-6725 | FITTING - hose | 1 | ||
| 28 | 98-3851 | CHANNEL - evaporator | 2 | |
| 91-2400 | BOLTSTRIP - evaporator | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-4955 | NUT (hexstop) | 4 | ||
| 29 | 91-1292 | BRACKET - distributor | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 30 | 99-4508 | BRACKET - thermometer bulb | 1 | |
| 55-2991 | SCREW - bracket | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT (hexstop) | 1 | ||
| 31 | 44-8000 | SENSOR - thermometer (F) | 1 | |
| 44-1979 | SENSOR - thermometer (C) | 1 | ||
| 55-547 | CLAMP - sensor | 2 | ||
| 55-2991 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT (hexstop) | 1 | ||
| 32 | 44-8786 | HARNESS - evaporator | 1 | |
| 44-7880 | CONNECTOR - shroud (4-pin) | 1 | ||
| 44-5835 | CONNECTOR - shroud (2-pin) | 1 | ||
| 44-3727 | CONNECTOR - tower (1 way) | 1 | ||
| 44-6519 | CONNECTOR (2-pin, female) | 2 | ||
| 33 | 91-1290 | BRACKET - evaporator coil | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-3570 | NUT - captive | 4 | ||
| 34 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 35 | 44-6369 | THERMOSTAT (F) | 1 | |
| 44-6396 | THERMOSTAT (C) | 1 | ||
| 33-314 | GROMMET | 2 | ||
| 55-2991 | SCREW - plate | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT (hexstop) | 4 |
