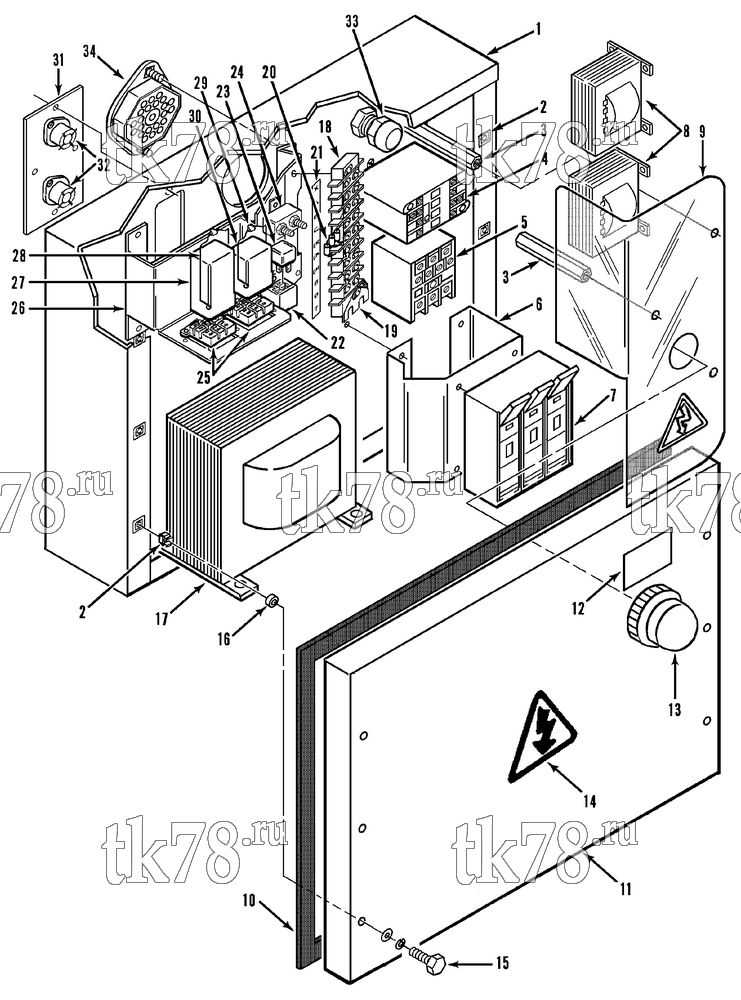

Установкa Thermo King CBci, CBci2 & CB схема CONTROL BOX (20s SINGLE PHASE, Before 6/92) – 87D2
Обновление от: 1/29/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-966 | BOX - control (only) | 1 | |
| 2 | 55-3059 | NUT - captive | 6 | |
| 3 | 91-726 | STANDOFF - high voltage cover | 3 | |
| 55-3028 | WASHER - sealing | 3 | ||
| 55-5046 | SCREW - standoff/cover | 6 | ||
| 55-2993 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 4 | 41-5629 | CONTACTOR (12V) | 1 | |
| 41-361 | CONTACTOR (24V) | 1 | ||
| 44-2756 | DIODE - assembly (contactor) | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 55-2974 | SCREW - contactor | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 5 | 41-5621 | RELAY - overload (motor, 230/1/50-60) | 1 | |
| 44-7191 | ADAPTER - overload relay | 1 | ||
| 55-5974 | SCREW - relay | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 6 | 91-967 | BRACKET - terminal board/fuse (before 10/89) | 1 | |
| 91-1613 | BRACKET - terminal board/fuse (after 10/89) | 1 | ||
| 55-5974 | SCREW - bracket | 4 | ||
| 55-3800 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 7 | 44-7909 | FUSE (4 amp, before 10/89) | 3 | |
| 40-1004 | HOLDER - fuse | 3 | ||
| 44-8417 | FUSE (12 amp, after 10/89) | 2 | ||
| 44-8461 | HOLDER - fuse | 2 | ||
| 44-8460 | BARRIER - fuse holder | 1 | ||
| 8 | 44-3956 | CHOKE - reactor filter | 2 | |
| 9 | 91-968 | COVER - high voltage | 1 | |
| 99-7834 | NAMEPLATE - Caution | 1 | ||
| 10 | 33-1945 | GASKET - cover | 1 | |
| 11 | 91-973 | COVER - control box | 1 | |
| 91-974 | NAMEPLATE - component location | 1 | ||
| 12 | 99-8525 | NAMEPLATE - Electric Motor Reset | 1 | |
| 13 | 92-8854 | BUTTON - reset | 1 | |
| 14 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 15 | 55-2979 | SCREW - cover | 4 | |
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 16 | 99-8889 | SPACER - cover | 4 | |
| 17 | 44-6859 | TRANSFORMER (230/1/50-60) | 1 | |
| 18 | 44-4186 | BOARD - terminal | 1 | |
| 44-3579 | STRIP - jumper | 2 | ||
| 55-6390 | SCREW - board | 2 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 19 | 44-7522 | JUMPER - defrost | 1 | |
| 20 | 44-6860 | DIODE - assembly | 1 | |
| 44-5763 | DIODE - only | 3 | ||
| 21 | 91-971 | MARKSTRIP | 1 | |
| 22 | 44-5537 | SOCKET - relay | 1 | |
| 55-3015 | SCREW - socket | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 23 | 44-9391 | RELAY - mini (12V) | 1 | |
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 44-9392 | RELAY - mini (24V) | 1 | ||
| 24 | 44-6991 | BREAKER - circuit (12V) | 1 | |
| 44-7993 | BREAKER - circuit (24V) | 1 | ||
| 55-3015 | SCREW - breaker | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 25 | 44-3184 | SOCKET - relay | 2 | |
| 26 | 91-970 | BRACKET - terminal board/relay | 1 | |
| 55-5974 | SCREW - bracket | 4 | ||
| 55-3800 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 27 | 44-7531 | TIMER - defrost | 1 | |
|
10-44-7531 | Таймер оттайки | 17 150 ₽ |
|
| 28 | 99-8475 | HOLDDOWN - timer | 1 | |
| 29 | 99-2027 | SPRING - relay holddown | 1 | |
| 55-2771 | CLAMP - relay holddown | 2 | ||
| 55-2270 | RIVET - clamp | 4 | ||
| 30 | 44-3186 | RELAY (3pdt, 12V) | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 44-4025 | RELAY (3pdt, 24V) | 1 | ||
| 31 | 91-969 | BRACKET - rectifier | 1 | |
| 55-5974 | SCREW - bracket | 4 | ||
| 55-3023 | WASHER - sealing | 4 | ||
| 32 | 41-363 | RECTIFIER | 2 | |
| 55-3256 | SCREW - rectifier | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 33 | 55-6141 | CONNECTOR (liquid tite) | 1 | |
| 55-2635 | NUT | 1 | ||
| 34 | 44-7829 | CONNECTOR - tower (22-pin) | 1 | |
| 44-7812 | PLUG - cavity (green) | 1 | ||
| 44-7811 | LOCK - secondary connector | 1 | ||
| 99-3427 | MOUNT - cable tie | 1 |
