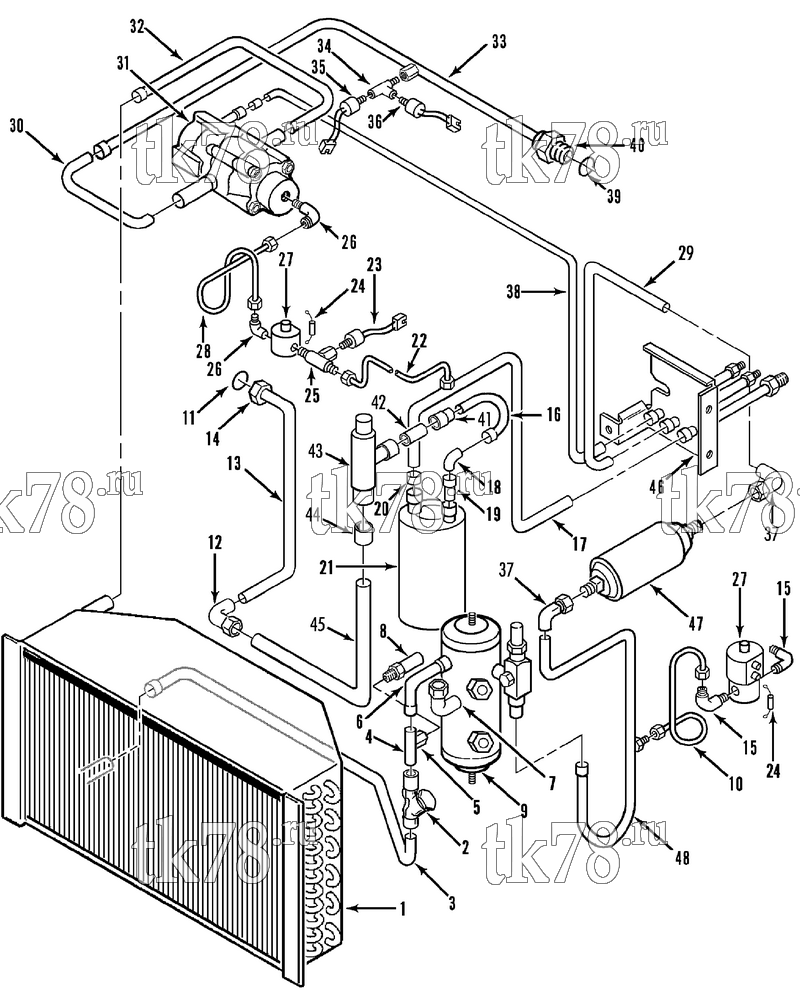

Установкa Thermo King CBci, CBci2 & CB схема REFRIGERATION - CONDENSER (10s, Before 6/91) – 87C13
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-890 | COIL - condenser | 1 | |
| 55-3059 | NUT - captive | 14 | ||
| 55-1587 | SCREW - coil | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 2 | 66-3655 | VALVE - check (see 9G12) | 1 | |
| 3 | 66-5110 | TUBE - coil to valve | 1 | |
| 4 | 66-5109 | TUBE - check valve to elbow | 1 | |
| 5 | 55-3295 | FITTING - saddle | 1 | |
| 6 | 55-2183 | ELBOW - receiver | 1 | |
| 7 | 55-5422 | ELBOW - receiver | 1 | |
| 8 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 9 | 67-863 | TANK - receiver | 1 | |
| 55-4955 | NUT - receiver | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 10 | 66-5121 | TUBE - dehydrator to liquid injection solenoid | 1 | |
| 11 | 33-1222 | O-RING - suction hose to engine | 1 | |
| 12 | 66-2244 | ELBOW | 1 | |
| 13 | 66-5106 | TUBE - suction to engine | 1 | |
| 14 | 55-6354 | ADAPTER - tube | 1 | |
| 55-6812 | NUT - adapter (1-3/16-12) | 1 | ||
| 15 | 55-4489 | ELBOW | 2 | |
| 16 | 66-5347 | TUBE - cpr inlet | 1 | |
| 17 | 66-5112 | TUBE - accumulator inlet | 1 | |
| 66-874 | FITTING (1/4 fl) | 1 | ||
| 18 | 55-2244 | ELBOW | 1 | |
| 19 | 66-6295 | TUBE - accumulator outlet | 1 | |
| 20 | 55-2705 | BUSHING | 1 | |
| 21 | 67-891 | TANK - accumulator | 1 | |
| 55-4955 | NUT - tank | 1 | ||
| 55-2641 | FLATWASHER | 1 | ||
| 22 | 66-5104 | TUBE - pilot solenoid to suction | 1 | |
| 23 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 33-768 | GASKET - switch | 1 | ||
| 24 | 44-2756 | DIODE - assembly | 2 | |
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 25 | 55-2526 | TEE | 1 | |
| 26 | 55-308 | ELBOW | 1 | |
| 27 | 66-2009 | VALVE - pilot solenoid (12V, liquid injection) | 2 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - valve (3/8 bore) | 2 | ||
| 41-1525 | COIL - valve (7/16 bore) | 2 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 66-2088 | VALVE - pilot solenoid (24V, liquid injection) | 2 | ||
| 41-325 | COIL - valve (3/8 bore) | 1 | ||
| 44-6158 | COIL - valve (7/16 bore) | 1 | ||
| 91-887 | SUPPORT - valve | 2 | ||
| 55-3029 | SCREW - valve | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-8786 | NUT - valve | 1 | ||
| 28 | 66-5195 | TUBE - 3-way to pilot solenoid | 1 | |
| 29 | 66-5115 | TUBE - dehydrator to bulkhead | 1 | |
| 30 | 66-5118 | TUBE - 3-way inlet | 1 | |
| 31 | 61-1237 | VALVE - 3-way (see 109D1) | 1 | |
| 55-3618 | SCREW - valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 32 | 66-5110 | TUBE - 3-way to condenser | 1 | |
| 33 | 66-6650 | TUBE - discharge (compressor) | 1 | |
| 66-4139 | FITTING - saddle | 1 | ||
| 34 | 55-665 | TEE | 1 | |
| 35 | 44-8028 | SWITCH - condenser fan | 1 | |
| 44-7991 | SWITCH - only | 1 | ||
| 36 | 44-7992 | SWITCH - hpco (R12) | 1 | |
| 44-8064 | SWITCH - hpco (R502) | 1 | ||
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 37 | 66-4829 | FITTING - elbow | 2 | |
| 38 | 66-5114 | TUBE - hot gas | 1 | |
| 39 | 33-566 | O-RING - discharge hose | 1 | |
| 40 | 55-6392 | ADAPTER - discharge | 1 | |
| 55-3247 | BUSHING - tube to adapter | 1 | ||
| 55-6393 | NUT - adapter (13/16-16) | 1 | ||
| 60-229 | KIT - cpr valve | 1 | ||
| 41 | 66-509 | BUSHING | 1 | |
| 42 | 66-5347 | TUBE - bushing to valve | 1 | |
| 43 | 66-5013 | VALVE - cpr | 1 | |
| 44 | 66-6179 | BUSHING | 1 | |
| 45 | 66-8188 | TUBE - outlet | 1 | |
| 46 | 66-5113 | BRACKET & TUBES (nosemount) | 1 | |
| 55-6400 | ADAPTER - bulkhead (suction) | 1 | ||
| 55-6399 | ADAPTER - bulkhead (liquid/defrost) | 2 | ||
| 66-5729 | BRACKET & TUBES (undermount) | 1 | ||
| 55-6786 | ADAPTER - bulkhead (suction) | 1 | ||
| 55-6036 | ADAPTER - bulkhead (liquid/defrost) | 2 | ||
| 55-2977 | SCREW - bracket | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-4953 | NUT | 3 | ||
| 47 | 66-4729 | DEHYDRATOR | 1 | |
|
10-66-4729 | Дегидратор, SB-I/II/III | 3 890 ₽ |
|
| 55-2688 | CLAMP - dehydrator | 1 | ||
| 48 | 66-5108 | TUBE - receiver to dehydrator | 1 | |
| 66-874 | FITTING - saddle | 1 |
