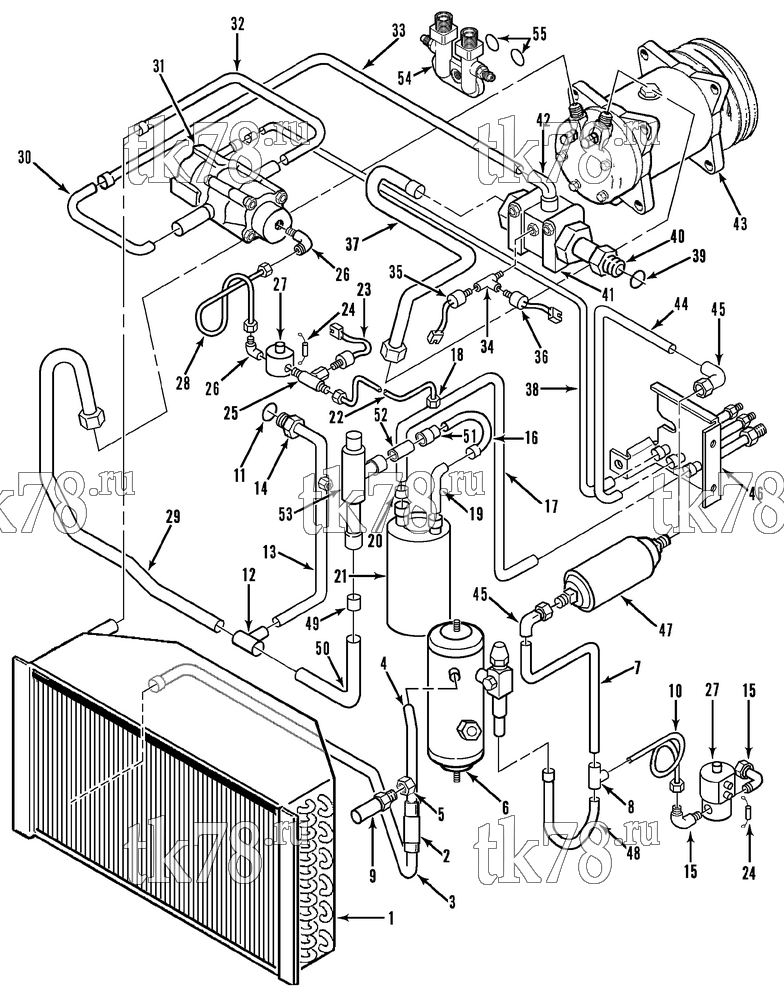

Установкa Thermo King CBci, CBci2 & CB схема REFRIGERATION - CONDENSER (20s, 3/93 & After) – 113C1
Обновление от: 10/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-890 | COIL - condenser | 1 | |
| 55-3059 | NUT - captive | 15 | ||
| 55-1587 | SCREW - coil | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 2 | 66-5722 | VALVE - check | 1 | |
| 3 | 66-6290 | TUBE - coil to valve | 1 | |
| 4 | 66-6613 | TUBE - check valve to elbow | 1 | |
| 5 | 55-3295 | FITTING - saddle | 1 | |
| 6 | 67-1180 | TANK - receiver | 1 | |
| 66-2170 | CAP - valve | 2 | ||
| 55-4955 | NUT - receiver | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 7 | 66-6287 | TUBE - tee to dehydrator (before 11/92) | 1 | |
| 66-6726 | TUBE - tee to dehydrator (after 11/92) | 1 | ||
| 8 | 55-6402 | TEE | 1 | |
| 9 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 10 | 66-6299 | TUBE - dehydrator to liquid injection solenoid | 1 | |
| 11 | 33-1222 | O-RING - suction hose to engine | 1 | |
| 12 | 66-2319 | TEE | 1 | |
| 13 | 66-5169 | TUBE - suction to engine | 1 | |
| 66-6996 | FITTING - saddle | 1 | ||
| 66-5859 | VALVE | 1 | ||
| 14 | 55-6354 | ADAPTER - tube | 1 | |
| 55-6812 | NUT - adapter | 1 | ||
| 15 | 55-4489 | ELBOW | 2 | |
| 16 | 66-5347 | TUBE - cpr inlet | 1 | |
| 17 | 66-5112 | TUBE - accumulator inlet | 1 | |
| 18 | 66-874 | FITTING (1/4 fl) | 1 | |
| 19 | 66-6295 | TUBE - accumulator outlet | 1 | |
| 20 | 55-2705 | BUSHING | 1 | |
| 21 | 67-891 | TANK - accumulator | 1 | |
| 55-4955 | NUT - tank | 1 | ||
| 55-2641 | FLATWASHER | 1 | ||
| 22 | 66-5104 | TUBE - pilot solenoid to suction | 1 | |
| 23 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 33-768 | GASKET - switch | 1 | ||
| 24 | 44-2756 | DIODE - assembly | 1 | |
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 44-8574 | HARNESS - pilot solenoid (CH) | 1 | ||
| 25 | 55-2526 | TEE | 1 | |
| 26 | 55-308 | ELBOW | 1 | |
| 27 | 66-2009 | VALVE - liquid injection (12V) | 2 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - valve (3/8 bore) | 2 | ||
| 41-1525 | COIL - valve (7/16 bore) | 2 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 66-2088 | VALVE - liquid injection (24V) | 2 | ||
| 41-325 | COIL - valve (3/8 bore) | 2 | ||
| 44-6158 | COIL - valve (7/16 bore) | 1 | ||
| 91-887 | SUPPORT - valve | 2 | ||
| 55-3029 | SCREW - valve | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 28 | 66-5195 | TUBE - 3-way to pilot solenoid | 1 | |
| 29 | 66-5263 | TUBE - suction to compressor (R12) | 1 | |
| 66-6990 | TUBE - suction to compressor (R134a) | 1 | ||
| 33-672 | GASKET - flare | 1 | ||
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 30 | 66-5118 | TUBE - 3-way inlet | 1 | |
| 31 | 61-1237 | VALVE - 3-way (see 109D1) | 1 | |
| 55-3618 | SCREW - valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 32 | 66-5120 | TUBE - 3-way to condenser | 1 | |
| 33 | 66-6614 | TUBE - check valve outlet | 1 | |
| 34 | 55-665 | TEE | 1 | |
| 35 | 44-8028 | SWITCH - condenser fan | 1 | |
| 44-7991 | SWITCH - only | 1 | ||
| 36 | 44-7992 | SWITCH - hpco (R12, R134a) | 1 | |
| 44-8064 | SWITCH - hpco (R502) | 1 | ||
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 41-3846 | SWITCH - hpco (R404A) | 1 | ||
| 37 | 66-5264 | TUBE - compressor discharge check valve (Sanden compressor) | 1 | |
| 66-6989 | TUBE - compressor discharge check valve (Zexel/Seltec compressor) | 1 | ||
| 33-2350 | GASKET - flare | 1 | ||
| 55-4953 | NUT | 4 | ||
| 38 | 66-5114 | TUBE - hot gas | 1 | |
| 55-1804 | BUSHING - tube to 3-way | 1 | ||
| 39 | 33-566 | O-RING - discharge hose | 1 | |
| 40 | 55-6355 | ADAPTER - discharge | 1 | |
| 41 | 66-5020 | VALVE - check (see 87C12) | 1 | |
| 55-4811 | SCREW - valve | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 42 | 55-3441 | ELBOW | 1 | |
| 43 | 102-349 | COMPRESSOR (Sanden, see 95B14) | 1 | |
| 102-1028 | COMPRESSOR - 15XD (12V, Zexel, see note) | 1 | ||
| 102-839 | COMPRESSOR - TM15-XD (24V, Zexel, see note, Seltec, see 133F14) | 1 | ||
| 44 | 66-5115 | TUBE - dehydrator to bulkhead (before 11/92) | 1 | |
| 66-6727 | TUBE - dehydrator to bulkhead (after 11/92) | 1 | ||
| 55-6837 | SHOULDER (o-ring seal) | 1 | ||
| 55-6838 | NUT - shoulder (o-ring seal) | 1 | ||
| 45 | 66-4829 | FITTING - elbow (before 11/92) | 2 | |
| 55-3247 | BUSHING - tube to adapter (before 11/92) | 1 | ||
| 55-3250 | ELBOW - dehydrator inlet (after 11/92) | 1 | ||
| 55-7505 | BUSHING - elbow | 1 | ||
| 55-6356 | SHOULDER (o-ring seal fitting) | 1 | ||
| 55-6396 | NUT - shoulder | 1 | ||
| 46 | 66-5113 | BRACKET & TUBES (nosemount) | 1 | |
| 55-6400 | ADAPTER - suction | 1 | ||
| 55-6399 | ADAPTER - liquid/defrost | 2 | ||
| 66-5729 | BRACKET & TUBES (undermount) | 1 | ||
| 55-6786 | ADAPTER - suction | 1 | ||
| 55-6036 | ADAPTER - liquid/defrost | 2 | ||
| 33-2115 | O-RING - suction (5/8 od) | 1 | ||
| 33-1015 | O-RING - discharge/defrost (3/8 od) | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 55-2977 | SCREW - bracket | 3 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 3 | ||
| 47 | 66-4729 | DEHYDRATOR (flare, before 11/92) | 1 | |
|
10-66-4729 | Дегидратор, SB-I/II/III | 3 890 ₽ |
|
| 61-600 | DEHYDRATOR (o-ring seal, after 11/92) | 1 | ||
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 33-2115 | O-RING - dehydrator inlet (5/8) | 1 | ||
| 33-566 | O-RING - dehydrator outlet (1/2) | 1 | ||
| 55-2688 | CLAMP - dehydrator | 1 | ||
| 48 | 66-6288 | TUBE - receiver to dehydrator | 1 | |
| 66-874 | FITTING - saddle | 1 | ||
| 60-226 | KIT - cpr valve | 1 | ||
| 49 | 55-6387 | BUSHING | 1 | |
| 50 | 66-8188 | TUBE - outlet | 1 | |
| 51 | 66-509 | BUSHING | 1 | |
| 52 | 66-5347 | TUBE - bushing to valve | 1 | |
| 53 | 66-5013 | VALVE - cpr | 1 | |
| 54 | 22-992 | MANIFOLD - compressor (Seltec, 90 deg, w/ o-rings) | 1 | |
|
10-22-992 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 55 | 33-2882 | O-RING - manifold | 2 |
