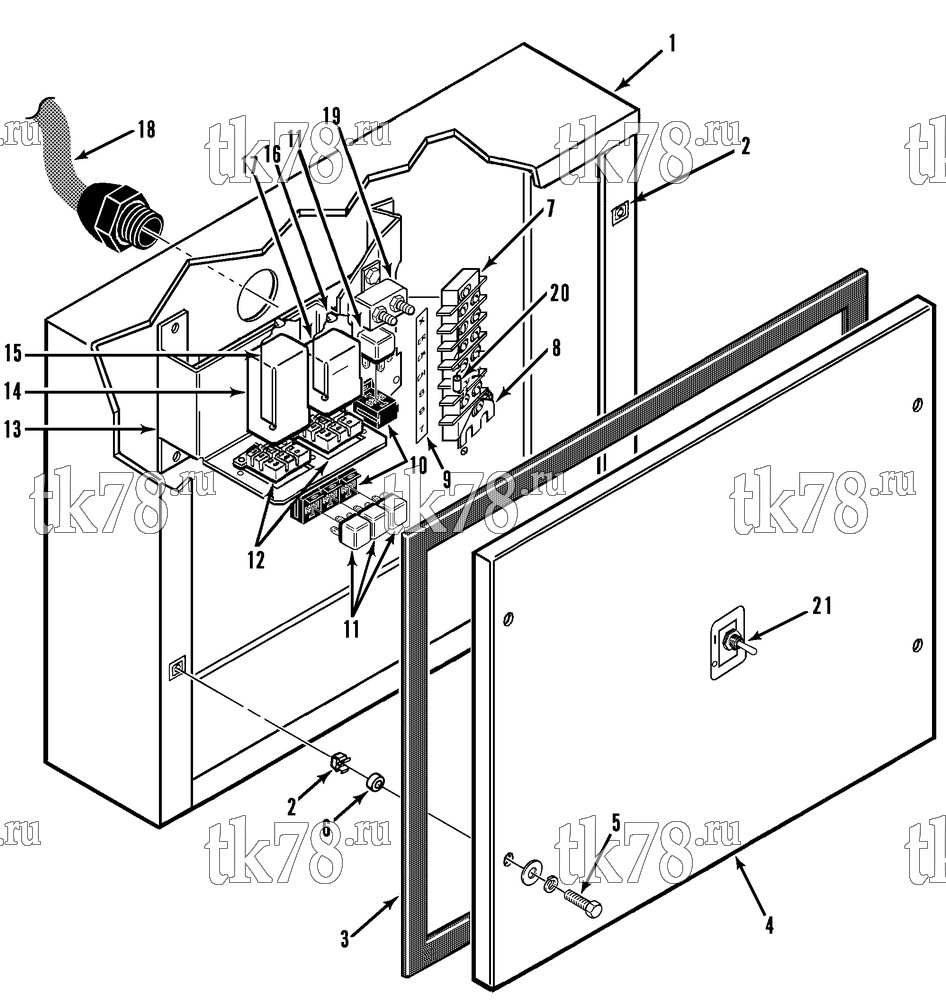

Установкa Thermo King CBci, CBci2 & CB схема CONTROL BOX (10s, 6/92 & After) – 107G11
Обновление от: 10/21/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3720 | BOX - control (only) | 1 | |
| 2 | 55-3059 | NUT - captive | 6 | |
| 3 | 33-1945 | GASKET - cover | 1 | |
| 4 | 91-4315 | COVER - control box | 1 | |
| 5 | 55-2979 | SCREW - cover | 4 | |
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 6 | 99-8889 | SPACER - cover | 4 | |
| 7 | 44-2558 | BOARD - terminal | 1 | |
| 44-3579 | STRIP - jumper | 2 | ||
| 55-6390 | SCREW - board | 2 | ||
| 55-2998 | LOCKWASHER | 2 | ||
| 8 | 44-7522 | JUMPER - defrost | 1 | |
| 9 | 91-3721 | MARKSTRIP | 1 | |
| 10 | 44-5537 | SOCKET - relay | 4 | |
| 55-5975 | SCREW - socket | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 44-5763 | DIODE - mini relay (socket) | 3 | ||
| 11 | 44-9391 | RELAY - mini (12V) | 4 | |
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 44-9392 | RELAY - mini (24V) | 4 | ||
| 12 | 44-3184 | SOCKET - relay | 2 | |
| 13 | 91-970 | BRACKET - terminal board/relay | 1 | |
| 91-3644 | ANGLE - relay | 1 | ||
| 55-3443 | SCREW - bracket | 4 | ||
| 55-3800 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-3023 | WASHER - sealing | 4 | ||
| 14 | 44-7531 | TIMER - defrost | 1 | |
|
10-44-7531 | Таймер оттайки | 17 150 ₽ |
|
| 91-3642 | NAMEPLATE - defrost timer | 1 | ||
| 15 | 99-8475 | HOLDDOWN - timer | 1 | |
| 16 | 99-2027 | SPRING - holddown (relay) | 1 | |
| 55-2771 | CLAMP - holddown | 2 | ||
| 55-2270 | RIVET - holddown | 4 | ||
| 17 | 44-3186 | RELAY (3pdt, 12V) | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 44-4025 | RELAY (3pdt, 24V) | 1 | ||
| 91-3641 | NAMEPLATE - defrost relay | 1 | ||
| 18 | 41-525 | HARNESS - main (see 107F14) | 1 | |
| 99-3427 | MOUNT - cable tie | 1 | ||
| 19 | 44-6991 | BREAKER - circuit (12V) | 1 | |
| 44-7993 | BREAKER - circuit (24V) | 1 | ||
| 91-3643 | NAMEPLATE - CB-I/fan relay | 1 | ||
| 55-5975 | SCREW - breaker | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 20 | 44-9450 | DIODE | 1 | |
| 44-5763 | DIODE - only | 1 | ||
| 55-3843 | SCREW - diode | 2 | ||
| 55-2996 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 21 | 44-1196 | SWITCH - on/off | 1 | |
| 99-7642 | NAMEPLATE - On/Off | 1 |
