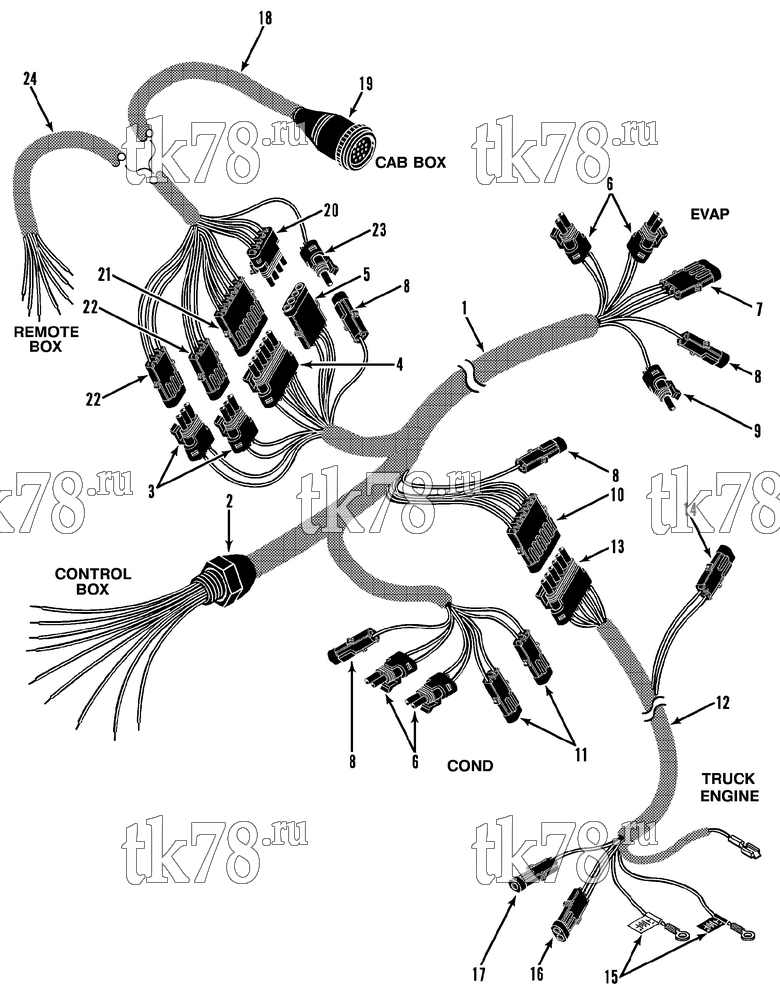

Установкa Thermo King CBci, CBci2 & CB схема HARNESS ASSEMBLIES (6/92 & After) – 107F14
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-525 | HARNESS - main | 1 | |
| 2 | 55-5112 | CONNECTOR - liquid tite | 1 | |
| 3 | 44-6959 | CONNECTOR - tower (3-pin) | 1 | |
| 4 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 5 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 6 | 44-5838 | CONNECTOR - tower (2-pin, female) | 4 | |
| 7 | 44-9569 | CONNECTOR - shroud (3-pin) | 1 | |
| 8 | 44-7330 | CONNECTOR - shroud (1-pin) | 3 | |
| 9 | 44-7327 | CONNECTOR - tower (1-pin) | 1 | |
| 10 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 11 | 44-5835 | CONNECTOR - shroud (2-pin, male) | 2 | |
| 12 | 41-524 | HARNESS - truck engine (assembly) | 1 | |
| 13 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 14 | 44-5835 | CONNECTOR - shroud (2-pin, male) | 1 | |
| 15 | 91-980 | NAMEPLATE - Battery (Negative) | 1 | |
| 91-979 | NAMEPLATE - Battery (Positive) | 1 | ||
| 16 | 44-5838 | CONNECTOR - tower (2-pin, female) | 4 | |
| 17 | 44-7330 | CONNECTOR - shroud (1-pin) | 1 | |
| 18 | 44-9381 | HARNESS - cab box | 1 | |
| 19 | 41-743 | CONNECTOR - round (14-pin) | 1 | |
| 44-8538 | CLAMP - cable | 1 | ||
| 20 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 21 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 22 | 44-9569 | CONNECTOR - shroud (3-pin) | 2 | |
| 23 | 44-7327 | CONNECTOR - tower (1-pin) | 1 | |
| 24 | 44-9722 | HARNESS - remote box | 1 |
