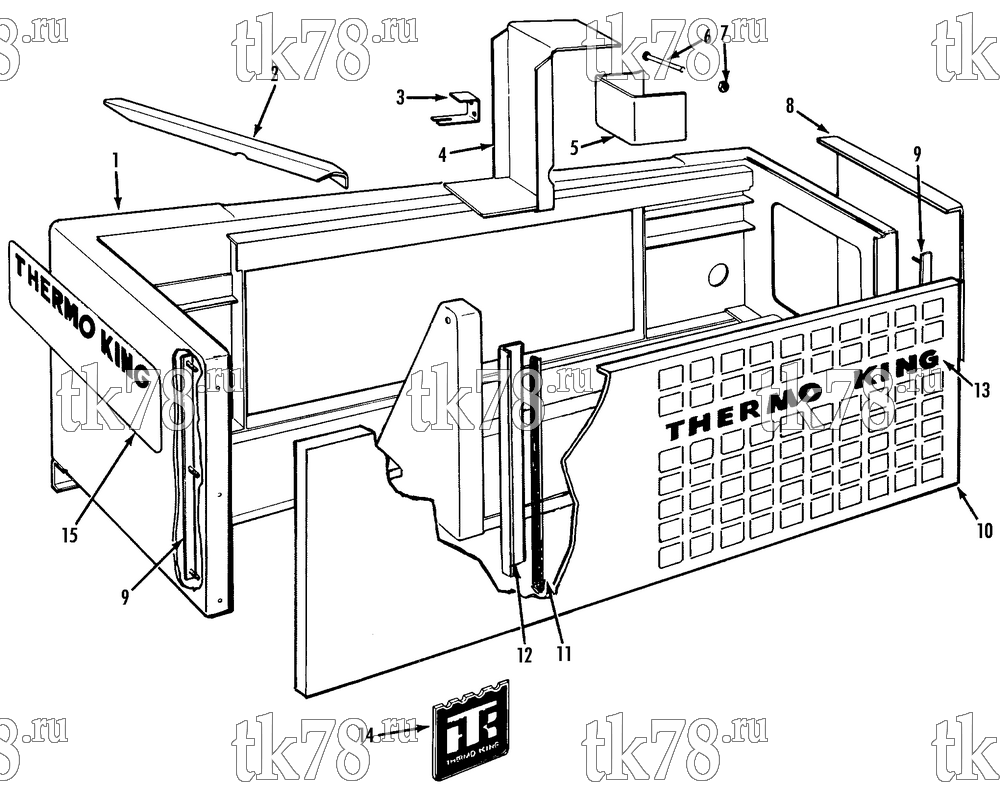

Установкa Thermo King CB-III схема STRUCTURAL COMPONENTS - CONDENSER – 82G5
Обновление от: 12/11/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2945 | FRAME - condenser | 1 | |
| 99-7025 | BOLTSTRIP - grille | 2 | ||
| 2 | 99-7078 | ANGLE - support | 1 | |
| 55-141 | SCREW - angle | 2 | ||
| 55-371 | FLATWASHER | 4 | ||
| 55-4967 | LOCKNUT | 2 | ||
| 3 | 99-7023 | BRACKET - receiver tank (top) | 1 | |
| 4 | 91-446 | SUPPORT - receiver tank | 1 | |
| 55-145 | SCREW - bracket | 8 | ||
| 55-411 | FLATWASHER | 8 | ||
| 55-4118 | LOCKNUT | 8 | ||
| 5 | 99-7673 | SUPPORT - dehydrator | 1 | |
| 6 | 55-4703 | BOLT - eye (dehydrator) | 1 | |
| 7 | 55-4118 | NUT (stop) | 1 | |
| 55-411 | FLATWASHER | 1 | ||
| 8 | 99-7964 | PANEL - end undermount | 1 | |
| 55-1587 | SCREW - panel | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 9 | 99-7025 | BOLTSTRIP - grille | 2 | |
| 10 | 98-2651 | GRILLE - condenser (skirt mounted) | 1 | |
| 55-4118 | NUT - grille | 6 | ||
| 55-411 | FLATWASHER | 6 | ||
| 11 | 99-1441 | EXTRUSION - rubber (baffle) | 1 | |
| 12 | 99-7744 | PANEL - baffle | 1 | |
| 13 | 99-7029 | NAMEPLATE - Thermo King | 1 | |
| 14 | 99-7031 | NAMEPLATE - TK | 1 | |
| 15 | 99-7079 | NAMEPLATE - City Boss | 1 | |
| 99-3624 | NAMEPLATE - TK Cold Line | 1 | ||
| 99-3064 | NAMEPLATE - Caution, Fan | 1 | ||
| 91-478 | NAMEPLATE - CB-III | 1 |
