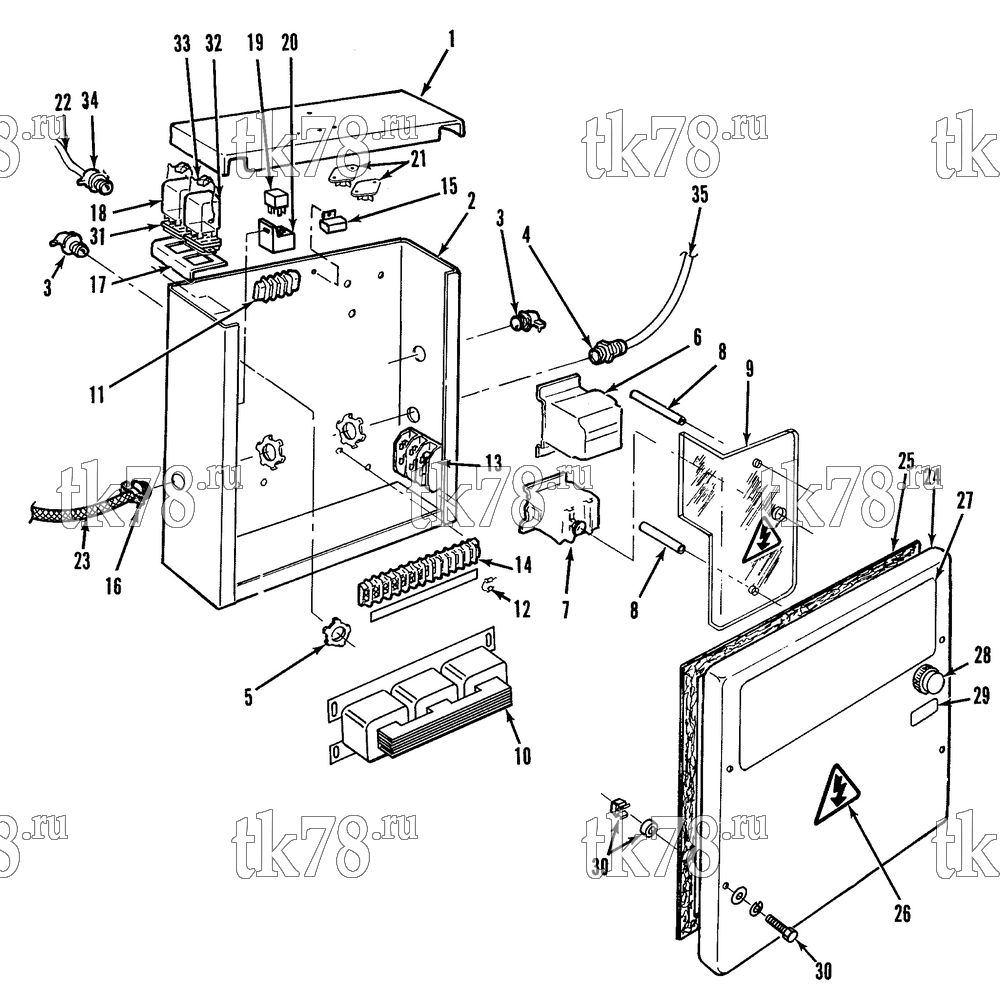

Установкa Thermo King CB-III схема CONTROL BOX (CB-III 20) – 82G3
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-8830 | PANEL - top | 1 | |
| 55-2995 | SCREW - panel | 2 | ||
| 55-2996 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4526 | NUT - captive | 2 | ||
| 2 | 98-3400 | BOX - control | 1 | |
| 55-2979 | SCREW - box | 4 | ||
| 55-4967 | NUT | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 3 | 99-261 | CONNECTOR - cable (3/8 id) | 2 | |
| 4 | 55-2789 | FITTING - barbed | 1 | |
| 33-144 | O-RING - fitting | 1 | ||
| 5 | 55-2635 | NUT | 1 | |
| 6 | 41-361 | CONTACTOR - motor (24V coil, heater optional) | A/R | |
| 41-5629 | CONTACTOR - motor (12V coil, heater optional) | A/R | ||
| 55-2989 | SCREW - contactor | 4 | ||
| 55-2201 | FLATWASHER | 8 | ||
| 55-4223 | NUT | 4 | ||
| 7 | 41-5624 | RELAY - overload (230/3/60) | 1 | |
| 41-5621 | RELAY - overload (220-230/1/50-60) | 1 | ||
| 41-5626 | RELAY - overload (380-460/3/50-60) | 1 | ||
| 8 | 91-407 | STANDOFF - high voltage cover | 2 | |
| 55-3319 | WASHER - sealing | 4 | ||
| 55-3021 | SCREW - cover | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 9 | 99-8831 | COVER - high voltage (3 phase) | 1 | |
| 99-8832 | COVER - high voltage (1 phase) | 1 | ||
| 99-7834 | NAMEPLATE - Caution | 1 | ||
| 10 | 44-6857 | TRANSFORMER (230-460/3/60) | 1 | |
| 44-6858 | TRANSFORMER (380-415/3/50) | 1 | ||
| 44-6859 | TRANSFORMER (220-230/1/50-60) | 1 | ||
| 55-1587 | SCREW - transformer | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 11 | 44-2558 | BOARD - terminal | 1 | |
| 99-8833 | MARKSTRIP | 1 | ||
| 55-4487 | SCREW - board | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 12 | 44-6860 | DIODE - assembly (3 phase) | 1 | |
| 44-6861 | DIODE - assembly (1 phase) | 1 | ||
| 13 | 44-5615 | HOLDER - fuse (3 phase) | 1 | |
| 44-5661 | FUSE (4 amp, 500V, 3 phase) | 3 | ||
| 55-4222 | SCREW - holder | 2 | ||
| 55-314 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 14 | 44-6190 | BOARD - terminal | 1 | |
| 44-4551 | BOARD - terminal (EMEIA) | 1 | ||
| 91-451 | MARKSTRIP | 1 | ||
| 91-607 | MARKSTRIP (EMEIA) | 1 | ||
| 55-4487 | SCREW - board | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 44-3579 | STRIP - jumper | 1 | ||
| 15 | 44-6145 | BREAKER - circuit (20 amp, 24VDC) | 1 | |
|
30-44-6145 | Предохранитель 20А | 1 320 ₽ |
|
| 44-6146 | BREAKER - circuit (40 amp, 12VDC) | 1 | ||
|
10-44-6146 | Автоматический выключатель, 40A | 2 220 ₽ |
|
| 99-8525 | NAMEPLATE - Electric Motor Reset | 1 | ||
| 55-3015 | SCREW - breaker | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 16 | 44-2386 | CONNECTOR - cable | 1 | |
| 17 | 99-7531 | BRACKET - socket | 1 | |
| 18 | 44-4025 | RELAY - defrost (24VDC) | 1 | |
| 44-3186 | RELAY - defrost (12VDC) | 1 | ||
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 99-2027 | SPRING - holddown | 1 | ||
| 19 | 44-9392 | RELAY - fan (24VDC) | 1 | |
| 44-9391 | RELAY - fan (12VDC) | 1 | ||
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 20 | 44-5537 | SOCKET - fan relay | 1 | |
| 21 | 44-3280 | RECTIFIER (36 amp) | 1 | |
| 55-4487 | SCREW - rectifier | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-2999 | NUT | 4 | ||
| 22 | 44-7666 | HARNESS - evaporator | 1 | |
| 44-6978 | HARNESS - evaporator (EMEIA) | 1 | ||
| 44-5719 | CONNECTOR (8-pin) | 1 | ||
| 23 | 44-6864 | HARNESS - condenser | 1 | |
| 44-6979 | HARNESS - condenser (EMEIA) | 1 | ||
| 24 | 99-8835 | COVER - control box | 1 | |
| 25 | 33-1685 | GASKET - cover | 1 | |
| 26 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 27 | 99-8836 | NAMEPLATE - TK | 1 | |
| 28 | 92-8854 | BUTTON - push (reset) | 1 | |
| 29 | 99-8525 | NAMEPLATE - Electric Motor Reset | 1 | |
| 30 | 55-2979 | SCREW - cover | 4 | |
| 99-8889 | SPACER - gasket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 31 | 44-3184 | SOCKET - relay (defrost) | 1 | |
| 32 | 44-7531 | TIMER - defrost | 1 | |
|
10-44-7531 | Таймер оттайки | 17 150 ₽ |
|
| 33 | 99-8475 | HOLDDOWN - timer | 1 | |
| 55-2771 | CLAMP | 2 | ||
| 34 | 55-3831 | CONNECTOR - cable | 1 | |
| 35 | 44-2859 | CABLE - power cord | 1 |
