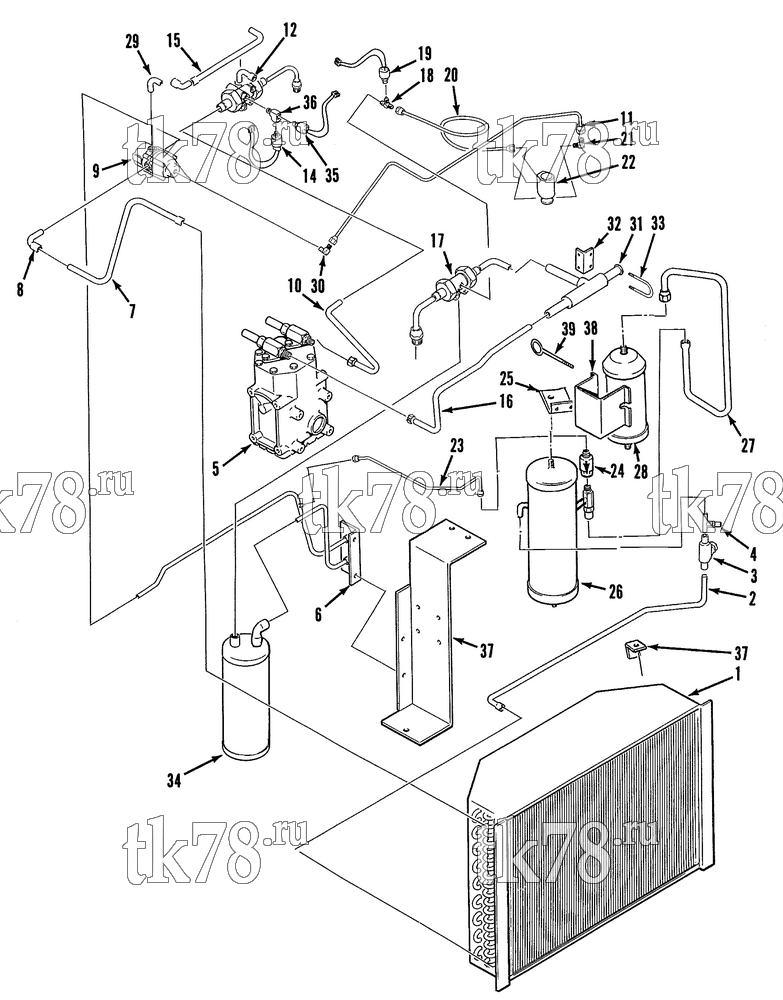

Установкa Thermo King CB-III схема REFRIGERATION COMPONENTS - CONDENSER (CB-II 20) – 82G1
Обновление от: 12/10/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-865 | COIL - condenser | 1 | |
| 55-3059 | NUT - speed | 6 | ||
| 55-538 | SCREW - condenser | 6 | ||
| 55-411 | FLATWASHER | 6 | ||
| 55-419 | LOCKWASHER | 6 | ||
| 2 | 66-4875 | TUBE - coil to receiver | 1 | |
| 3 | 66-3655 | VALVE - check (1/2 od) | 1 | |
| 4 | 55-3295 | FITTING - saddle | 1 | |
| 66-7392 | VALVE - relief | 1 | ||
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 5 | 20-176 | KIT - compressor w/valves (See 114F11) | 1 | |
| 6 | 66-4872 | PLATE - adapter & tube | 1 | |
| 55-3211 | ADAPTER - suction | 1 | ||
| 55-1610 | CONNECTOR - liquid line | 1 | ||
| 66-874 | FITTING - flare | 1 | ||
| 55-145 | SCREW - plate | 2 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-4118 | LOCKNUT | 2 | ||
| 7 | 66-3796 | TUBE - 3-way to coil | 1 | |
| 8 | 55-3441 | ELBOW | 1 | |
| 9 | 66-3635 | VALVE - 3-way (see 59G11) | 1 | |
| 55-214 | SCREW - valve | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-2182 | BUSHING | 1 | ||
| 10 | 66-4873 | TUBE - discharge, compressor to manifold | 1 | |
| 11 | 66-4878 | TUBE - 3-way to solenoid | 1 | |
| 12 | 66-5020 | VALVE - check (discharge) | 1 | |
| 33-1893 | GASKET - check valve | 2 | ||
| 66-4885 | PISTON - check valve | 2 | ||
| 66-4886 | SPRING - check valve | 2 | ||
| 55-1610 | CONNECTOR | 1 | ||
| 55-5677 | SCREW - valve | 2 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-4118 | LOCKNUT | 2 | ||
| 13 | 55-1653 | ELBOW | 2 | |
| 14 | 44-5305 | SWITCH - hpco | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 15 | 66-3795 | TUBE - 3-way to manifold | 1 | |
| 16 | 66-4874 | TUBE - manifold to compressor | 1 | |
| 17 | 66-5021 | VALVE - check (suction) | 1 | |
| 55-3211 | ADAPTER (3/4 flare) | 1 | ||
| 33-1893 | GASKET - check valve | 2 | ||
| 66-4885 | PISTON - check valve | 2 | ||
| 66-4886 | SPRING - check valve | 2 | ||
| 55-5677 | SCREW - manifold | 2 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-4118 | NUT (stop) | 2 | ||
| 18 | 55-184 | TEE | 1 | |
| 19 | 44-6132 | SWITCH - lpco | 1 | |
| 33-768 | GASKET - flare | 1 | ||
| 20 | 66-4887 | TUBE - manifold to solenoid | 1 | |
| 21 | 55-4489 | ELBOW - valve | 1 | |
| 55-459 | COUPLING | 1 | ||
| 22 | 66-2009 | VALVE - pilot solenoid (12V) | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - pilot solenoid (3/8 bore) | 1 | ||
| 41-1525 | COIL - pilot solenoid (7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 66-2088 | VALVE - pilot solenoid (24V) | 1 | ||
| 41-325 | COIL - valve (3/8 bore) | 1 | ||
| 44-6158 | COIL - valve (7/16 bore) | 1 | ||
| 44-2756 | DIODE - assembly | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 55-1339 | SCREW - valve | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 55-414 | LOCKWASHER | 2 | ||
| 55-8786 | NUT - valve | 1 | ||
| 23 | 66-4879 | TUBE - hot gas line to receiver | 1 | |
| 24 | 66-5501 | VALVE - check | 1 | |
| 55-308 | ELBOW - check valve to receiver | 1 | ||
| 25 | 99-7023 | BRACKET - receiver tank (top) | 1 | |
| 55-145 | SCREW - support | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | NUT | 2 | ||
| 26 | 67-863 | TANK - receiver | 1 | |
| 55-5078 | NUT - receiver | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 27 | 66-4876 | TUBE - receiver to dehydrator | 1 | |
| 66-874 | FITTING - flare | 1 | ||
| 28 | 66-4729 | DEHYDRATOR | 1 | |
|
10-66-4729 | Дегидратор, SB-I/II/III | 3 890 ₽ |
|
| 29 | 55-1541 | ELBOW | 1 | |
| 30 | 55-308 | ELBOW | 1 | |
| 31 | 66-3105 | VALVE - suction pressure regulator | 1 | |
| 55-5293 | BUSHING - valve | 2 | ||
| 32 | 91-448 | BRACKET - u-bolt | 1 | |
| 33 | 55-4509 | U-BOLT | 1 | |
| 55-4118 | NUT - u-bolt | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 34 | 67-866 | TANK - accumulator | 1 | |
| 55-5078 | NUT - accumulator | 1 | ||
| 55-402 | FLATWASHER | 1 | ||
| 35 | 44-6865 | SWITCH - condenser fan pressure | 1 | |
| 36 | 55-1654 | TEE | 1 | |
| 37 | 91-446 | SUPPORT - receiver tank | 1 | |
| 55-145 | SCREW - support | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-4118 | NUT | 4 | ||
| 38 | 99-7673 | SUPPORT - receiver tank | 1 | |
| 39 | 55-4703 | BOLT - eye | 1 | |
| 55-411 | FLATWASHER | 1 | ||
| 55-4118 | NUT | 1 |
