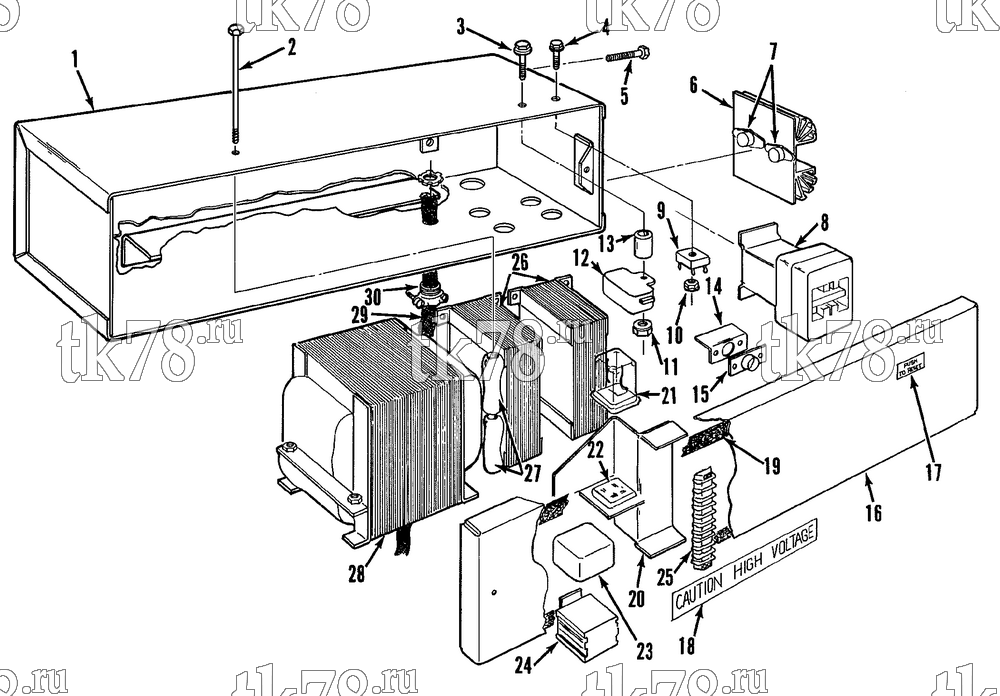

Установкa Thermo King CB-I схема HIGH VOLTAGE BOX (12V CONTROLS) – 58G9
Обновление от: 10/1/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1153 | BOX - control (complete) | 1 | ||
| 1 | 99-7032 | BOX - only | 1 | |
| 2 | 55-5199 | SCREW - resistor | 1 | |
| 55-4118 | LOCKNUT | 1 | ||
| 3 | 55-1230 | SCREW - circuit breaker | 1 | |
| 4 | 55-3239 | SCREW - rectifier | 1 | |
| 5 | 55-3506 | SCREW - ground | 1 | |
| 55-1852 | LOCKWASHER | 2 | ||
| 55-401 | FLATWASHER | 1 | ||
| 55-346 | NUT (brass) | 2 | ||
| 6 | 99-7053 | HEATSINK - rectifier | 1 | |
| 99-4976 | STRIP - gasket | 2 | ||
| 55-1510 | SCREW - heatsink | 2 | ||
| 55-5292 | LOCKNUT | 2 | ||
| 7 | 44-3280 | RECTIFIER | 2 | |
| 55-2366 | SCREW - rectifier | 4 | ||
| 55-3519 | LOCKNUT | 4 | ||
| 8 | 44-4203 | CONTACTOR - motor | 1 | |
| 44-4286 | COIL | 1 | ||
| 40-271 | KIT - points | 1 | ||
| 55-2366 | SCREW - contactor | 4 | ||
| 9 | 44-4885 | RECTIFIER | 1 | |
| 10 | 55-3519 | LOCKNUT - rectifier | 1 | |
| 11 | 55-5292 | LOCKNUT - circuit breaker | 1 | |
| 12 | 44-6146 | BREAKER - circuit | 1 | |
|
10-44-6146 | Автоматический выключатель, 40A | 2 220 ₽ |
|
| 13 | 55-5198 | SPACER | 1 | |
| 14 | 99-7039 | PLATE - boot | 1 | |
| 55-2366 | SCREW - plate | 2 | ||
| 55-3519 | LOCKNUT | 2 | ||
| 15 | 44-2119 | SEAL - pushbutton | 1 | |
| 16 | 99-7038 | COVER - high voltage box | 1 | |
| 55-538 | SCREW - cover | 2 | ||
| 55-4974 | NUT - captive (cover) | 2 | ||
| 17 | 44-2739 | NAMEPLATE - Push to Reset | 2 | |
| 18 | 99-2662 | NAMEPLATE - Caution High Voltage | 1 | |
| 19 | 99-4976 | STRIP - gasket | 4 | |
| 20 | 99-7033 | BRACKET - terminal board/relay | 1 | |
| 55-735 | SCREW - bracket | 2 | ||
| 21 | 44-3186 | RELAY - defrost | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 22 | 44-3184 | SOCKET - relay | 1 | |
| 99-2027 | SPRING - holddown | 1 | ||
| 55-2771 | CLAMP - speednut | 1 | ||
| 55-2270 | RIVET - spring | 2 | ||
| 23 | 44-6047 | RELAY - fan (1pst) | 1 | |
| 23 | 44-9391 | RELAY - fan (2pst) | 1 | |
|
10-44-9391 | Реле | 3 250 ₽ |
|
| 24 | 44-5537 | SOCKET - relay | 1 | |
| 55-759 | SCREW - socket | 1 | ||
| 55-5292 | LOCKNUT | 1 | ||
| 25 | 44-6136 | BOARD - terminal | 1 | |
| 55-1508 | SCREW - board | 2 | ||
| 55-3519 | NUT | 2 | ||
| 99-7080 | MARKSTRIP | 1 | ||
| 26 | 44-3956 | CHOKE - filter | 2 | |
| 55-736 | SCREW | 4 | ||
| 27 | 44-6134 | RESISTOR (1 ohm, 25 W) | 2 | |
| 28 | 44-6133 | TRANSFORMER (230/460V) | 1 | |
| 99-7036 | NUTSTRIP - transformer | 2 | ||
| 55-538 | SCREW - transformer | 4 | ||
| 29 | 44-6137 | HARNESS - condenser | 1 | |
| 44-6519 | CONNECTOR - wire (Nos. CF, CH) | 1 | ||
| 44-5219 | CONNECTOR - wire (Nos. 7, 7A) | 1 | ||
| 44-5620 | CONNECTOR - wire (Nos. 7A, 7B) | 1 | ||
| 30 | 99-261 | CONNECTOR - cable | 5 | |
| 44-2859 | CABLE (50 ft) | A/R | ||
| 55-141 | SCREW - box | 4 | ||
| 55-4967 | LOCKNUT | 2 |
