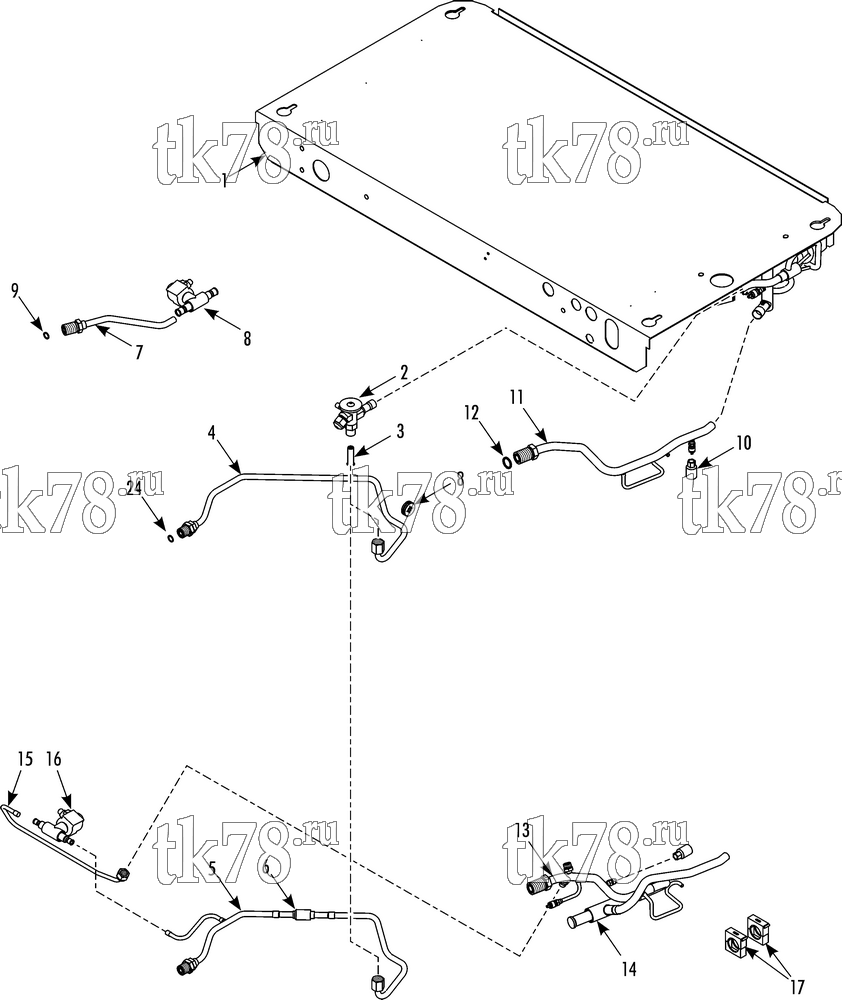

Установкa Thermo King C-250e & C-350e Series схема EVAPORATOR REFRIGERATION (ES200, w/ defrost) – 270F6
Обновление от: 8/22/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2851 | COIL - evaporator (ES200) | 1 | |
| 2 | 66-9311 | BODY - expansion valve (R134a) | 1 | |
| 66-9314 | BODY - expansion valve (R404A) | 1 | ||
|
66-9314 OEM | ТРВ, V/VM-Series MAX (R404A) | 31 890 ₽ |
|
| 203-534 | TAPE - insulating | A/R | ||
| 3 | 61-1261 | FILTER - expansion | 1 | |
| 4 | 61-5891 | TUBE - liquid | 1 | |
| 5 | 61-5808 | TUBE - liquid (R404A, MAX) | 1 | |
| 6 | 61-412 | VALVE - check | 1 | |
| 7 | 61-5877 | TUBE - hot gas (C-250e 10 & 20) | 1 | |
| 8 | 61-6110 | SOLENOID - hot gas (see 269A7) | 1 | |
| 9 | 33-1015 | O-RING - defrost (#6) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 10 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 11 | 61-5893 | TUBE - suction | 1 | |
| 12 | 33-2115 | O-RING - suction (#10) | 1 | |
| 13 | 61-5897 | TUBE - suction (MAX) | 1 | |
| 14 | 22-1073 | REGULATOR - suction pressure | 1 | |
| 15 | 61-5899 | TUBE - liquid injection (MAX units) | 1 | |
| 16 | 61-6116 | VALVE - solenoid (1/4 tube, see 269A7) | 1 | |
| 17 | 92-2805 | SADDLE - regulator | 2 |
