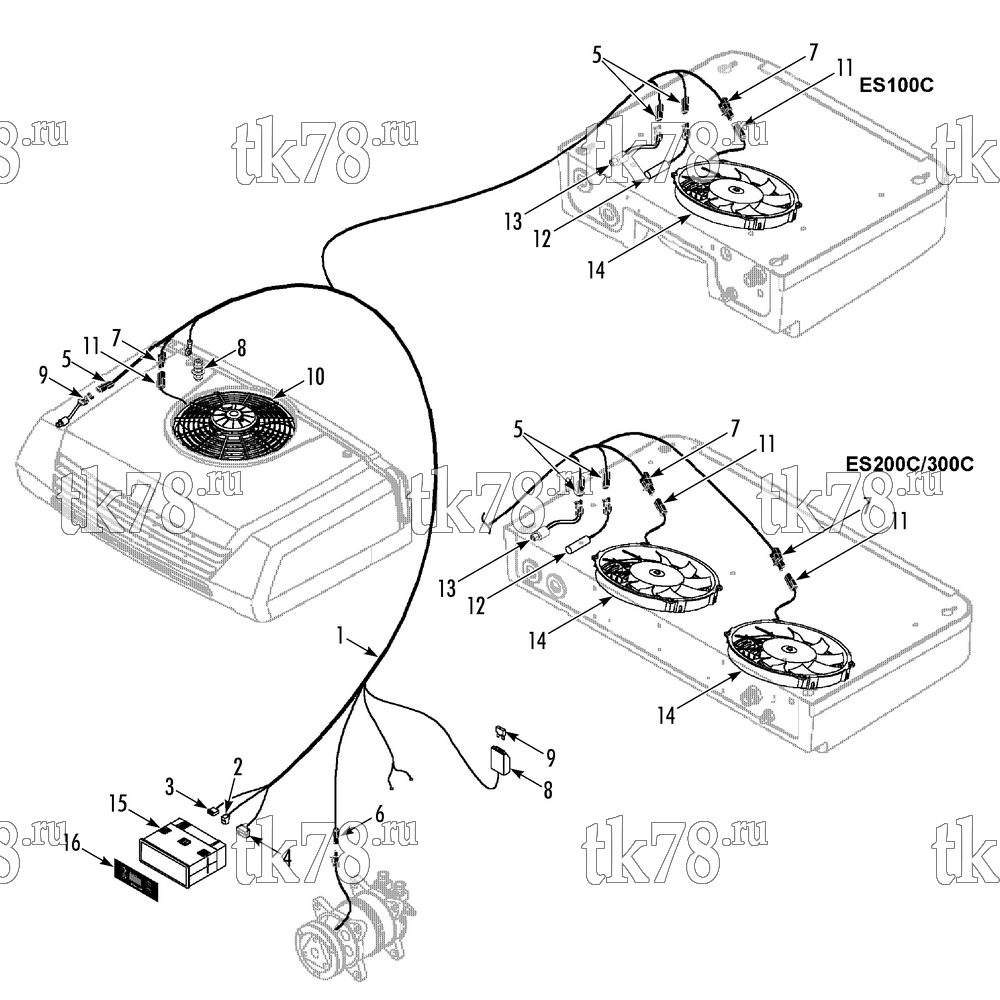

Установкa Thermo King C-100/200/300 схема ELECTRICAL COMPONENTS (Aug 05 & after) – 214D4
Обновление от: 6/20/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8126 | HARNESS - condenser | 1 | |
| 2 | 41-7271 | CONNECTOR (2-pin, use with 41-7267) | 1 | |
| 41-8127 | CONNECTOR (2-pin, use with 41-8126) | 1 | ||
| 3 | 41-7273 | CONNECTOR (4-pin) | 1 | |
| 4 | 41-7272 | CONNECTOR (5-pin, use with 41-7267) | 1 | |
| 41-8128 | CONNECTOR (5-pin, use with 41-8126) | 1 | ||
| 5 | 44-5835 | CONNECTOR - shroud (2-pin, see 115D14) | 3 | |
| 6 | 44-7330 | CONNECTOR - shroud (1-pin, see 115D14) | 1 | |
| 7 | 44-5838 | CONNECTOR - tower (2-pin, see 115D14) | 2 | |
| 44-2793 | TERMINAL - ground (1/4) | A/R | ||
| 41-363 | RECTIFIER | 1 | ||
| 8 | 55-7035 | SCREW - ground | 1 | |
| 55-7075 | FLATWASHER | 3 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 9 | 44-7992 | SWITCH - hpco | 1 | |
| 10 | 78-1185 | FAN - condenser (12V) | 1 | |
| 10-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 10 220 ₽ |
|
|
| PP-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 4 690 ₽ |
|
|
| 78-1186 | FAN - condenser (24V) | 1 | ||
|
10-78-1376 | Вентилятор конденсатора 24V, V-Series | 11 710 ₽ |
|
|
PP-78-1376 | Вентилятор конденсатора 24V, V-Series | 4 530 ₽ |
|
| 11 | 44-5835 | CONNECTOR - shroud (2 terminal) | 1 | |
| 12 | 41-5784 | SENSOR - temperature | 1 | |
| 42-3067 OEM | Датчик температуры, V/C-Series | 13 780 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V/C-Series | 9 420 ₽ |
|
|
| 13 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 14 | 78-1183 | FAN - evaporator (12V, 1 for ES100C, 2 for ES200C) | A/R | |
| 10-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 10 220 ₽ |
|
|
| P-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 10 220 ₽ |
|
|
|
PP-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 4 460 ₽ |
|
| PP-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 4 460 ₽ |
|
|
| 78-1374 | FAN - evaporator (24V, 1 for ES100C, 2 for ES200C) | A/R | ||
| 10-78-1374 | Вентилятор испарителя 24V, V/C-Series | 9 820 ₽ |
|
|
|
PP-78-1374 | Вентилятор испарителя 24V, V/C-Series | 5 470 ₽ |
|
| 15 | 45-2141 | CONTROLLER - in-cab (M-15 II, 12V) | 1 | |
| 45-2142 | CONTROLLER - in-cab (M-15 II, 24V) | 1 | ||
| 41-4551 | FUSE (5 amp, 12V controller) | 1 | ||
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-4553 | FUSE (10 amp, 12V controller) | 2 | ||
| 41-4554 | FUSE (15 amp, 12V controller) | 1 | ||
| 41-3077 | FUSE (3 amp, 24V controller) | 1 | ||
| 30-41-3077 | Предохранитель 32V 3А | 520 ₽ |
|
|
| 41-4551 | FUSE (5 amp, 24V controller) | 2 | ||
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-4552 | FUSE (7.5 amp, 24V controller) | 1 | ||
| 30-41-4552 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 16 | 92-5730 | FACE - controller | 1 | |
| 17 | 41-5785 | HOLDER - fuse | 1 | |
| 18 | 41-7275 | FUSE (30 amp, 12V system) | 1 | |
| 41-7286 | FUSE (20 amp, 24V system) | 1 |
