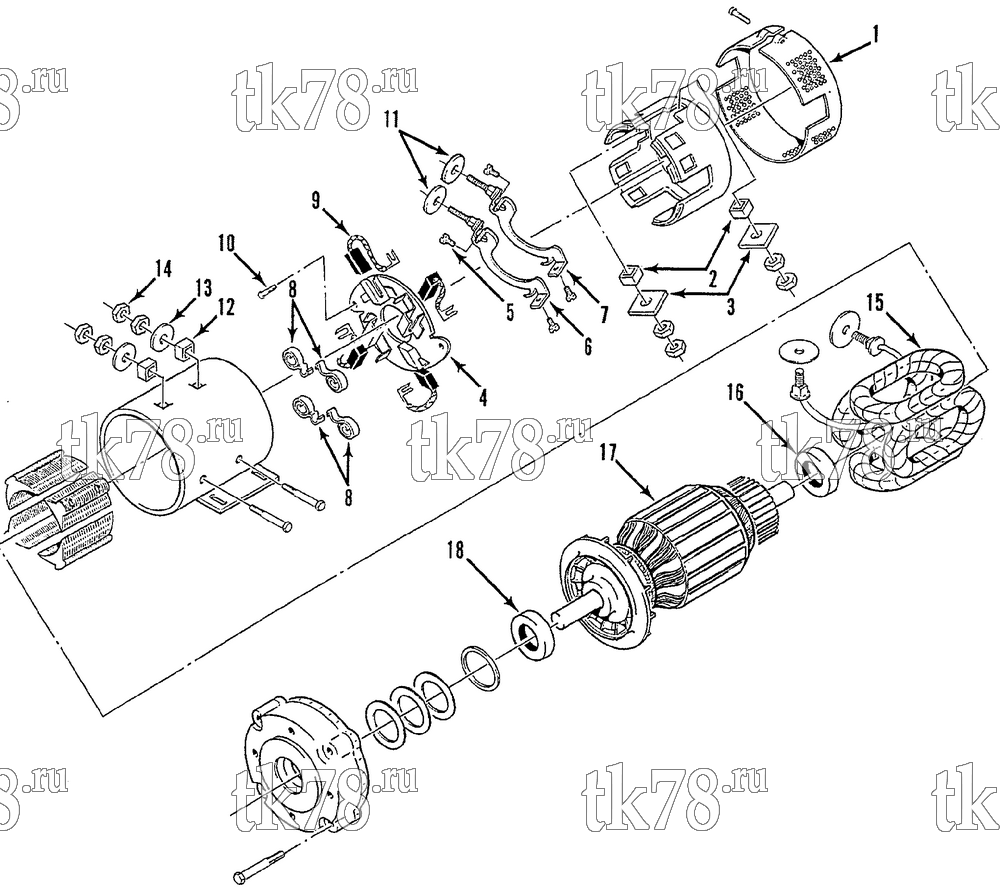

Установкa Thermo King Bus Motors Assemblies схема MOTOR ASSEMBLY 104-656 – 76G7
Обновление от: 4/23/99
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 104-656 | MOTOR - evaporator blower | 1 | ||
| 1 | 44-7239 | COVER - brush | 1 | |
| 2 | 44-7240 | BUSHING - insulation (for A1 & A2 studs) | 2 | |
| 3 | 44-7241 | WASHER - insulation (for terminal studs) | 2 | |
| 4 | 44-7238 | BRUSH RIGGING & PARTS (incl 5, 6, 7 & 8) | 1 | |
| 5 | 55-5882 | SCREW - brush | 4 | |
| 6 | 41-634 | CROSSOVER & STUD (A1) | 1 | |
| 7 | 44-7235 | CROSSOVER & STUD (A2) | 1 | |
| 8 | 44-7221 | SPRING - brush | 4 | |
| 9 | 44-4435 | BRUSH & PARTS | 4 | |
| 10 | 55-5881 | SCREW - brush ring | 2 | |
| 11 | 44-7242 | WASHER - insulation (for terminal studs) | 6 | |
| 12 | 44-7244 | WASHER - insulation (for field studs) | 4 | |
| 13 | 44-7243 | WASHER - insulation (for terminal studs) | 4 | |
| 14 | 55-5880 | NUT - terminal stud | 12 | |
| 15 | 44-7237 | FIELD - coil (set) | 1 | |
| 16 | 77-1106 | BEARING (brush end) | 1 | |
| 17 | 44-7516 | ARMATURE (less bearings) | 1 | |
| 18 | 77-1498 | BEARING (opposite brush end) | 1 | |
| 99-9063 | PLUG (rubber, replaces steel band) | 4 | ||
| 99-9064 | PLUG (plastic, replaces steel band) | 4 |
