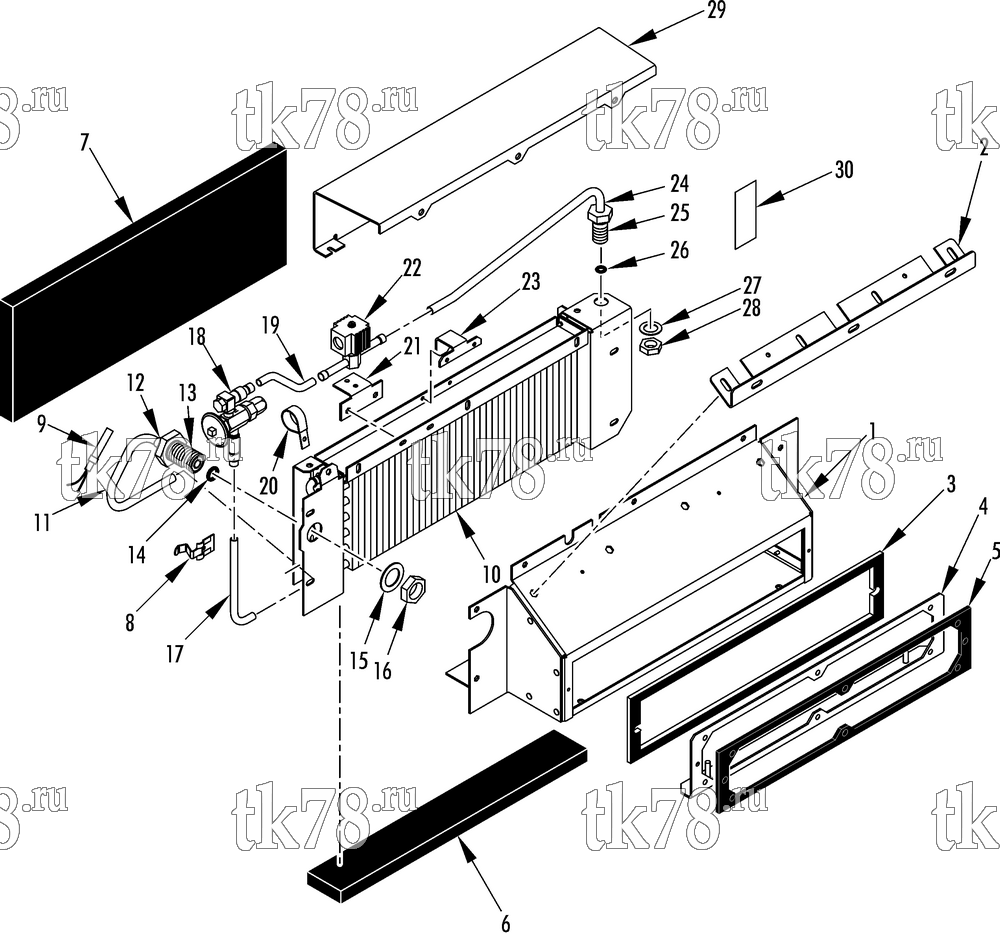

Установкa Thermo King Bus Hybrid Battery Cooler Evaporator Units схема BATTERY COOLER (R22 & R407c, KIT 700912) – 222B2
Обновление от: 9/20/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7804 | FRAME - battery cooler | 1 | |
| 55-8711 | INSERT (1/4-20) | 4 | ||
| 2 | 92-6272 | BRACKET - top | 1 | |
| 55-2957 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-8711 | INSERT (1/4-20) | 4 | ||
| 3 | 33-4376 | GASKET - air outlet | 1 | |
| 4 | 92-6273 | BRACKET - unit mounting | 1 | |
| 5 | 33-4377 | GASKET - unit mounting | 1 | |
| 6 | 33-3957 | INSULATION - coil | 1 | |
| 7 | 11-9951 | FILTER - air | 1 | |
| 8 | 51-1112 | FASTENER - snap | 1 | |
| 55-3136 | RIVET - fastener | 1 | ||
| 9 | 41-7706 | SENSOR - temp | 1 | |
| 55-2332 | BANDWRAP - sensor | 2 | ||
| 10 | 67-2308 | COIL - evaporator | 1 | |
| 55-3027 | SCREW - coil | 9 | ||
| 55-2964 | LOCKWASHER | 9 | ||
| 55-2001 | FLATWASHER | 9 | ||
| 55-8752 | INSERT | 9 | ||
| 11 | 61-4398 | TUBE - suction assembly | 1 | |
| 61-2669 | TUBE - suction | 1 | ||
| 12 | 55-1804 | BUSHING | 2 | |
| 13 | 55-7064 | ADAPTER - bulkhead (#10, ORS) | 1 | |
| 14 | 33-1223 | O-RING (9/16 id) | 1 | |
| 15 | 55-6843 | LOCKWASHER | 1 | |
| 16 | 55-6811 | NUT - bulkhead (1-14) | 1 | |
| 17 | 61-3976 | TUBE - expansion valve to coil | 1 | |
| 18 | 61-2725 | VALVE - expansion | 1 | |
| 61-818 | ELEMENT | 1 | ||
| 19 | 61-3977 | TUBE - solenoid to expansion valve | 1 | |
| 20 | 55-9310 | CLAMP - tube (1.125 in dia) | 1 | |
| 55-3027 | SCREW - clamp | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-8752 | INSERT | 1 | ||
| 21 | 92-6274 | BRACKET - solenoid valve | 1 | |
| 55-3027 | SCREW - bracket | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-8752 | INSERT | 2 | ||
| 22 | 41-6028 | VALVE - solenoid | 1 | |
| 44-7553 | COIL - valve (24V) | 1 | ||
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 23 | 92-4228 | BRACKET - filter, top | 1 | |
| 55-5136 | RIVET - bracket | 2 | ||
| 24 | 61-4454 | TUBE - assembly ors to valve | 1 | |
| 61-3978 | TUBE - liquid, ORS fitting | 1 | ||
| 25 | 51-873 | ADAPTER - bulkhead (#6, ORS) | 1 | |
| 26 | 33-1015 | O-RING (3/8 id) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 27 | 55-9147 | LOCKWASHER (0.72 id) | 1 | |
| 28 | 55-6780 | NUT - bulkhead (11/16-18) | 1 | |
| 29 | 98-7805 | COVER - top | 1 | |
| 30 | 92-6275 | NAMEPLATE - Unit Compatible with R22 or R134a | 1 |
