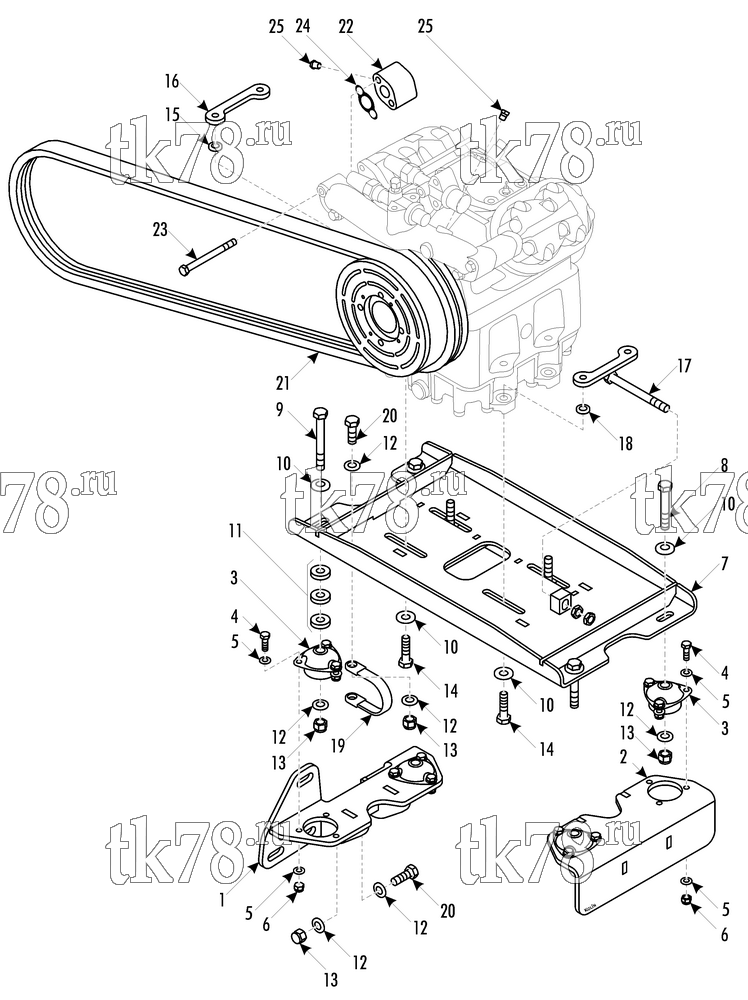

Установкa Thermo King Bus Drive Kits схема DRIVE KIT 700679 - IVECO EURORIDER, X430 – 229B3
Обновление от: 9/14/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2103 | HOLDER - side | 1 | |
| 2 | 108-1976 | HOLDER - side | 1 | |
| 3 | 92-2963 | SILENTBLOCK | 4 | |
| 4 | 55-5424 | SCREW - silentblock | 12 | |
| 5 | 55-7069 | FLATWASHER | 24 | |
| 6 | 51-1114 | NUT | 12 | |
| 7 | 108-2609 | PLATE - compressor | 1 | |
| 8 | 108-1596 | SCREW - plate | 2 | |
| 9 | 55-7168 | SCREW - plate | 2 | |
| 10 | 51-145 | WASHER - conical | 8 | |
| 11 | 92-4471 | SPACER | 6 | |
| 12 | 55-5914 | FLATWASHER | 8 | |
| 13 | 51-143 | NUT | 6 | |
| 14 | 51-1115 | SCREW | 4 | |
| 15 | 55-399 | WASHER | 4 | |
| 16 | 92-4472 | PLATE - threaded | 1 | |
| 17 | 92-4473 | TENSIONING - assy | 1 | |
| 18 | 55-9871 | NUT | 2 | |
| 19 | 92-4344 | STRAP - ground | 1 | |
| 20 | 51-140 | SCREW - ground strap | 2 | |
| 21 | 108-2056 | BELT | 1 | |
| 22 | 108-1718 | ADAPTER | 2 | |
| 23 | 55-1735 | SCREW- adapter | 4 | |
| 24 | 33-2805 | GASKET | 2 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 25 | 55-3364 | PLUG | 2 |
