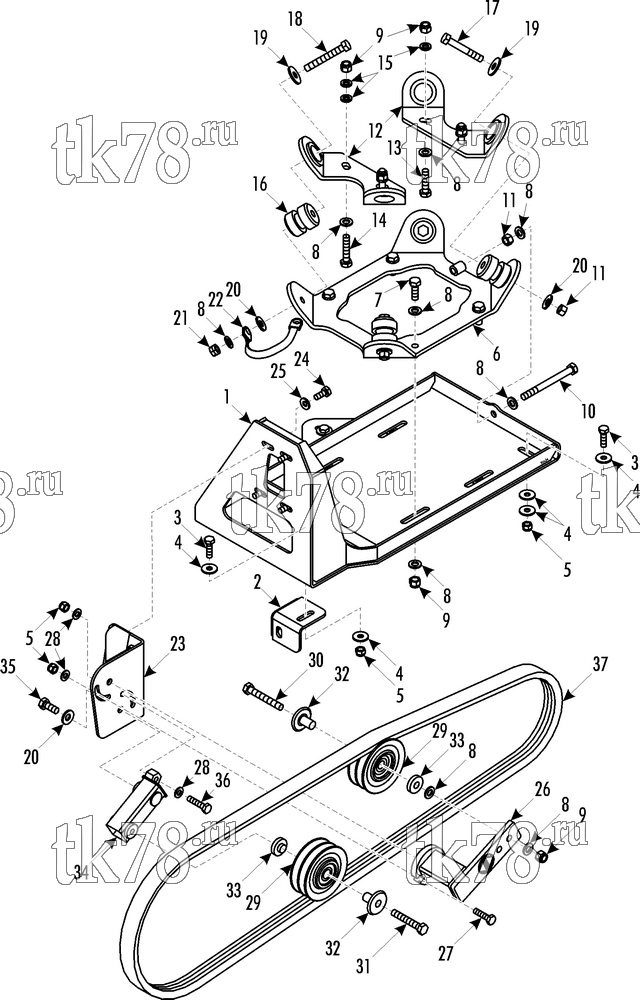

Установкa Thermo King Bus Drive Kits схема DRIVE KIT 701105 - VOLVO B9LE, X430 – 227F6
Обновление от: 2/6/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2592 | BRACKET - assembly | 1 | |
| 2 | 108-2593 | REINFORCEMENT - assembly | 1 | |
| 3 | 55-4680 | SCREW - bracket & reinforcement | 4 | |
| 4 | 108-1591 | FLATWASHER | 10 | |
| 5 | 51-1086 | NUT | 6 | |
| 6 | 108-2594 | SUPPORT | 1 | |
| 7 | 51-140 | SCREW - support | 4 | |
| 8 | 55-5914 | FLATWASHER | 17 | |
| 9 | 51-143 | NUT | 9 | |
| 10 | 108-2320 | SCREW | 1 | |
| 11 | 55-8471 | NUT | 4 | |
| 12 | 108-2344 | SUPPORT - compressor | 2 | |
| 13 | 108-1745 | SCREW | 3 | |
| 14 | 108-1930 | SCREW | 1 | |
| 15 | 55-399 | WASHER | 5 | |
| 16 | 108-2343 | MOUNT - vibration | 4 | |
| 17 | 55-7023 | SCREW - mount | 3 | |
| 18 | 55-7001 | SCREW - mount | 1 | |
| 19 | 108-1746 | FLATWASHER | 4 | |
| 20 | 51-145 | WASHER - conical | 5 | |
| 21 | 55-7003 | NUT | 1 | |
| 22 | 92-4344 | STRAP - ground | 1 | |
| 23 | 108-2595 | BRACKET - rosta | 1 | |
| 24 | 55-5579 | SCREW - bracket | 4 | |
| 25 | 51-144 | WASHER - conical | 4 | |
| 26 | 51-1089 | ROSTA | 1 | |
| 27 | 55-5427 | SCREW | 1 | |
| 28 | 55-7072 | FLATWASHER | 3 | |
| 29 | 108-2112 | PULLEY - complete | 2 | |
| 108-2113 | PULLEY | 2 | ||
| 108-1603 | BEARING | 4 | ||
| 51-778 | RING | 2 | ||
| 55-5663 | RING - retain | 2 | ||
| 30 | 51-1087 | SCREW - pulley | 1 | |
| 31 | 108-2591 | SCREW - pulley | 1 | |
| 32 | 108-2114 | SPACER | 2 | |
| 33 | 108-2115 | SPACER | 2 | |
| 34 | 108-2590 | ARM - assembly, tension | 1 | |
| 35 | 55-6836 | SCREW - arm | 1 | |
| 36 | 55-6279 | SCREW - arm | 1 | |
| 37 | 108-2189 | BELT | 1 |
