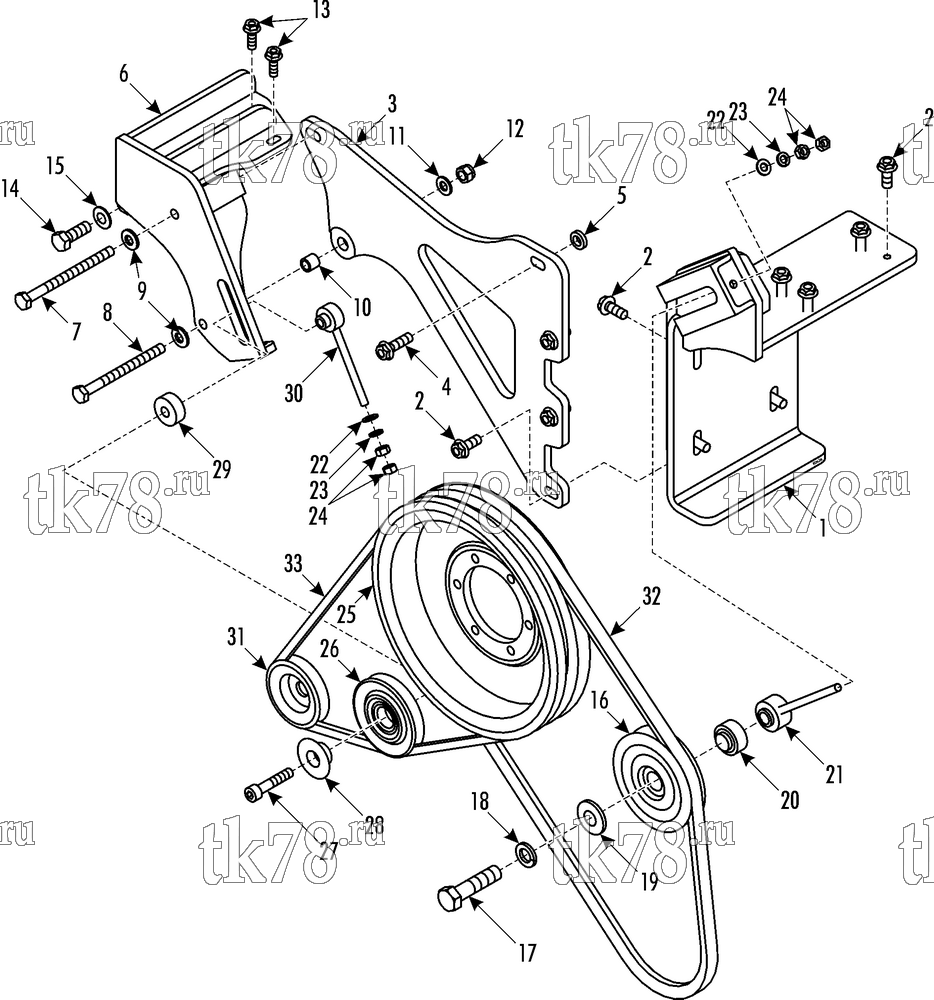

Установкa Thermo King Bus Drive Kits схема DRIVE KIT 700382 - MAN 12.240 (bus chassis), TM31 – 227F4
Обновление от: 2/6/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2572 | BRACKET - assembly, compressor | 1 | |
| 2 | 51-239 | BOLT | 11 | |
| 3 | 108-2575 | PLATE - front | 1 | |
| 4 | 108-2568 | BOLT | 1 | |
| 5 | 108-2569 | SPACER | 1 | |
| 6 | 108-2576 | BRACKET - assembly, alternator | 1 | |
| 7 | 108-2577 | SCREW - bracket | 1 | |
| 8 | 108-2578 | SCREW - bracket | 1 | |
| 9 | 51-144 | WASHER - conical | 2 | |
| 10 | 108-2579 | BUSHING | 1 | |
| 11 | 55-7072 | FLATWASHER | 1 | |
| 12 | 51-1086 | NUT | 1 | |
| 13 | 108-2580 | BOLT - bracket | 2 | |
| 14 | 51-140 | SCREW - bracket | 1 | |
| 15 | 51-1113 | WASHER - belleville | 1 | |
| 16 | 77-2808 | PULLEY - complete | 1 | |
| 108-1583 | PULLEY | 1 | ||
| 108-2229 | BEARING | 1 | ||
| 55-7437 | RING - retain | 1 | ||
| 17 | 108-1834 | SCREW - pulley | 1 | |
| 18 | 108-1714 | LOCKWASHER | 1 | |
| 19 | 92-4366 | SPACER | 1 | |
| 20 | 92-4365 | INSERT | 1 | |
| 21 | 92-4367 | ROD - tension | 1 | |
| 22 | 55-7069 | FLATWASHER | 2 | |
| 23 | 55-7727 | LOCKWASHER | 2 | |
| 24 | 55-4621 | NUT | 4 | |
| 25 | 108-2581 | PULLEY | 1 | |
| 26 | 108-2582 | PULLEY - complete | 1 | |
| 108-2583 | PULLEY | 1 | ||
| 77-2711 | BEARING | 1 | ||
| 55-2672 | RING - retain | 1 | ||
| 27 | 55-4559 | SCREW - pulley | 1 | |
| 28 | 108-2584 | INSERT | 1 | |
| 29 | 108-2585 | SPACER | 1 | |
| 30 | 108-2586 | ROD - tension | 1 | |
| 31 | 108-2587 | PULLEY | 1 | |
| 32 | 78-1379 | BELT | 1 | |
| 33 | 108-2588 | BELT | 1 |
