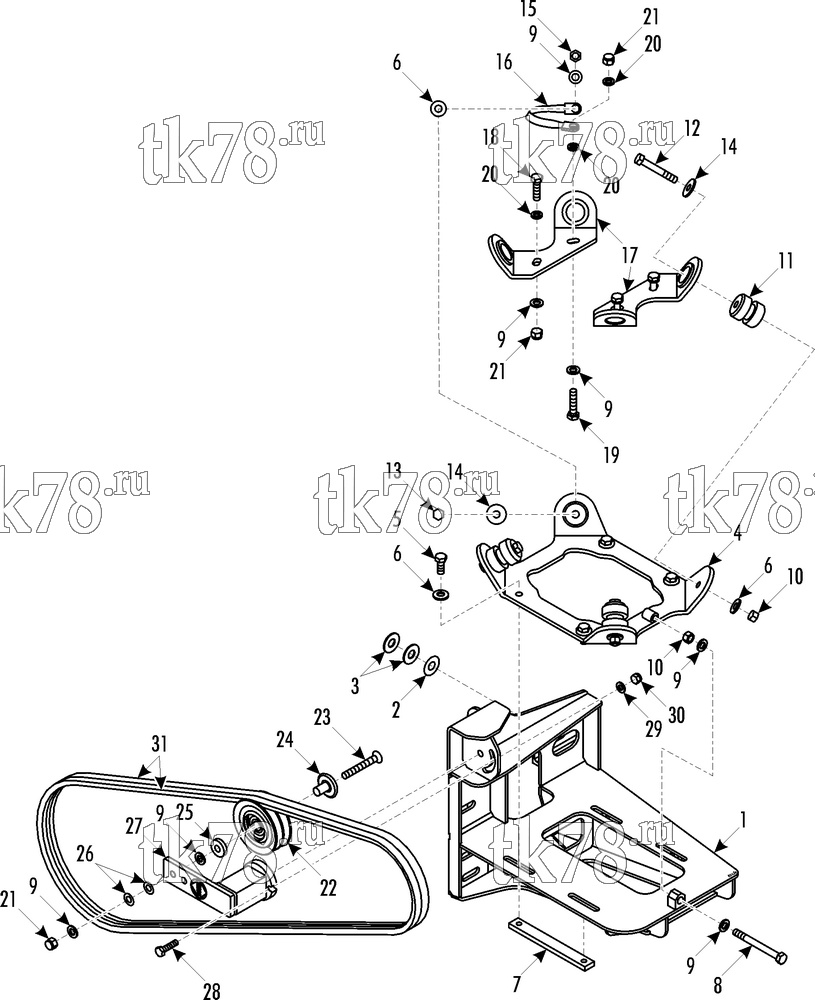

Установкa Thermo King Bus Drive Kits схема DRIVE KIT 701166 - VOLVO B9R, X430 – 227F1
Обновление от: 9/14/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2559 | BASE - assembly | 1 | |
| 2 | 108-2560 | SPACER - base to frame | 1 | |
| 3 | 108-2561 | SPACER - base to frame | 2 | |
| 4 | 108-2594 | SUPPORT | 1 | |
| 5 | 51-140 | SCREW - support to base | 4 | |
| 6 | 51-145 | WASHER - conical | 8 | |
| 7 | 108-1986 | PLATE - threaded | 2 | |
| 8 | 55-7571 | SCREW - tension | 1 | |
| 9 | 55-5914 | FLATWASHER | 9 | |
| 10 | 55-8471 | NUT | 4 | |
| 11 | 108-2343 | MOUNT - vibration | 4 | |
| 12 | 55-7023 | SCREW - mount | 3 | |
| 13 | 55-7001 | SCREW - mount | 1 | |
| 14 | 108-1746 | FLATWASHER | 4 | |
| 15 | 55-7003 | NUT | 1 | |
| 16 | 92-4344 | STRAP - ground | 1 | |
| 17 | 108-2344 | SUPPORT - compressor | 2 | |
| 18 | 51-1115 | SCREW - compressor to support | 3 | |
| 19 | 108-2069 | SCREW - support to compressor | 1 | |
| 20 | 55-399 | WASHER | 5 | |
| 21 | 51-143 | NUT | 5 | |
| 22 | 108-2112 | PULLEY - complete | 1 | |
| 108-2113 | PULLEY | 1 | ||
| 108-1603 | BEARING | 2 | ||
| 51-778 | RING | 1 | ||
| 55-5663 | RING - retaining | 1 | ||
| 23 | 108-2121 | SCREW - pulley | 1 | |
| 24 | 108-2122 | SPACER - pulley | 1 | |
| 25 | 108-2115 | SPACER - pulley | 1 | |
| 26 | 77-2819 | SPACER - pulley | 2 | |
| 27 | 51-1089 | ROSTA | 1 | |
| 28 | 55-5427 | SCREW - ROSTA position | 1 | |
| 29 | 55-7072 | FLATWASHER | 1 | |
| 30 | 51-1086 | NUT | 1 | |
| 31 | 108-2120 | BELT | 1 |
