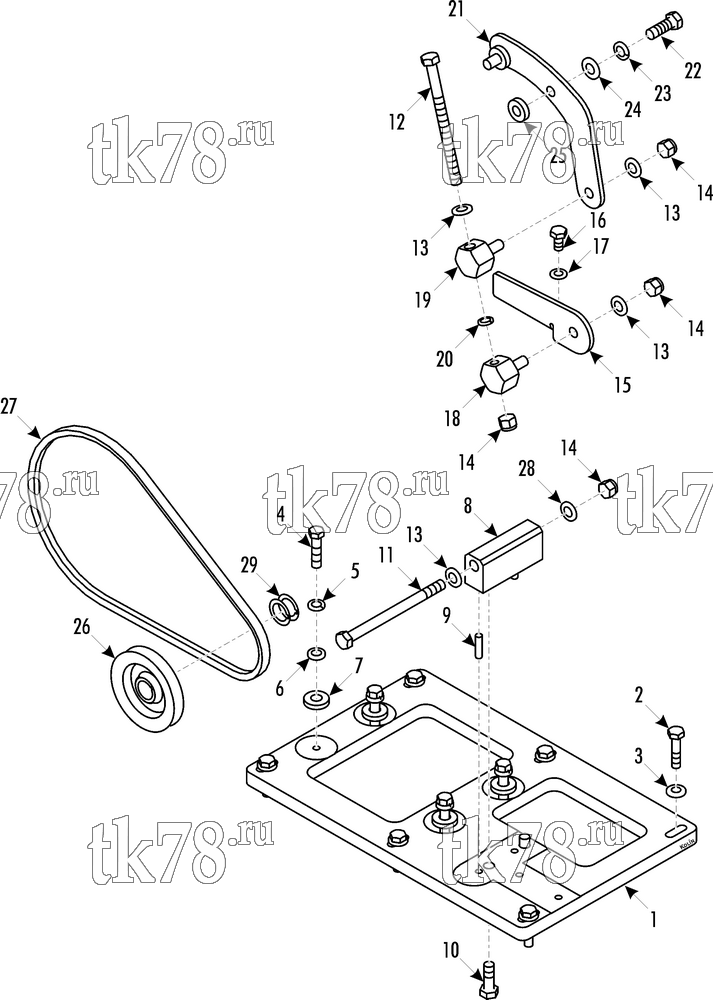

Установкa Thermo King Bus Drive Kits схема DRIVE KIT 700330 - BRENDAMENARINI M240-M340 – 224D7
Обновление от: 9/14/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2440 | PLATE - main | 1 | |
| 2 | 55-6279 | SCREW - plate | 6 | |
| 3 | 51-144 | WASHER | 6 | |
| 4 | 55-4787 | SCREW - compressor to plate | 4 | |
| 5 | 55-364 | LOCKWASHER | 4 | |
| 6 | 55-399 | WASHER | 4 | |
| 7 | 108-2441 | SPACER | 4 | |
| 8 | 108-2442 | BRACKET - alternator | 1 | |
| 9 | 108-2443 | PIN-DOWEL - bracket | 2 | |
| 10 | 108-2556 | SCREW - bracket | 2 | |
| 11 | 108-2557 | SCREW - bracket | 1 | |
| 12 | 51-229 | SCREW | 1 | |
| 13 | 55-5914 | FLATWASHER | 4 | |
| 14 | 51-143 | NUT | 4 | |
| 15 | 108-2444 | HINGE - alternator tension | 1 | |
| 16 | 55-5969 | SCREW - hinge | 2 | |
| 17 | 108-1614 | WASHER | 2 | |
| 18 | 108-2171 | NUT | 1 | |
| 19 | 108-2170 | NUT | 1 | |
| 20 | 55-5006 | LOCKWASHER | 1 | |
| 21 | 108-2169 | LEVER - alternator tension | 1 | |
| 22 | 55-2252 | SCREW - lever | 2 | |
| 23 | 56-365 | LOCKWASHER | 2 | |
| 24 | 55-2038 | FLATWASHER | 2 | |
| 25 | 108-2445 | SPACER | 2 | |
| 26 | 108-2446 | PULLEY - alternator | 1 | |
| 27 | 108-2447 | BELT | 1 | |
| 28 | 108-2558 | FLATWASHER | 1 | |
| 29 | 108-2980 | SPACER | 2 |
